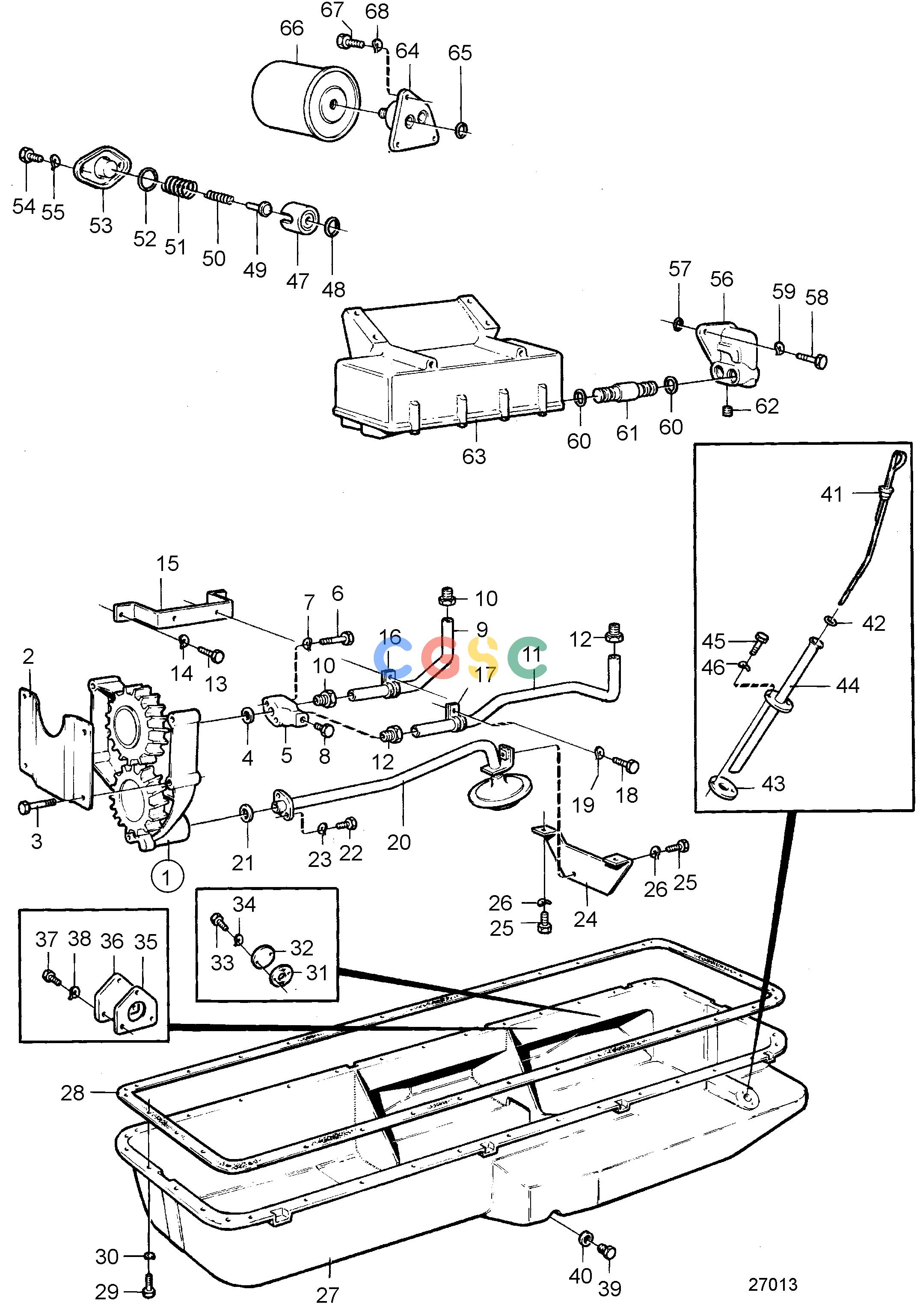

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EEngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
466530
|
[1] |
Oil pump
|
|
| 2. |
421404
|
[1] |
Baffle
|
|
| 3. |
955538
|
[4] |
Hexagon screw
|
|
| 4. |
925060
|
[1] |
O-ring
|
|
| 5. |
466880
|
[1] |
Flange
|
|
| 6. |
959794
|
[2] |
Hexagon screw
|
|
| 7. |
941907
|
[2] |
Spring washer
|
|
| 8. |
925076
|
[1] |
O-ring
|
|
| 9. |
466882
|
[1] |
Tube
|
|
| 10. |
466906
|
[2] |
Fitting
|
|
| 11. |
844273
|
[1] |
Delivery pipe
|
|
| 12. |
466905
|
[2] |
Fitting
|
|
| 13. |
955523
|
[2] |
Hexagon screw
|
|
| 14. |
941907
|
[2] |
Spring washer
|
|
| 15. |
843666
|
[1] |
Bracket
|
|
| 16. |
949747
|
[1] |
Clamp
|
|
| 17. |
949746
|
[1] |
Clamp
|
|
| 18. |
955523
|
[2] |
Hexagon screw
|
|
| 19. |
941907
|
[2] |
Spring washer
|
|
| 20. |
843558
|
[1] |
Suction pipe
|
|
| 21. |
949658
|
[1] |
O-ring
|
|
| 22. |
955531
|
[2] |
Hexagon screw
|
|
| 23. |
941907
|
[2] |
Spring washer
|
|
| 24. |
843559
|
[1] |
Bracket
|
|
| 25. |
955523
|
[3] |
Hexagon screw
|
|
| 26. |
941907
|
[3] |
Spring washer
|
|
| 27. |
843560
|
[1] |
Oil sump
|
|
| 28. |
424601
|
[1] |
Gasket
|
|
| 29. |
955525
|
[36] |
Hexagon screw
|
|
| 30. |
941907
|
[36] |
Spring washer
|
|
| 31. |
837964
|
[1] |
Gasket
|
|
| 32. |
842006
|
[1] |
Flange
|
|
| 33. |
940094
|
[2] |
Hexagon screw
|
|
| 34. |
941906
|
[2] |
Spring washer
|
|
| 35. |
842928
|
[1] |
Gasket
|
|
| 36. |
842927
|
[1] |
Seal flange
|
|
| 37. |
955525
|
[3] |
Hexagon screw
|
|
| 38. |
941907
|
[3] |
Spring washer
|
|
| 39. |
192538
|
[1] |
Magnetic plug
|
|
| 40. |
957185
|
[1] |
Gasket
|
|
| 41. |
842007
|
[1] |
Oil dipstick
|
|
| 42. |
955982
|
[1] |
O-ring
|
|
| 43. |
837964
|
[1] |
Gasket
|
|
| 44. |
843572
|
[1] |
Tube
|
|
| 45. |
940094
|
[2] |
Hexagon screw
|
|
| 46. |
941906
|
[2] |
Spring washer
|
|
| 47. |
469468
|
[1] |
Valve seat
|
|
| 48. |
469846
|
[1] |
Sealing ring
|
|
| 49. |
471085
|
[1] |
Valve cone
|
|
| 50. |
466445
|
[1] |
Spring
|
|
| 51. |
470291
|
[1] |
Compression spring
|
|
| 52. |
949658
|
[1] |
O-ring
|
|
| 53. |
469465
|
[1] |
Cover
|
|
| 54. |
955512
|
[2] |
Hexagon screw
|
|
| 55. |
941906
|
[2] |
Spring washer
|
|
| 56. |
466751
|
[1] |
Housing
|
|
| 57. |
949656
|
[2] |
O-ring
|
|
| 58. |
940115
|
[2] |
Hexagon screw
|
|
| 59. |
942336
|
[2] |
Spring washer
|
|
| 60. |
471387
|
[2] |
Sealing ring
|
See group 2B
|
| 61. |
471386
|
[2] |
Tube
|
|
| 62. |
968145
|
[2] |
Plug
|
|
| 63. |
|
|
|
See group 2B
|
| 64. |
843874
|
[1] |
Housing
|
|
| 65. |
949656
|
[2] |
O-ring
|
|
| 66. |
471034
|
[1] |
Oil filter
|
|
| 67. |
940115
|
[3] |
Hexagon screw
|
|
| 68. |
942336
|
[3] |
Spring washer
|
|
