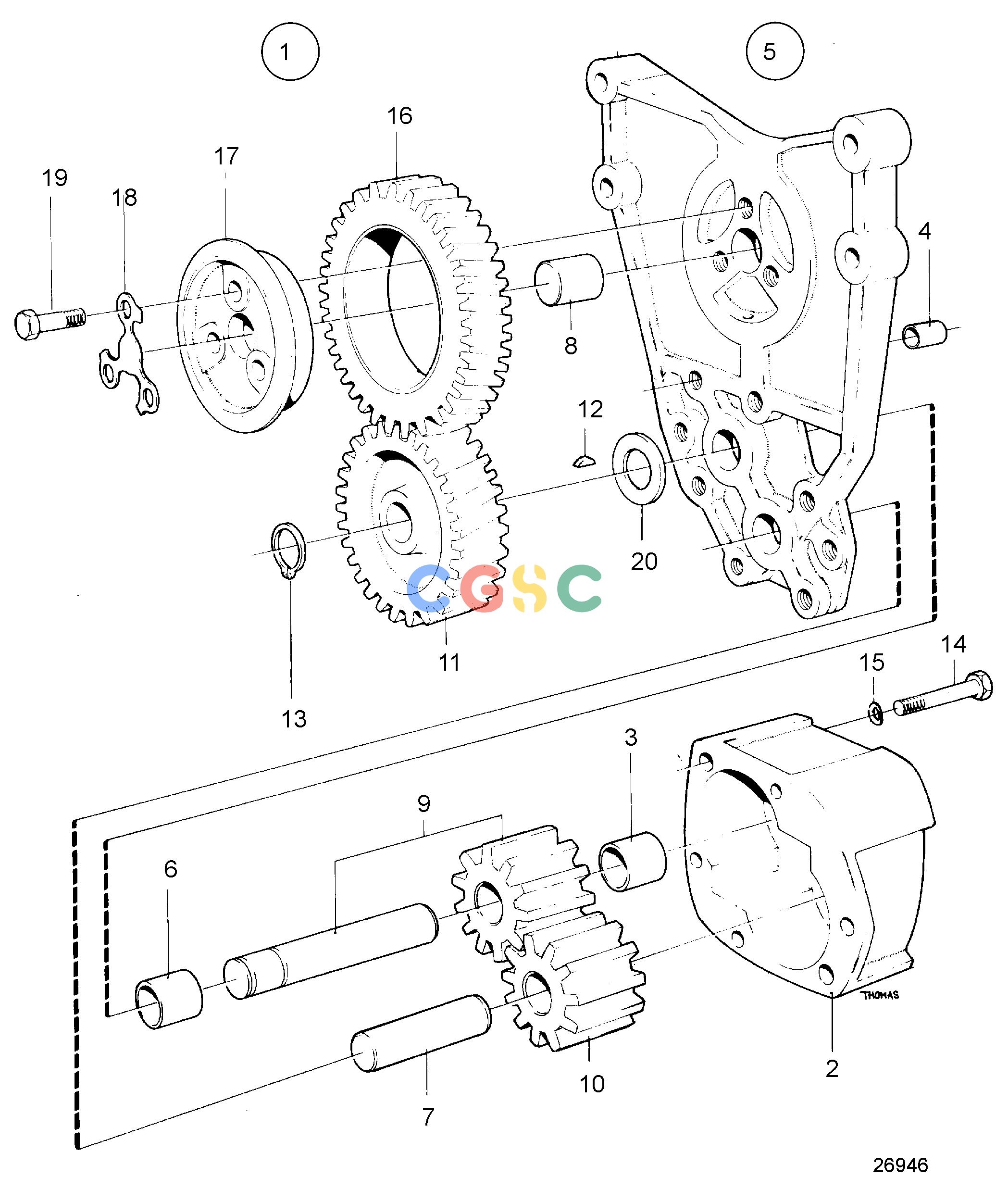

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EEngineOil PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
681 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
466530
|
[1] |
Oil pump
|
|
| 2. |
|
|
|
|
| 3. |
470234
|
[1] |
Bushing
|
|
| 4. |
401146
|
[2] |
Guide sleeve
|
|
| 5. |
466531
|
[1] |
Bracket
|
|
| 6. |
470234
|
[1] |
Bushing
|
|
| 7. |
466532
|
[1] |
Pin
|
|
| 8. |
191171
|
[1] |
Pin
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
469177
|
[1] |
Gear
|
|
| 12. |
910115
|
[1] |
Woodruff key
|
|
| 13. |
|
|
|
|
| 14. |
955528
|
[2] |
Hexagon screw
|
|
| 15. |
941907
|
[2] |
Spring washer
|
|
| 16. |
421046
|
[1] |
Idler gear
|
|
| 17. |
420048
|
[1] |
Bearing sleeve
|
|
| 18. |
421076
|
[1] |
Lock washer
|
|
| 19. |
940186
|
[3] |
Hexagon screw
|
|
| 20. |
424133
|
[1] |
Washer
|
|
| 20. |
275715
|
[1] |
Repair kit
|
|
