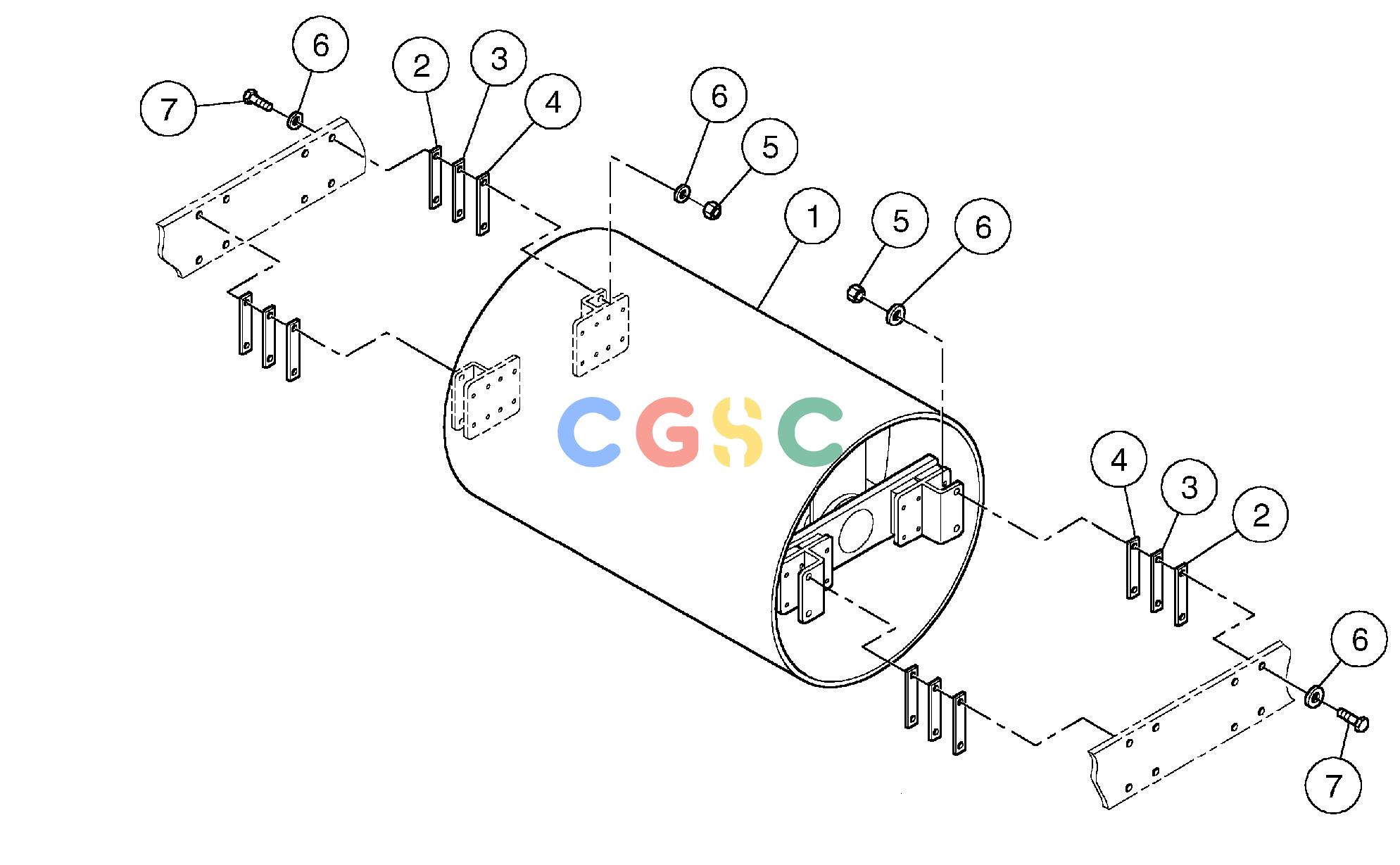

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | [2] | Drum assembly | ||
| 2. | RM58955188 | [4] | Shim | |
| 3. | RM58955196 | [4] | Shim | |
| 4. | RM58955204 | [4] | Shim | |
| 5. | VOE983312 | [8] | Hexagon nut | |
| 6. | RM96702642 | [16] | Plain washer | |
| 7. | RM96712716 | [8] | Hexagon screw |
广数供应链运营团队, 14 02月, 2025，浏览： 977 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | [2] | Drum assembly | ||
| 2. | RM58955188 | [4] | Shim | |
| 3. | RM58955196 | [4] | Shim | |
| 4. | RM58955204 | [4] | Shim | |
| 5. | VOE983312 | [8] | Hexagon nut | |
| 6. | RM96702642 | [16] | Plain washer | |
| 7. | RM96712716 | [8] | Hexagon screw |
