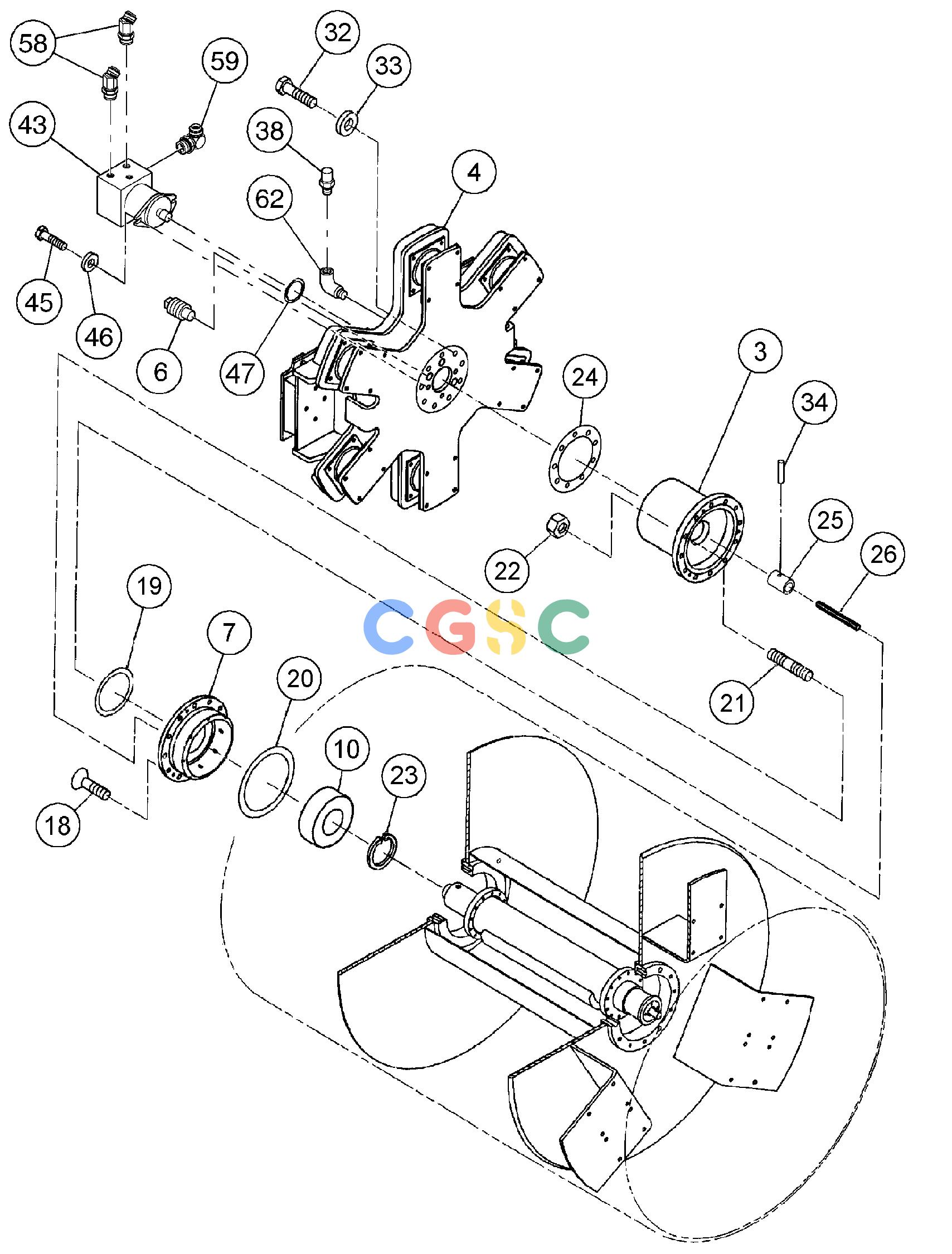

沃尔沃零件查询DD146HF Drum AssemblyS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
|
[1] |
Carrier and Spindle
|
|
| 4. |
|
[1] |
carrier Plate Assembly
|
|
| 6. |
RM59600593
|
[5] |
Tube plug
|
|
| 7. |
RM59036038
|
[1] |
Bearing cover
|
|
| 10. |
RM58880360
|
[2] |
Bearing
|
|
| 18. |
RM96715206
|
[3] |
Hex. socket sunk screw
|
|
| 19. |
RM95989026
|
[1] |
O-ring
|
|
| 20. |
RM95989067
|
[2] |
O-ring
|
|
| 21. |
RM59650648
|
[12] |
Stud
|
|
| 22. |
RM58994625
|
[12] |
Wheel nut
|
|
| 23. |
RM95454914
|
[1] |
Retaining ring
|
|
| 24. |
RM59622217
|
[1] |
Gasket
|
|
| 25. |
RM59613612
|
[1] |
Coupling piece
|
|
| 26. |
RM59622191
|
[1] |
Shaft
|
|
| 32. |
RM95335386
|
[9] |
Hexagon screw
|
|
| 33. |
RM58770702
|
[9] |
Plain washer
|
|
| 34. |
RM95492500
|
[1] |
Spring pin
|
|
| 38. |
RM59093351
|
[1] |
Venting
|
|
| 43. |
RM43844851
|
[1] |
Hydraulic motor
|
|
| 45. |
VOE983720
|
[2] |
Hexagon screw
|
|
| 46. |
RM96738596
|
[2] |
Plain washer
|
|
| 47. |
RM95988739
|
[1] |
O-ring
|
|
| 58. |
RM59922336
|
[2] |
Adapter
|
|
| 59. |
RM95303350
|
[1] |
Tooth adapter
|
|
| 62. |
RM95279998
|
[1] |
Elbow
|
|
