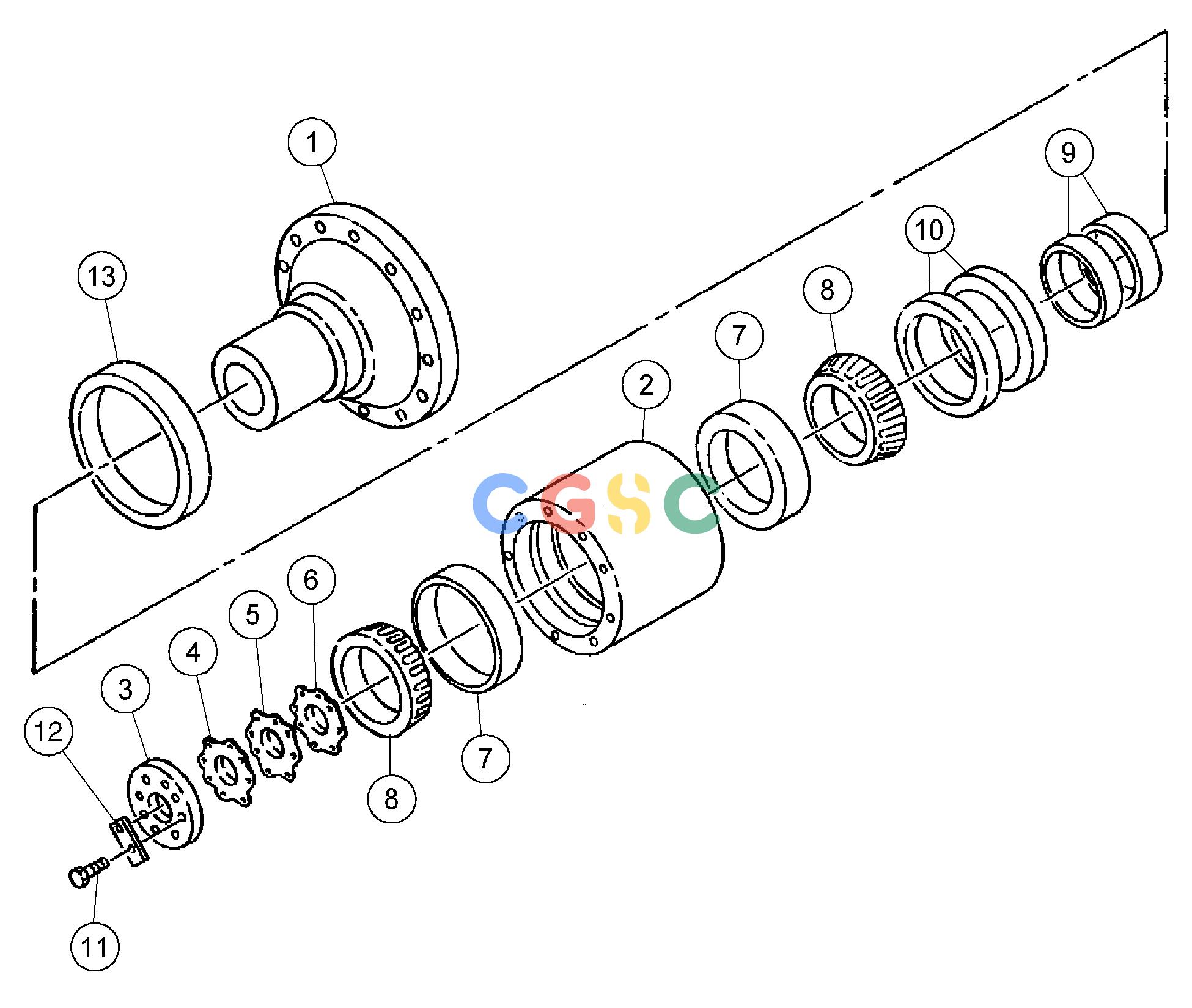

沃尔沃零件查询DD146HF Carrier And Spindle AssemblyS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM59090738
|
[1] |
Planet carrier
|
|
| 2. |
RM59622175
|
[1] |
Spindle
|
|
| 3. |
RM59918110
|
[1] |
Retaining ring
|
|
| 4. |
RM59862573
|
[4] |
Shim
|
|
| 5. |
RM59862581
|
[4] |
Shim
|
|
| 6. |
RM59862599
|
[4] |
Shim
|
|
| 7. |
RM59626580
|
[2] |
Bearing
|
|
| 8. |
RM59626598
|
[2] |
Bearing
|
|
| 9. |
RM59622258
|
[2] |
Wear sleeve
|
|
| 10. |
RM59622241
|
[2] |
Sealing ring
|
|
| 11. |
RM95430534
|
[8] |
Hexagon screw
|
|
| 12. |
RM59896506
|
[4] |
Lock plate
|
|
| 13. |
RM59478172
|
[1] |
Dust cover
|
|
