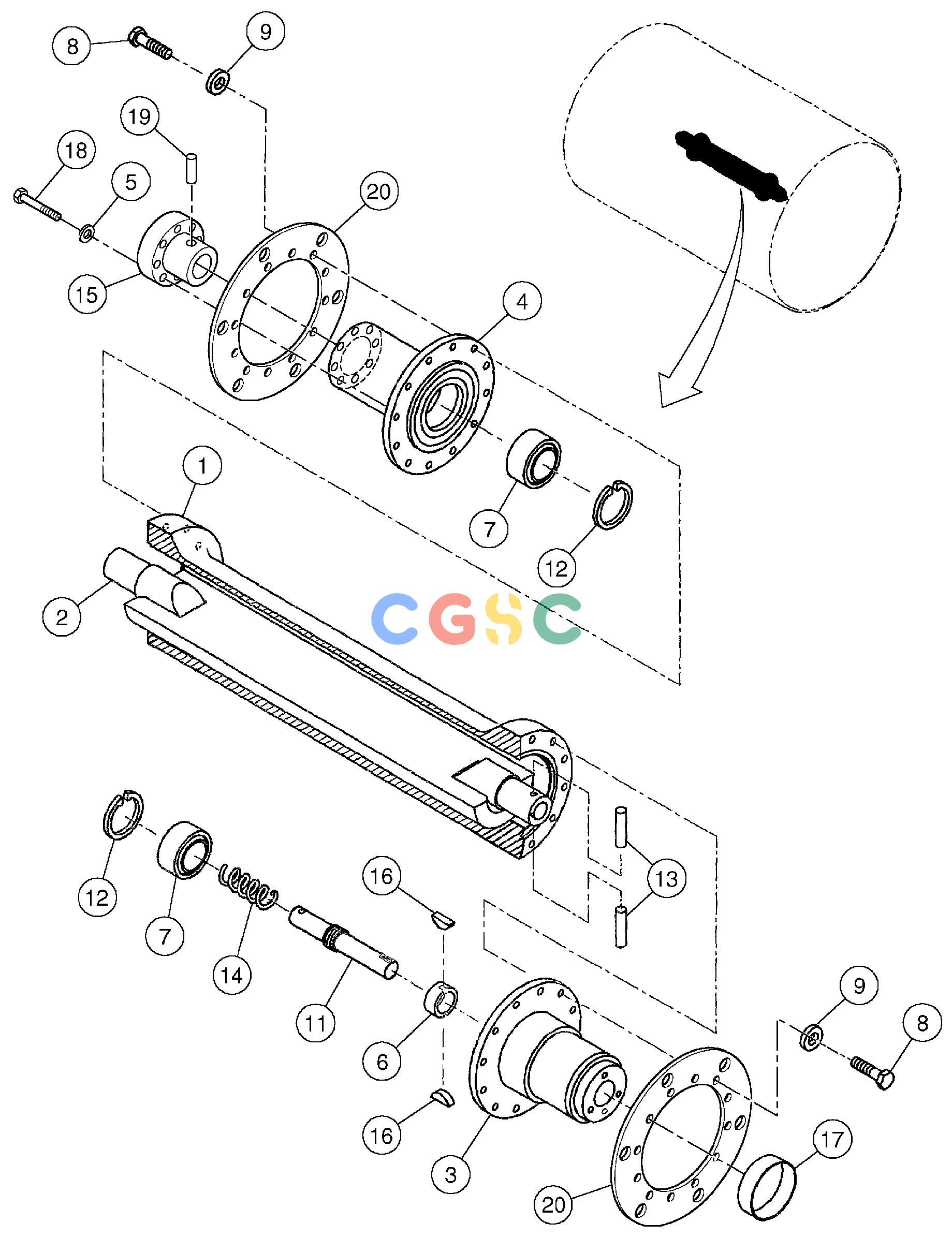

沃尔沃零件查询DD146HF Eccentric Shaft AssemblyS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
964 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM13185798
|
[1] |
Tube
|
|
| 2. |
RM58877614
|
[1] |
Eccentric shaft
|
|
| 3. |
RM59277293
|
[1] |
Hub
|
|
| 4. |
RM59275396
|
[1] |
Hub
|
|
| 5. |
VOE13955894
|
[8] |
Washer
|
|
| 6. |
RM59647404
|
[1] |
Drive sleeve
|
|
| 7. |
RM58951674
|
[2] |
Spherical plain bearing
|
|
| 8. |
RM96715693
|
[24] |
Hexagon screw
|
|
| 9. |
RM96741046
|
[24] |
Plain washer
|
|
| 11. |
RM58877655
|
[1] |
Shaft
|
|
| 12. |
RM95223046
|
[2] |
Retaining ring
|
|
| 13. |
RM59726380
|
[2] |
Pin
|
|
| 14. |
RM59647180
|
[1] |
Spring
|
|
| 15. |
RM13172952
|
[1] |
Drive sleeve
|
|
| 16. |
RM96950316
|
[2] |
Key
|
|
| 17. |
RM54606546
|
[1] |
Wear sleeve
|
|
| 18. |
RM96729314
|
[8] |
Hexagon screw
|
|
| 19. |
69736822
|
[1] |
None
|
|
| 20. |
RM13214275
|
[2] |
Steel disc
|
|
