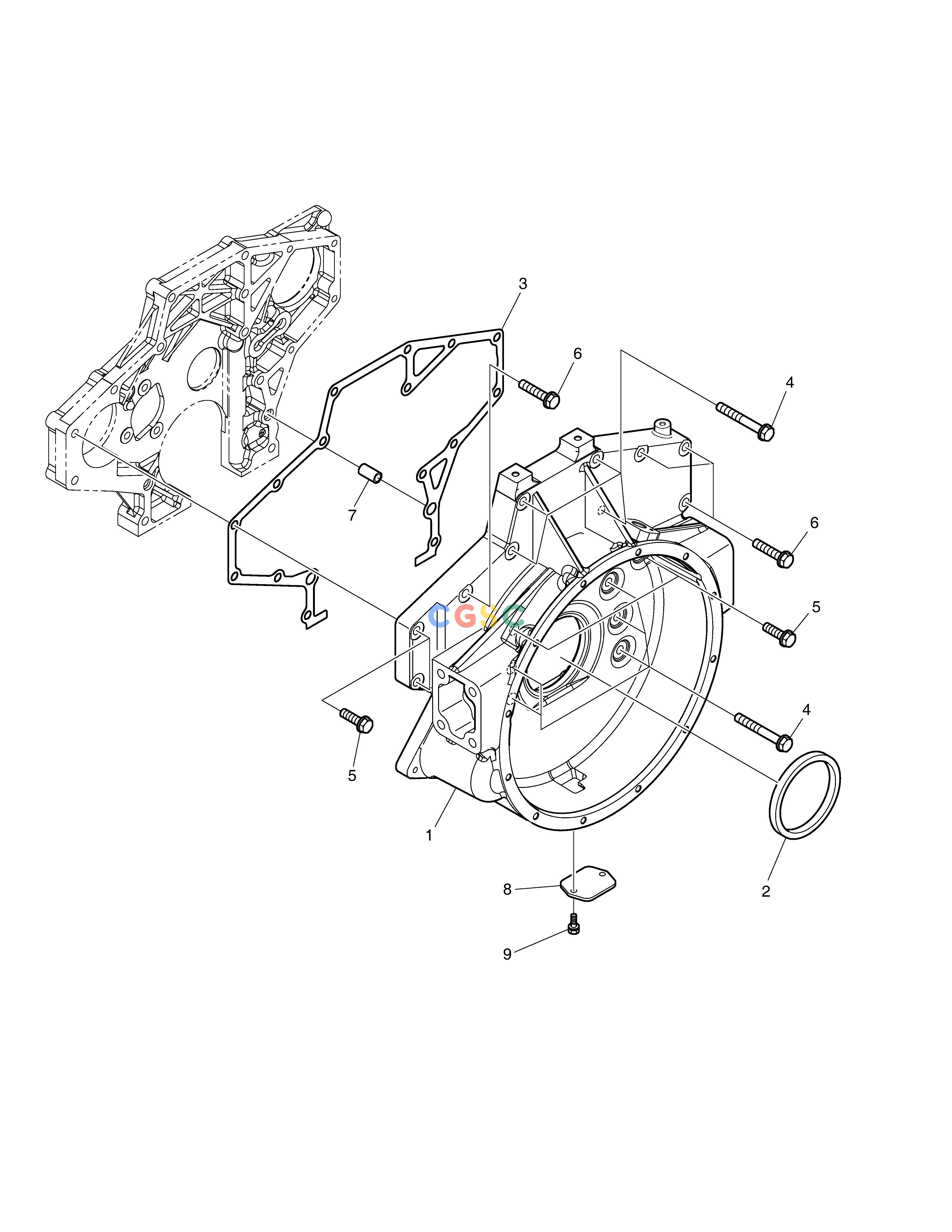

斗山零件查询FLYWHEEL HOUSING DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.01401-0253B
|
[1] |
HOUSING;FLYWHEEL
|
150114-00097A
|
| 1. |
150114-00097A
|
[1] |
|
150114-00097B
|
| 1. |
150114-00097B
|
[1] |
|
|
| 2. |
65.01510-0040
|
[1] |
SEAL;OIL
|
401106-00442
|
| 2. |
401106-00442
|
[1] |
|
|
| 3. |
65.01904-0032
|
[1] |
GASKET
|
400613-00006
|
| 3. |
400613-00006
|
[1] |
GASKET;F.W.H
|
|
| 4. |
65.90020-0100
|
[9] |
BOLT
|
|
| 5. |
65.90020-0101
|
[4] |
BOLT
|
|
| 6. |
65.90020-0105
|
[4] |
BOLT
|
|
| 7. |
65.91710-0009
|
[2] |
RING;STOPPER
|
|
| 8. |
65.01414-0004A
|
[1] |
. COVER
|
|
| 9. |
06.01923-3111
|
[2] |
BOLT, M8X16
|
|
