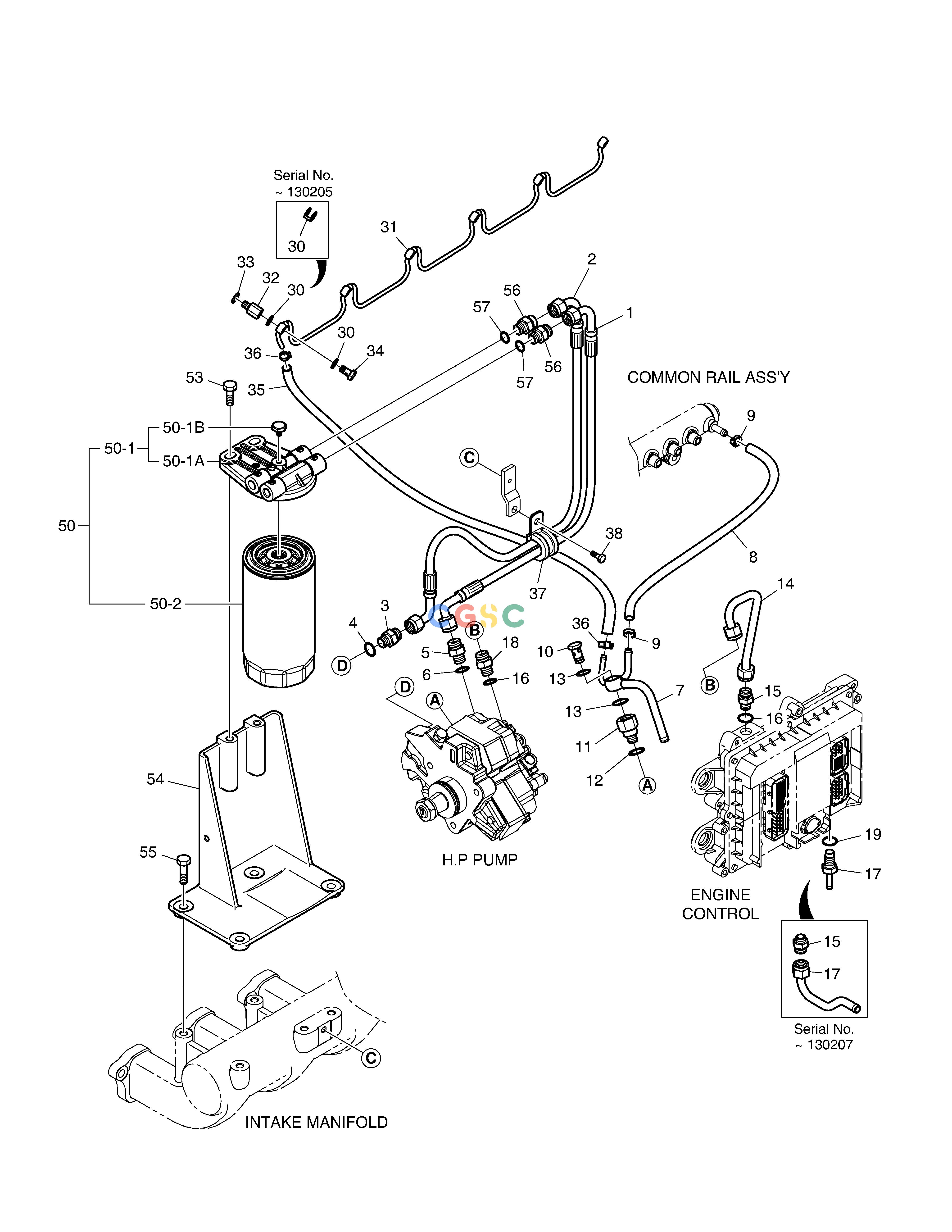

斗山零件查询FUEL SYSTEM DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
336 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.96340-5079
|
[1] |
HOSE
|
|
| 10. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 10. |
120703-00038A
|
[1] |
SCREW,HOLLOW
|
|
| 11. |
65.98130-0159A
|
[1] |
ADAPTER
|
430201-01083A
|
| 11. |
430201-01083A
|
[1] |
ADAPTER
|
|
| 12. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 13. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 14. |
65.12301-5289
|
[1] |
PIPE;FUEL
|
|
| 15. |
65.98130-0229
|
[2] |
ADAPTER
|
06.78190-0206
|
| 15. |
06.78190-0206
|
[2] |
CONNECTION;SCREW
|
|
| 15. |
06.78190-0206
|
[1] |
CONNECTION;SCREW
|
|
| 15. |
101552-00329A
|
[1] |
NIPPLE,UNION
|
|
| 16. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 17. |
65.12301-5268
|
[1] |
PIPE;FUEL
|
101552-00260
|
| 17. |
101552-00260
|
[1] |
NIPPLE
|
|
| 18. |
65.98130-0229
|
[1] |
ADAPTER
|
430201-01086
|
| 18. |
430201-01086
|
[1] |
. ADAPTER
|
|
| 19. |
65.96507-0043
|
[1] |
. RING;SEAL
|
|
| 2. |
65.96340-5080
|
[1] |
HOSE
|
|
| 3. |
65.98130-0211
|
[1] |
ADAPTER
|
430201-01085A
|
| 3. |
430201-01085A
|
[1] |
ADAPTER
|
|
| 30. |
65.96507-0055
|
[6] |
RING;SEAL
|
|
| 30. |
65.96507-0001
|
[12] |
RING;SEAL
|
|
| 31. |
65.12301-5288B
|
[1] |
PIPE;FUEL
|
420204-00182
|
| 31. |
420204-00182
|
[1] |
. PIPE;FUEL
|
|
| 32. |
65.98130-0154
|
[6] |
ADAPTER
|
|
| 32. |
430201-00844
|
[6] |
ADAPTER
|
430201-01082A
|
| 32. |
430201-01082A
|
[6] |
ADAPTER
|
|
| 33. |
06.56180-0712
|
[6] |
RING;SEAL
|
|
| 34. |
65.98150-0042A
|
[6] |
SCREW;HOLLOW
|
|
| 34. |
120703-00016
|
[6] |
SCREW,HOLLOW
|
|
| 34. |
120703-00040A
|
[6] |
SCREW,HOLLOW
|
|
| 35. |
65.96301-0462
|
[1] |
HOSE;RUBBER
|
65.96301-0462A
|
| 35. |
65.96301-0462A
|
[1] |
|
420108-00416
|
| 35. |
420108-00416
|
[1] |
. HOSE,RUBBER
|
|
| 36. |
65.97402-0003
|
[2] |
CLAMP;HOSE
|
|
| 36. |
65.97402-0006
|
[2] |
. CLAMP
|
|
| 37. |
65.97401-5019
|
[1] |
CLIP;PIPE
|
|
| 38. |
06.01923-3111
|
[1] |
BOLT, M8X16
|
|
| 4. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 5. |
65.98130-0229
|
[1] |
ADAPTER
|
430201-01086
|
| 5. |
430201-01086
|
[1] |
. ADAPTER
|
|
| 50. |
65.12501-7042B
|
[1] |
FUEL FILTER ASS'Y
|
65.12501-7042C
|
| 50. |
65.12501-7042C
|
[1] |
FUEL FILTER ASS'Y
|
400403-00129
|
| 50. |
400403-00129
|
[1] |
FILTER ASSY,FUEL
|
400403-00272
|
| 50. |
400403-00272
|
[1] |
FILTER ASSY,FUEL
|
400403-00272A
|
| 50. |
400403-00272A
|
[1] |
FILTER ASSY,FUEL
|
400403-00272B
|
| 50. |
400403-00272B
|
[1] |
. FILTER ASS`Y,FUEL
|
|
| 50-1. |
65.12504-5028
|
[1] |
. HEAD;FUEL FILTER
|
400505-00054
|
| 50-1. |
400505-00054
|
[1] |
. HEAD ASSY,FUEL FILTER
|
400505-00054A
|
| 50-1. |
400505-00054A
|
[1] |
. HEAD ASSY,FUEL FILTER
|
400505-00054B
|
| 50-1. |
400505-00054B
|
[1] |
.. HEAD ASS`Y,FILTER
|
|
| 50-1A. |
400505-00080
|
[1] |
.. HEAD,FILTER
|
400505-00080A
|
| 50-1A. |
400505-00080A
|
[1] |
... HEAD,FILTER
|
|
| 50-1B. |
430221-01114
|
[1] |
.. PLUG,VENT
|
|
| 50-2. |
65.12503-5026
|
[1] |
FILTER;E/G FUEL
|
65.12503-5026A
|
| 50-2. |
65.12503-5026A
|
[1] |
FILTER;E/G FUEL
|
400504-00078
|
| 50-2. |
400504-00078
|
[1] |
.. ELEMENT,FUEL FILTER
|
|
| 53. |
06.01923-3217
|
[2] |
BOLT ASS`Y M10X30
|
|
| 54. |
65.12540-0061
|
[1] |
BRACKET;FUEL FILTER
|
|
| 55. |
06.01913-3217
|
[4] |
BOLT ASS'Y M10X30
|
|
| 56. |
65.98130-0229
|
[2] |
ADAPTER
|
430201-01086
|
| 56. |
430201-01086
|
[2] |
. ADAPTER
|
|
| 57. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 6. |
65.96507-0043
|
[1] |
. RING;SEAL
|
|
| 7. |
65.12301-5291
|
[1] |
. PIPE;FUEL
|
|
| 8. |
65.96330-0018
|
[1] |
HOSE;RUBBER;RING JOINT
|
65.96330-0018B
|
| 8. |
65.96330-0018B
|
[1] |
. HOSE;RUBBER;RING JOIN
|
|
| 9. |
65.97440-0045
|
[2] |
CLAMP
|
|
| 9. |
65.97402-0010
|
[2] |
. CLIP
|
|
