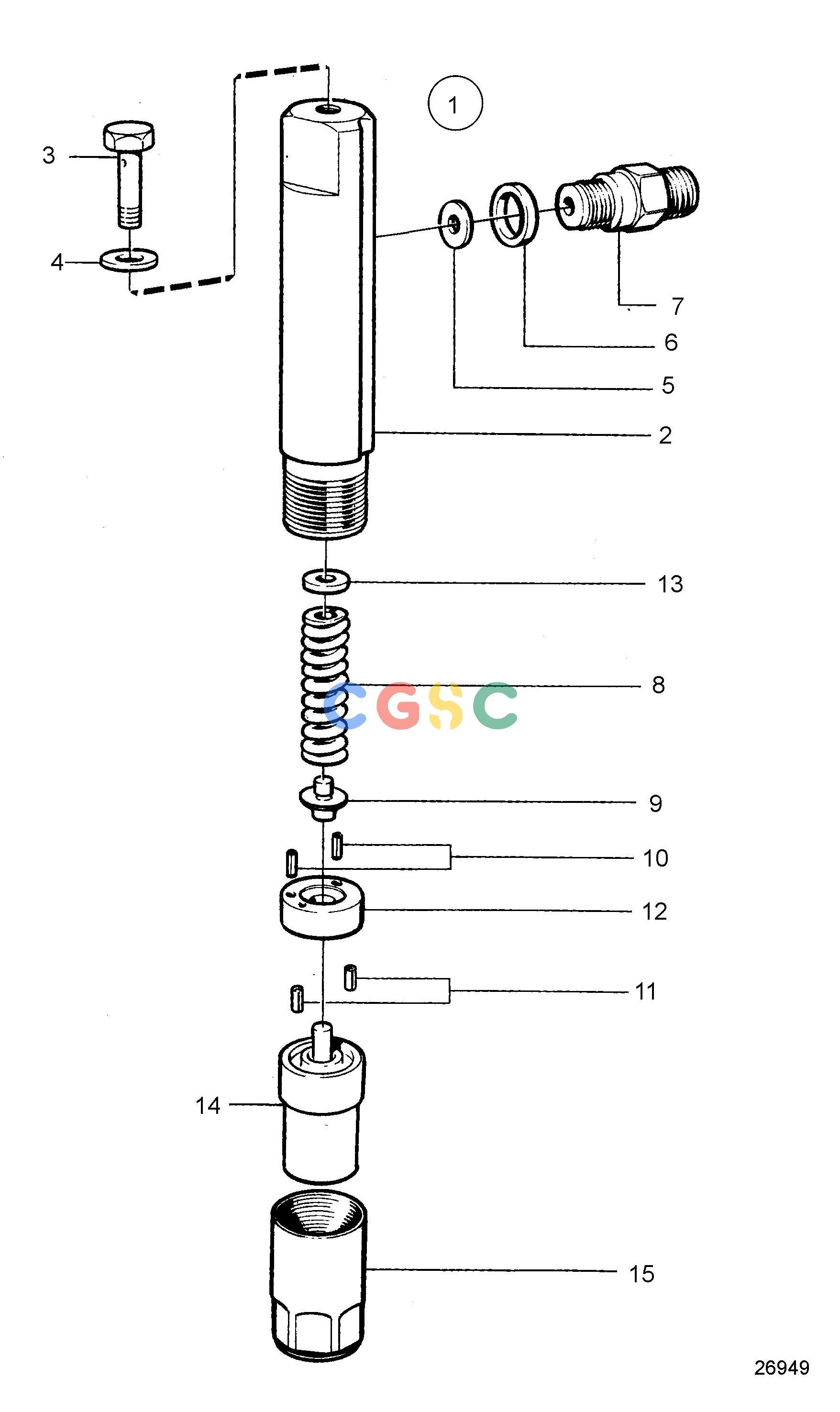

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EFuel SystemFuel InjectorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
717 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
844286
|
[1] |
Injector
|
|
| 2. |
|
|
|
|
| 3. |
74033
|
[1] |
Hollow screw
|
|
| 4. |
947620
|
[2] |
Gasket
|
|
| 5. |
844294
|
[1] |
Washer
|
|
| 6. |
844295
|
[1] |
Sealing ring
|
|
| 7. |
244443
|
[1] |
Fitting
|
|
| 8. |
244820
|
[1] |
Compression spring
|
|
| 9. |
244821
|
[1] |
Retainer
|
|
| 10. |
844339
|
[2] |
Locating pin
|
|
| 11. |
244447
|
[2] |
Pin
|
|
| 12. |
244537
|
[1] |
Washer
|
|
| 13. |
244797
|
[1] |
Shim
|
TH=1.000mm
|
| 13. |
846960
|
[1] |
Adjusting washer
|
TH=1.025mm
|
| 13. |
846945
|
[1] |
Adjusting washer
|
TH=1.050mm
|
| 13. |
846961
|
[1] |
Adjusting washer
|
TH=1.075mm
|
| 13. |
844303
|
[1] |
Adjusting washer
|
TH=1,100mm
|
| 13. |
244804
|
[1] |
Shim
|
TH=1.125mm
|
| 13. |
846947
|
[1] |
Adjusting washer
|
TH=1.150mm
|
| 13. |
846963
|
[1] |
Adjusting washer
|
TH=1.175mm
|
| 13. |
244799
|
[1] |
Shim
|
TH=1,200mm
|
| 13. |
6212417
|
[1] |
Adjusting washer
|
TH=1,225mm
|
| 13. |
244805
|
[1] |
Shim
|
TH=1,250mm
|
| 13. |
244807
|
[1] |
Shim
|
TH=1,275mm
|
| 13. |
844308
|
[1] |
Adjusting washer
|
TH=1,300mm
|
| 13. |
244789
|
[1] |
Shim
|
TH=1,325mm
|
| 13. |
858908
|
[1] |
Adjusting washer
|
TH=1,350mm
|
| 13. |
846966
|
[1] |
Adjusting washer
|
TH=1,375mm
|
| 13. |
244800
|
[1] |
Shim
|
TH=1,400mm
|
| 13. |
6212393
|
[1] |
Adjusting washer
|
TH=1,425mm
|
| 13. |
846952
|
[1] |
Adjusting washer
|
TH=1,450mm
|
| 13. |
244802
|
[1] |
Shim
|
TH=1,475mm
|
| 13. |
844316
|
[1] |
Adjusting washer
|
TH=1,500mm
|
| 13. |
244791
|
[1] |
Shim
|
TH=1,525mm
|
| 13. |
846954
|
[1] |
Adjusting washer
|
TH=1,550mm
|
| 13. |
846969
|
[1] |
Adjusting washer
|
TH=1,575mm
|
| 13. |
244793
|
[1] |
Shim
|
TH=1,600mm
|
| 13. |
846970
|
[1] |
Adjusting washer
|
TH=1,625mm
|
| 13. |
244806
|
[1] |
Shim
|
TH=1,650mm
|
| 13. |
244803
|
[1] |
Shim
|
TH=1,675mm
|
| 13. |
858905
|
[1] |
Adjusting washer
|
TH=1,700mm
|
| 13. |
244794
|
[1] |
Shim
|
TH=1,725mm
|
| 13. |
846957
|
[1] |
Adjusting washer
|
TH=1,750mm
|
| 13. |
846975
|
[1] |
Adjusting washer
|
TH=1,775mm
|
| 13. |
844328
|
[1] |
Adjusting washer
|
TH=1,800mm
|
| 13. |
6212420
|
[1] |
Adjusting washer
|
TH=1,825mm
|
| 13. |
846958
|
[1] |
Adjusting washer
|
TH=1,850mm
|
| 13. |
244813
|
[1] |
Adjusting washer
|
TH=1,875mm
|
| 13. |
844332
|
[1] |
Adjusting washer
|
TH=1,900mm
|
| 13. |
244795
|
[1] |
Shim
|
TH=1,925mm
|
| 13. |
846959
|
[1] |
Adjusting washer
|
TH=1,950mm
|
| 13. |
846980
|
[1] |
Adjusting washer
|
TH=1,975mm
|
| 14. |
844461
|
[1] |
Nozzle
|
|
| 15. |
244448
|
[1] |
Nut
|
|
