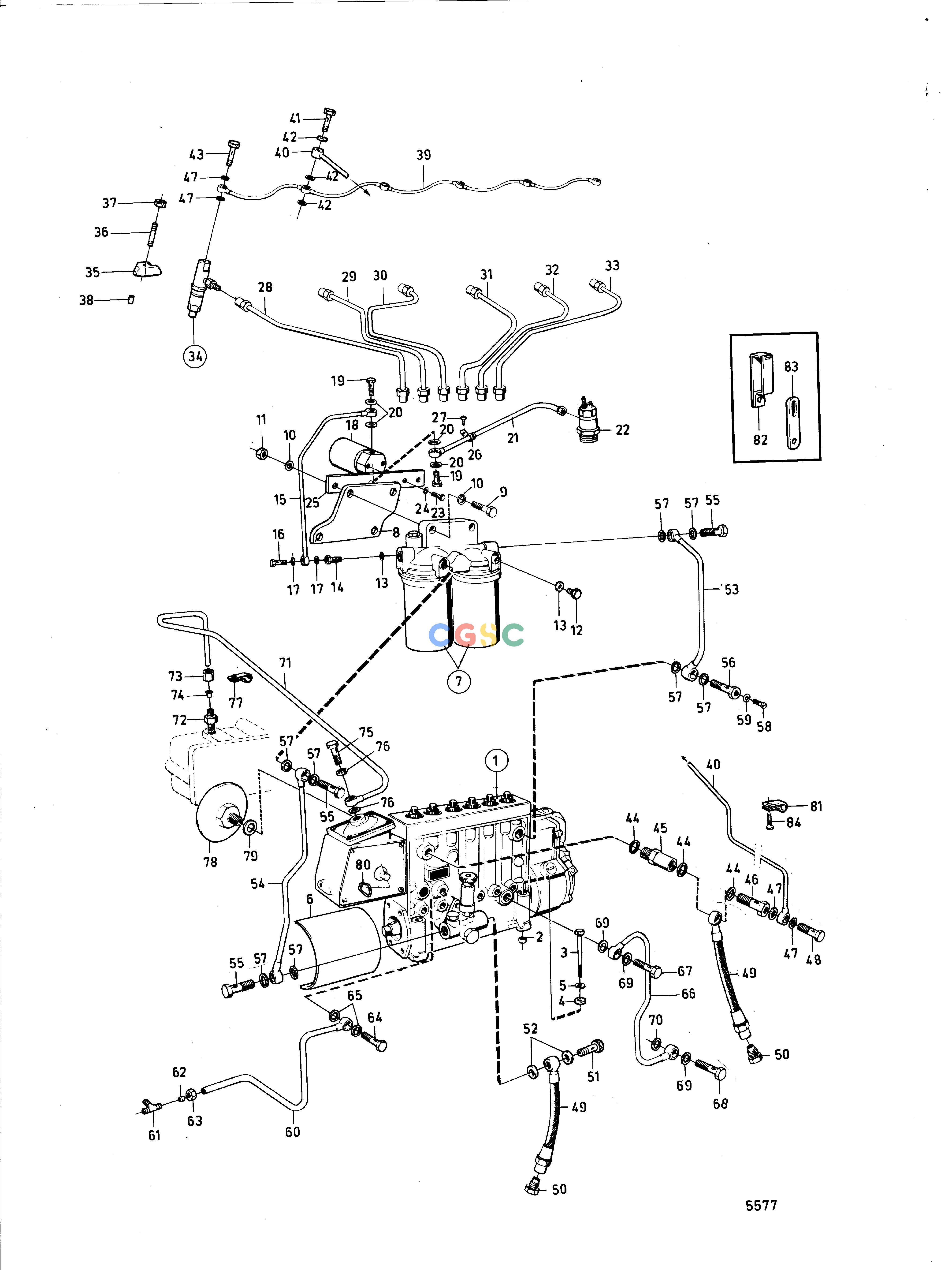

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
826 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837514
|
[1] |
Injection pump
|
|
| 1. |
845625
|
[1] |
Injection pump
|
|
| 2. |
417588
|
[1] |
Guide sleeve
|
See group 2B
|
| 3. |
940156
|
[4] |
Hexagon screw
|
|
| 4. |
190509
|
[4] |
Washer
|
|
| 5. |
942336
|
[4] |
Spring washer
|
|
| 6. |
7743260_019
|
|
drive device for fuel injection pump
|
|
| 6. |
|
|
|
|
| 7. |
241672
|
[1] |
Filter housing
|
Replaced by 1pc 471172 housing and 2pcs 466987 filter.
|
| 8. |
843974
|
[1] |
Bracket
|
See group 2B
|
| 9. |
955536
|
[2] |
Hexagon screw
|
|
| 10. |
942336
|
[4] |
Spring washer
|
|
| 11. |
955827
|
[2] |
Hexagon nut
|
|
| 12. |
960630
|
[2] |
Plug
|
|
| 13. |
957178
|
[3] |
Gasket
|
|
| 14. |
837322
|
[1] |
Nipple
|
|
| 15. |
837325
|
[1] |
Fuel pipe
|
|
| 16. |
74033
|
[1] |
Hollow screw
|
|
| 17. |
957171
|
[2] |
Gasket
|
|
| 18. |
837327
|
[1] |
Solenoid valve
|
12V see group 3
|
| 18. |
837328
|
[1] |
Solenoid valve
|
24V see group 3
|
| 19. |
48634
|
[2] |
Hollow screw
|
|
| 20. |
957173
|
[4] |
Gasket
|
|
| 21. |
843982
|
[1] |
Fuel pipe
|
|
| 22. |
842076
|
[1] |
Glow plug
|
12V see group 3
|
| 22. |
842077
|
[1] |
Glow plug
|
24V see group 3
|
| 23. |
956090
|
[2] |
Cross recessed screw
|
|
| 24. |
941906
|
[2] |
Spring washer
|
|
| 25. |
837333
|
[1] |
Bracket
|
|
| 26. |
952622
|
[1] |
Clamp
|
|
| 27. |
955512
|
[1] |
Hexagon screw
|
|
| 28. |
843651
|
[1] |
Delivery pipe
|
Cyl no. 1
|
| 29. |
843652
|
[1] |
Delivery pipe
|
Cyl no. 2
|
| 30. |
843653
|
[1] |
Delivery pipe
|
Cyl no. 3
|
| 31. |
843654
|
[1] |
Delivery pipe
|
Cyl no. 4
|
| 32. |
843655
|
[1] |
Delivery pipe
|
Cyl no. 5
|
| 33. |
843656
|
[1] |
Delivery pipe
|
Cyl no. 6
|
| 34. |
844286
|
[6] |
Injector
|
|
| 35. |
469797
|
[6] |
Yoke
|
|
| 36. |
466400
|
[6] |
Stud
|
|
| 37. |
943927
|
[6] |
Hexagon nut
|
|
| 38. |
466401
|
[6] |
Pin
|
|
| 39. |
466896
|
[1] |
Leak-off pipe
|
|
| 40. |
843657
|
[1] |
Leak-off line
|
|
| 41. |
74034
|
[1] |
Hollow screw
|
|
| 42. |
946729
|
[3] |
Gasket
|
|
| 43. |
74033
|
[5] |
Hollow screw
|
Included in fuel injector.
|
| 44. |
957178
|
[3] |
Gasket
|
|
| 45. |
35096
|
[1] |
Overflow valve
|
|
| 46. |
16496
|
[1] |
Hollow screw
|
|
| 47. |
947620
|
[12] |
Gasket
|
|
| 48. |
240579
|
[1] |
Screw
|
|
| 49. |
845372
|
[2] |
Fuel hose
|
|
| 50. |
22753
|
[2] |
Nipple
|
|
| 51. |
25167
|
[1] |
Hollow screw
|
|
| 52. |
957178
|
[2] |
Gasket
|
|
| 53. |
843649
|
[1] |
Fuel pipe
|
|
| 54. |
843648
|
[1] |
Fuel pipe
|
|
| 55. |
25167
|
[3] |
Hollow screw
|
|
| 56. |
944679
|
[1] |
Hollow screw
|
|
| 57. |
957178
|
[8] |
Gasket
|
|
| 58. |
240664
|
[1] |
Bleeder screw
|
|
| 59. |
25534
|
[1] |
Gasket
|
|
| 60. |
466663
|
[1] |
Oil line
|
|
| 61. |
191936
|
[1] |
T-nipple
|
|
| 62. |
954364
|
[1] |
Sleeve
|
|
| 63. |
954356
|
[1] |
Fitting nut
|
|
| 64. |
48634
|
[1] |
Hollow screw
|
|
| 65. |
957173
|
[2] |
Gasket
|
|
| 66. |
843975
|
[1] |
Oil return pipe
|
|
| 67. |
25167
|
[1] |
Hollow screw
|
|
| 68. |
942007
|
[1] |
Hollow screw
|
|
| 69. |
18671
|
[3] |
Gasket
|
|
| 70. |
11998
|
[1] |
Gasket
|
|
| 71. |
843659
|
[1] |
Tube
|
|
| 72. |
949554
|
[1] |
Nipple
|
|
| 73. |
954357
|
[1] |
Fitting nut
|
|
| 74. |
954365
|
[1] |
Fitting
|
|
| 75. |
74040
|
[1] |
Hollow screw
|
|
| 76. |
11994
|
[2] |
Gasket
|
|
| 77. |
942400
|
[1] |
Clamp
|
|
| 78. |
466398
|
[1] |
Pressure equalizer
|
|
| 79. |
18671
|
[1] |
Gasket
|
|
| 80. |
422525
|
[1] |
Attaching lug
|
|
| 81. |
121563
|
[1] |
Clamp
|
|
| 82. |
845073
|
[2] |
Clamp
|
For 3 pipes
|
| 82. |
845072
|
[3] |
Clamp
|
For 2 pipes.
|
| 83. |
|
|
|
See group 2B
|
| 84. |
950045
|
[1] |
Cross recessed screw
|
|
