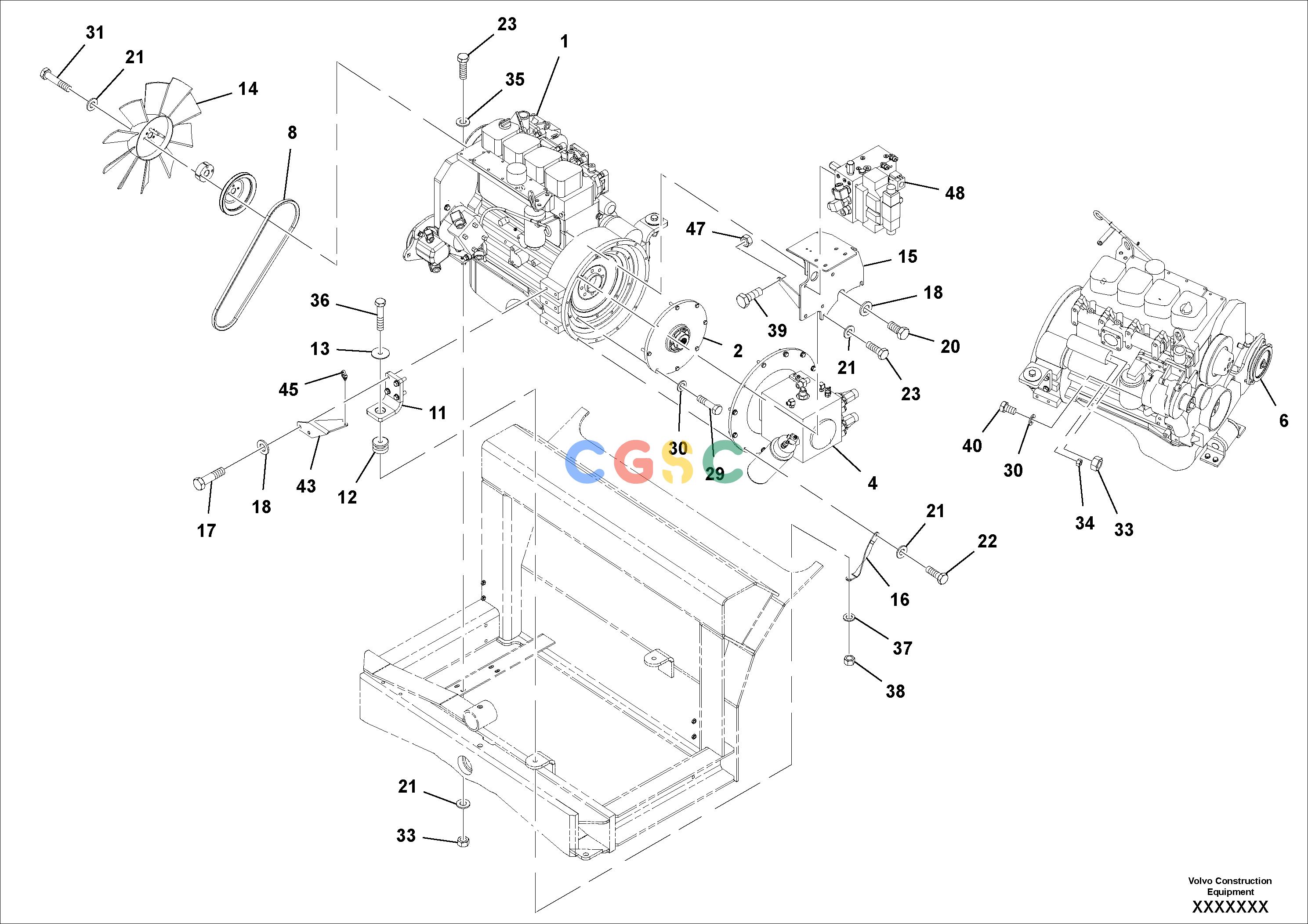

沃尔沃零件查询DD70/DD70HF Engine InstallationS/N 197522 -59131789_0P01-NoneNoneNone43925817_13415203_59288639Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM13845243
|
[1] |
Engine
|
|
| |
RM13420385
|
[1] |
Starter motor
|
|
| |
RM13852256
|
[1] |
Alternator
|
|
| |
RM43924463
|
[1] |
Fuel filter
|
|
| |
RM13064282
|
[1] |
Fuel filter
|
PRE-FILTER
|
| |
RM13284716
|
[1] |
Oil filter
|
|
| |
RM13420823
|
[1] |
Belt
|
|
| |
RM59162982
|
[1] |
Decal
|
BIODEGRADABLE OIL
|
| |
RM13387238
|
[1] |
Oil
|
MOBIL EAL ENVIROSYN
|
| |
RM13168760
|
[1] |
Engine
|
|
| 2. |
RM59286310
|
[1] |
Coupling piece
|
|
| |
RM59477570
|
[1] |
Fuel filter
|
|
| |
RM43922913
|
[1] |
Oil filter
|
|
| |
RM13503594
|
[1] |
Starter motor
|
|
| |
VOE9013503594
|
[1] |
Starter motor
|
|
| |
RM13503719
|
[1] |
Alternator
|
|
| |
VOE9013503719
|
[1] |
Alternator
|
|
| 4. |
|
[1] |
Propulsion Pump
|
|
| 6. |
|
[1] |
Steering Pump
|
|
| 8. |
RM59075788
|
[1] |
V-belt
|
|
| 11. |
RM59075671
|
[2] |
Engine anchorage
|
REAR
|
| 12. |
RM13026810
|
[2] |
Rubber damper
|
|
| 13. |
RM59657320
|
[2] |
Washer
|
|
| 14. |
RM59023747
|
[1] |
Fan
|
|
| 15. |
RM13251871
|
[1] |
Bracket
|
|
| 16. |
RM59409508
|
[1] |
Strap
|
|
| 17. |
RM96702667
|
[8] |
Hexagon screw
|
|
| 18. |
RM96738596
|
[10] |
Plain washer
|
|
| 20. |
RM96701495
|
[2] |
Hexagon screw
|
|
| 21. |
RM96741046
|
[15] |
Plain washer
|
|
| |
VOE13955894
|
[4] |
Washer
|
High Ambient Temp
|
| 22. |
VOE997436
|
[10] |
Hexagon screw
|
|
| 23. |
RM96704309
|
[6] |
Hexagon screw
|
|
| 29. |
RM95919239
|
[8] |
Hexagon screw
|
|
| 30. |
RM96704325
|
[9] |
Plain washer
|
|
| 31. |
RM96719265
|
[4] |
Hexagon screw
|
|
| |
RM96702402
|
[4] |
Hexagon screw
|
High Ambient Temp
|
| 33. |
VOE971071
|
[5] |
Hexagon nut
|
|
| 34. |
RM96705132
|
[1] |
Hexagon nut
|
|
| 35. |
RM96712849
|
[8] |
Plain washer
|
|
| 36. |
RM96705520
|
[2] |
Hexagon screw
|
|
| 37. |
RM96738612
|
[2] |
Plain washer
|
|
| 38. |
RM96711882
|
[2] |
Hexagon nut
|
|
| 39. |
RM96702287
|
[1] |
Hexagon screw
|
|
| 40. |
RM96701479
|
[1] |
Hexagon screw
|
|
| 43. |
RM59130492
|
[1] |
Bracket
|
|
| 45. |
RM59588418
|
[1] |
Clamp
|
|
| 47. |
RM96704614
|
[1] |
Jam nut
|
|
| 48. |
|
[1] |
Vibration Valve
|
|
