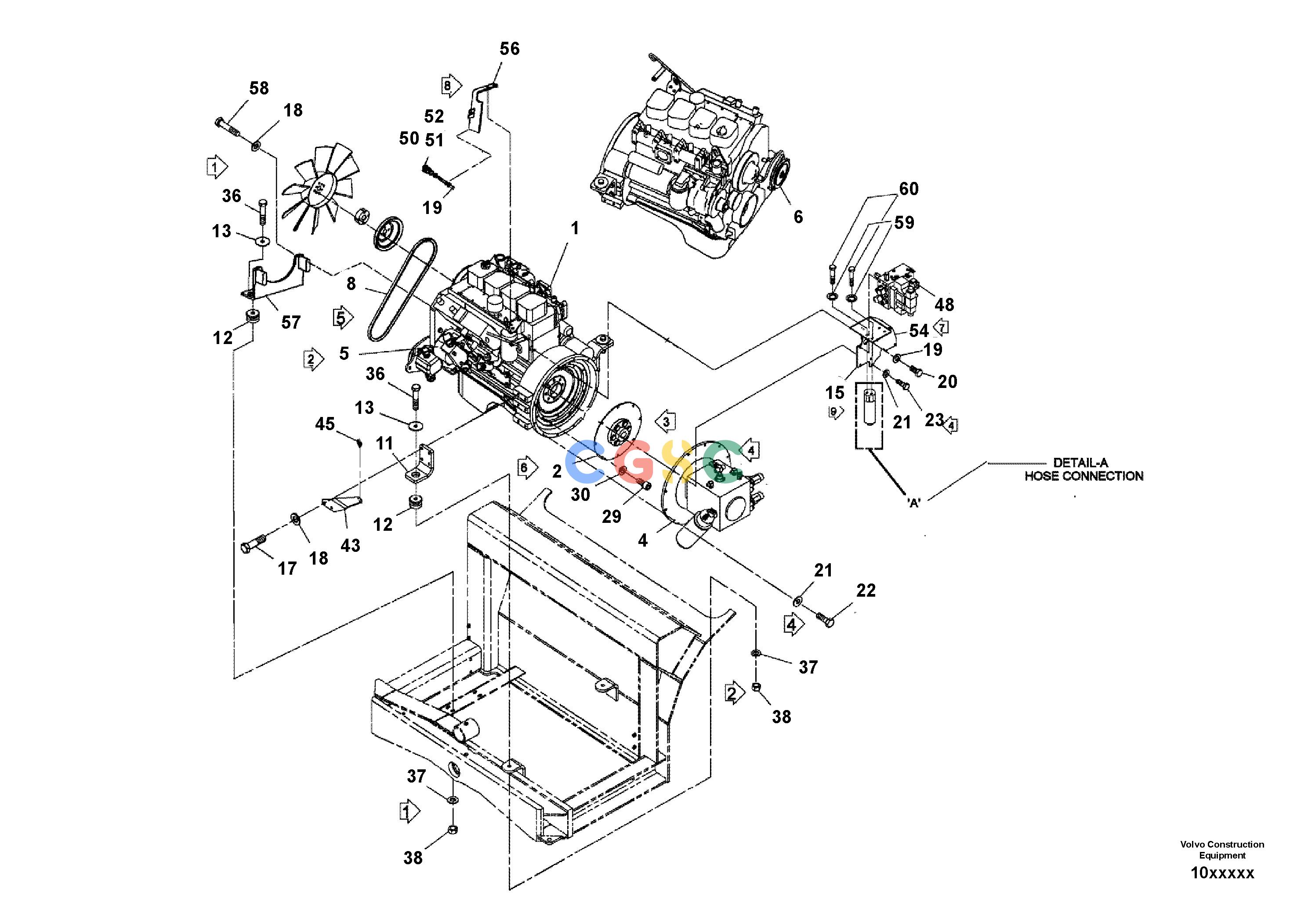

沃尔沃零件查询DD80 Engine InstallationS/N 0720110086 -70840897-NoneNoneNone70840897Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
938 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM70666102
|
[1] |
Engine
|
|
| 13. |
RM59657320
|
[8] |
Washer
|
|
| 15. |
RM70752753
|
[1] |
Bracket
|
|
| 17. |
RM96702667
|
[8] |
Hexagon screw
|
|
| 18. |
RM96738596
|
[18] |
Plain washer
|
|
| 20. |
RM96729355
|
[2] |
Bolt
|
|
| 21. |
RM96741046
|
[12] |
Plain washer
|
|
| 22. |
VOE997436
|
[10] |
Hexagon screw
|
|
| 23. |
RM96722129
|
[2] |
Hexagon screw
|
|
| 29. |
RM95919239
|
[8] |
Hexagon screw
|
|
| 30. |
RM96704325
|
[8] |
Plain washer
|
|
| |
RM70737465
|
[1] |
Oil filter
|
ELEMENT
|
| 36. |
RM96705520
|
[4] |
Hexagon screw
|
|
| 38. |
RM96711882
|
[4] |
Hexagon nut
|
|
| 43. |
RM59130492
|
[1] |
Bracket
|
|
| 45. |
RM59588418
|
[1] |
Clamp
|
|
| 48. |
RM59148221
|
[1] |
Valve
|
VIBRATION
|
| 49. |
RM70629001
|
[1] |
Cable
|
|
| 50. |
RM70037494
|
[1] |
Double clamp
|
|
| 51. |
RM70084496
|
[1] |
Clevis
|
|
| 52. |
RM70764345
|
[1] |
Plate
|
|
| 56. |
RM70633755
|
[1] |
Bracket
|
|
| |
RM70737481
|
[1] |
Fuel filter
|
ELEMENT
|
| 57. |
RM70842679
|
[1] |
Bracket
|
FRONT END
|
| 58. |
RM96722160
|
[4] |
Hexagon screw
|
|
| 59. |
RM96702519
|
[2] |
Washer
|
|
| 60. |
RM96702659
|
[2] |
Hexagon screw
|
|
| |
RM70737473
|
[1] |
Water separator
|
|
| 2. |
RM59286310
|
[1] |
Coupling piece
|
|
| 4. |
RM59075895
|
[1] |
Hydraulic Pump
|
|
| 8. |
RM59075788
|
[1] |
V-belt
|
|
| 11. |
RM59075671
|
[2] |
Engine anchorage
|
REAR
|
| 12. |
RM13026810
|
[4] |
Rubber damper
|
|
