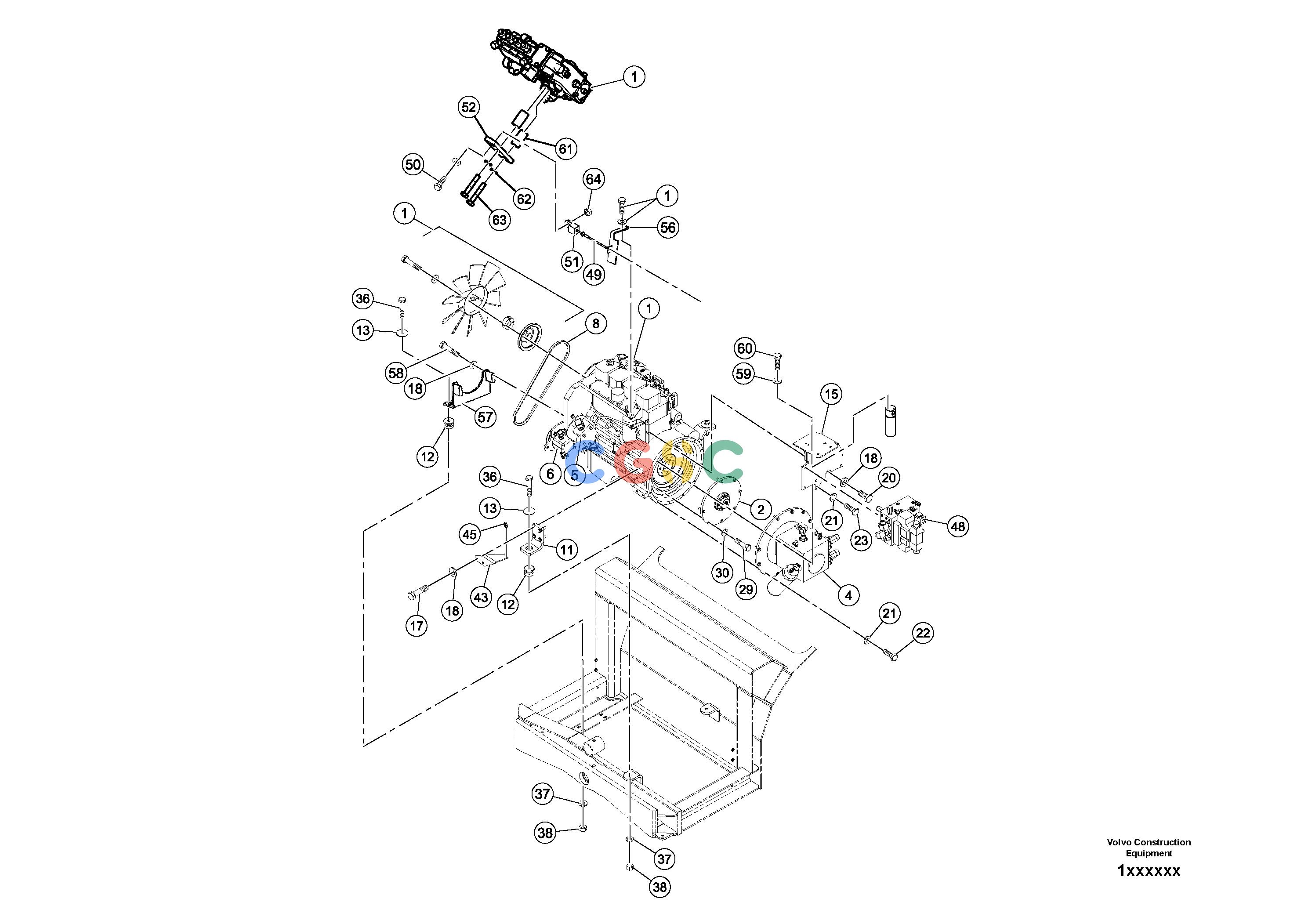

沃尔沃零件查询DD80 Engine InstallationS/N 0820107116 -70921416-NoneNoneNone70921416Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
846 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM70919469
|
[1] |
Engine
|
|
| 15. |
RM70752753
|
[1] |
Bracket
|
|
| 17. |
RM96702667
|
[8] |
Hexagon screw
|
|
| 18. |
RM96738596
|
[18] |
Plain washer
|
|
| 20. |
RM96701495
|
[2] |
Hexagon screw
|
|
| 21. |
RM96741046
|
[12] |
Plain washer
|
|
| 22. |
VOE997436
|
[10] |
Hexagon screw
|
|
| 23. |
RM96722129
|
[2] |
Hexagon screw
|
|
| 29. |
RM95919239
|
[8] |
Hexagon screw
|
|
| 30. |
RM96704325
|
[8] |
Plain washer
|
|
| 36. |
RM96705520
|
[4] |
Hexagon screw
|
|
| 2. |
RM59286310
|
[1] |
Coupling piece
|
|
| 37. |
RM96738612
|
[4] |
Plain washer
|
|
| 38. |
RM96711882
|
[4] |
Hexagon nut
|
|
| 43. |
RM59130492
|
[1] |
Bracket
|
|
| 45. |
RM59588418
|
[1] |
Clamp
|
|
| 48. |
RM59148221
|
[1] |
Valve
|
|
| 49. |
RM70629001
|
[1] |
Cable
|
|
| 50. |
RM96714258
|
[1] |
Hexagon screw
|
|
| 51. |
RM70541016
|
[1] |
Clevis
|
|
| 52. |
RM70067335
|
[1] |
Control lever
|
|
| 56. |
RM70633755
|
[1] |
Bracket
|
|
| 4. |
RM59075895
|
[1] |
Hydraulic Pump
|
|
| 57. |
RM70799028
|
[1] |
Bracket
|
|
| 58. |
RM96722160
|
[4] |
Hexagon screw
|
|
| 59. |
RM96702519
|
[2] |
Washer
|
|
| 60. |
RM96702659
|
[2] |
Hexagon screw
|
|
| 61. |
RM70911458
|
[2] |
Spacer
|
|
| 62. |
VOE955892
|
[3] |
Plain washer
|
|
| 63. |
RM96706809
|
[2] |
Hexagon screw
|
|
| 64. |
RM14083448
|
[1] |
Jam nut
|
|
| 5. |
RM59148239
|
[1] |
Hydraulic Pump
|
|
| 6. |
RM70840855
|
[1] |
Steering pump
|
|
| 8. |
RM59075788
|
[1] |
V-belt
|
|
| 11. |
RM70752536
|
[2] |
Engine anchorage
|
|
| 12. |
RM59546812
|
[8] |
Mounting plate
|
|
| 13. |
RM59657320
|
[4] |
Washer
|
|
