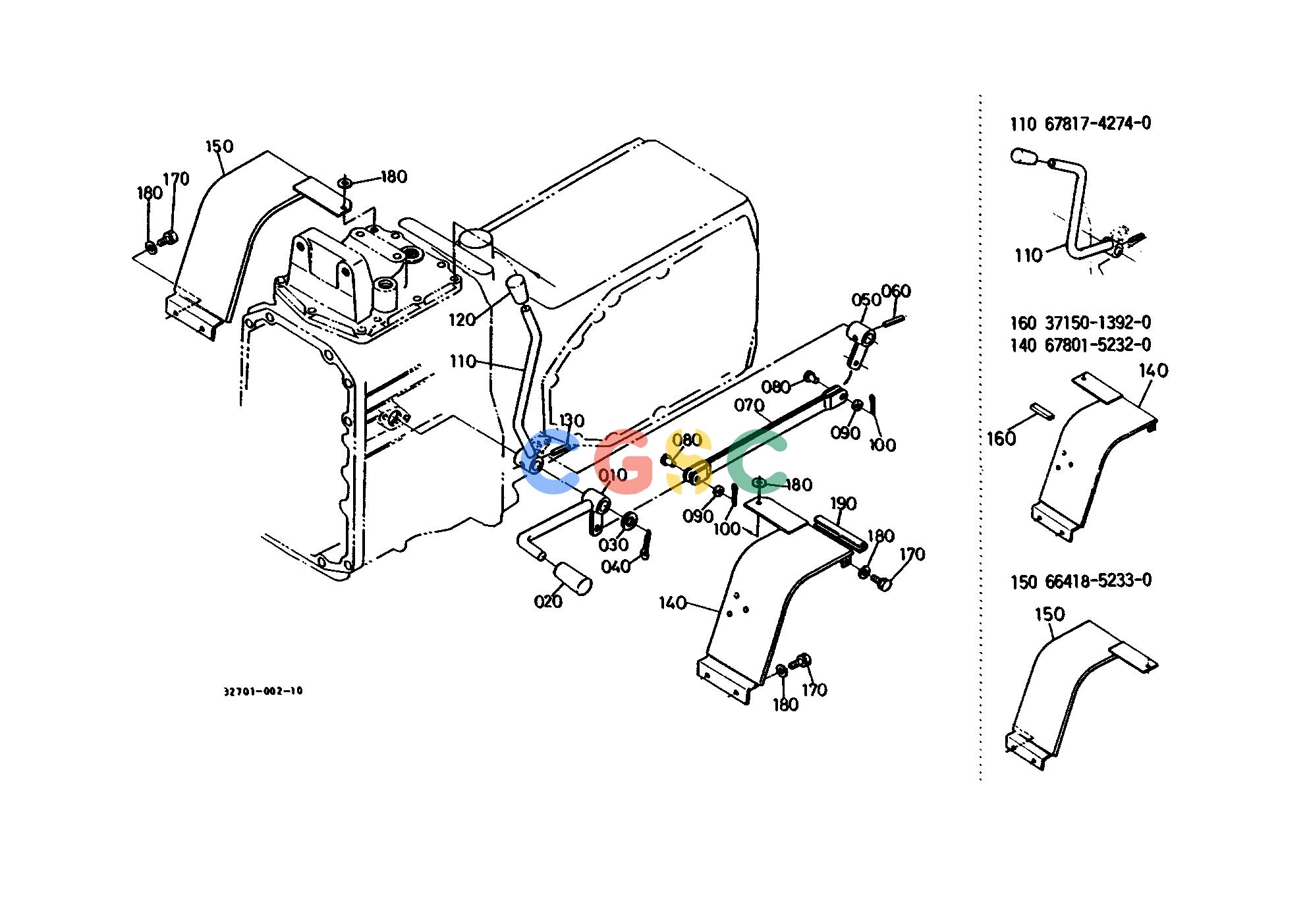

久保田零件查询T06300 FRONT WHEEL DRIVE LEVER/PTO LEVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
644 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6631142610
|
[1] |
LEVER FRONT DRIVE
|
0.5390(lbs); 0.245
|
| 020. |
5420123270
|
[1] |
GRIP
|
0.0440(lbs); 0.020
|
| 030. |
0401150140
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 040. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 050. |
6781042630
|
[1] |
BOSS LEVER
|
0.1320(lbs); 0.060
|
| 060. |
0541100632
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 070. |
6781042622
|
[1] |
LINK
|
0.3300(lbs); 0.150
|
| 080. |
0512250614
|
[2] |
PIN JOINT
|
0.0088(lbs); 0.004
|
| 090. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
0551151612
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 110. |
6781742740
|
[1] |
LEVER PTO SHIFT
|
0.6600(lbs); 0.300
|
| 110. |
6636142740
|
[1] |
LEVER PTO SHIFT
|
0.5500(lbs); 0.250
|
| 120. |
5420123270
|
[1] |
GRIP
|
0.0440(lbs); 0.020
|
| 130. |
0541100632
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 140. |
6780152320
|
[1] |
COVER S-CHANGE LH
|
0.0000(lbs); 0.000
|
| 140. |
6780152326
|
[1] |
COVER S-CHANGE LH
|
1.7160(lbs); 0.780
|
| 150. |
6641852330
|
[1] |
COVER S-CHANGE RH
|
0.0000(lbs); 0.000
|
| 150. |
6641852336
|
[1] |
COVER S-CHANGE RH
|
1.6500(lbs); 0.750
|
| 160. |
3715013920
|
[2] |
CUSHION
|
0.0110(lbs); 0.005
|
| 170. |
0112350820
|
[6] |
BOLT
|
0.0242(lbs); 0.011
|
| 180. |
0401350080
|
[8] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 190. |
6780054250
|
[1] |
COVER PROTECT
|
0.0154(lbs); 0.007
|
