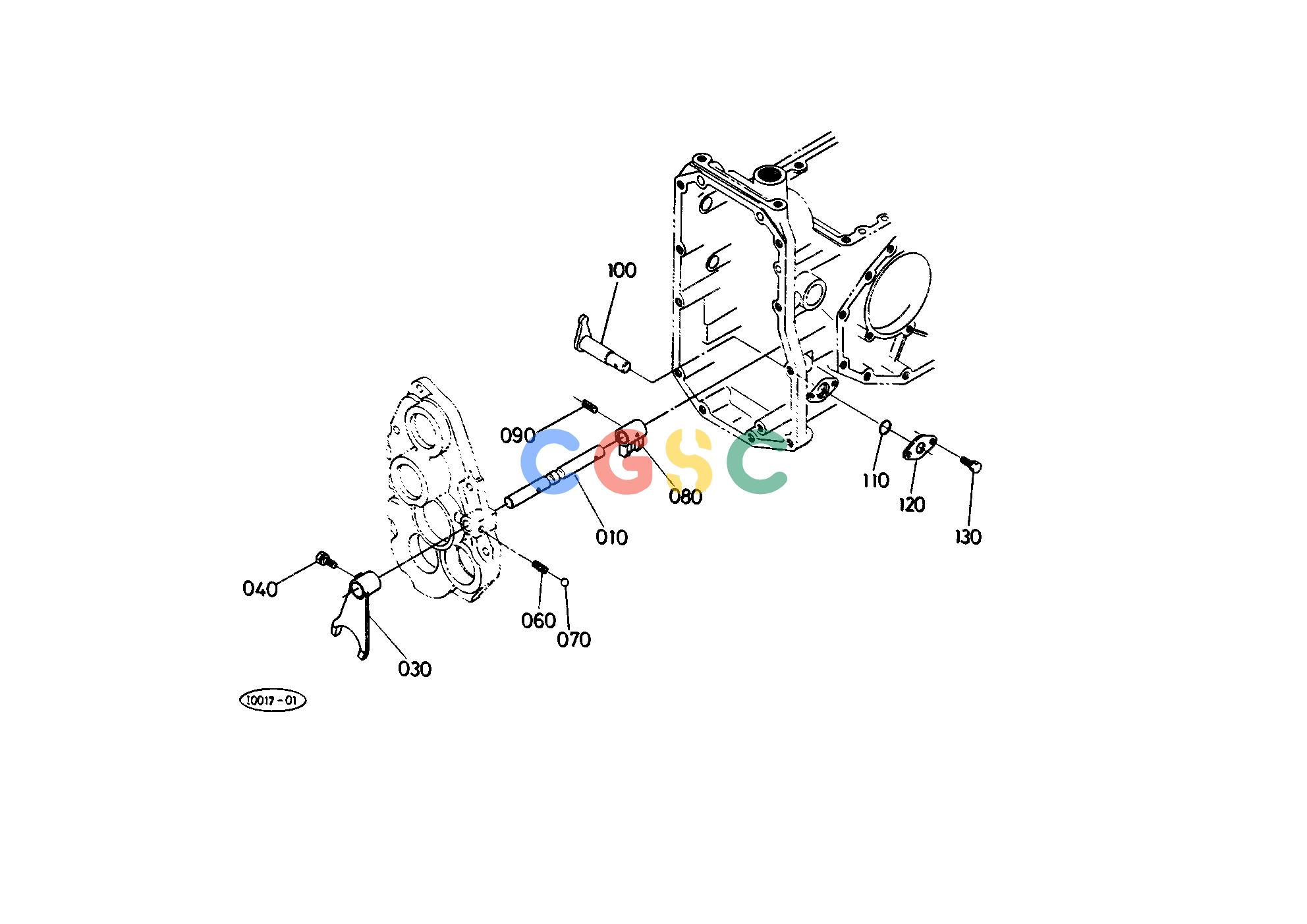

久保田零件查询T06400 FRONT DRIVE FORK SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
988 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6712118510
|
[1] |
SHAFT FORK
|
0.3520(lbs); 0.160
|
| 030. |
6712118520
|
[1] |
FORK SHIFT
|
0.2640(lbs); 0.120
|
| 040. |
0102350616
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 060. |
6223118530
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 070. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 080. |
6712118530
|
[1] |
SHIFTER F.WHEEL DRIV
|
0.1760(lbs); 0.080
|
| 090. |
0541100422
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 100. |
6712118540
|
[1] |
ARM F.WHEEL DRIVE
|
0.2750(lbs); 0.125
|
| 110. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 120. |
6659118180
|
[1] |
RETAINER FORK ROD
|
0.0264(lbs); 0.012
|
| 130. |
0120250616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
