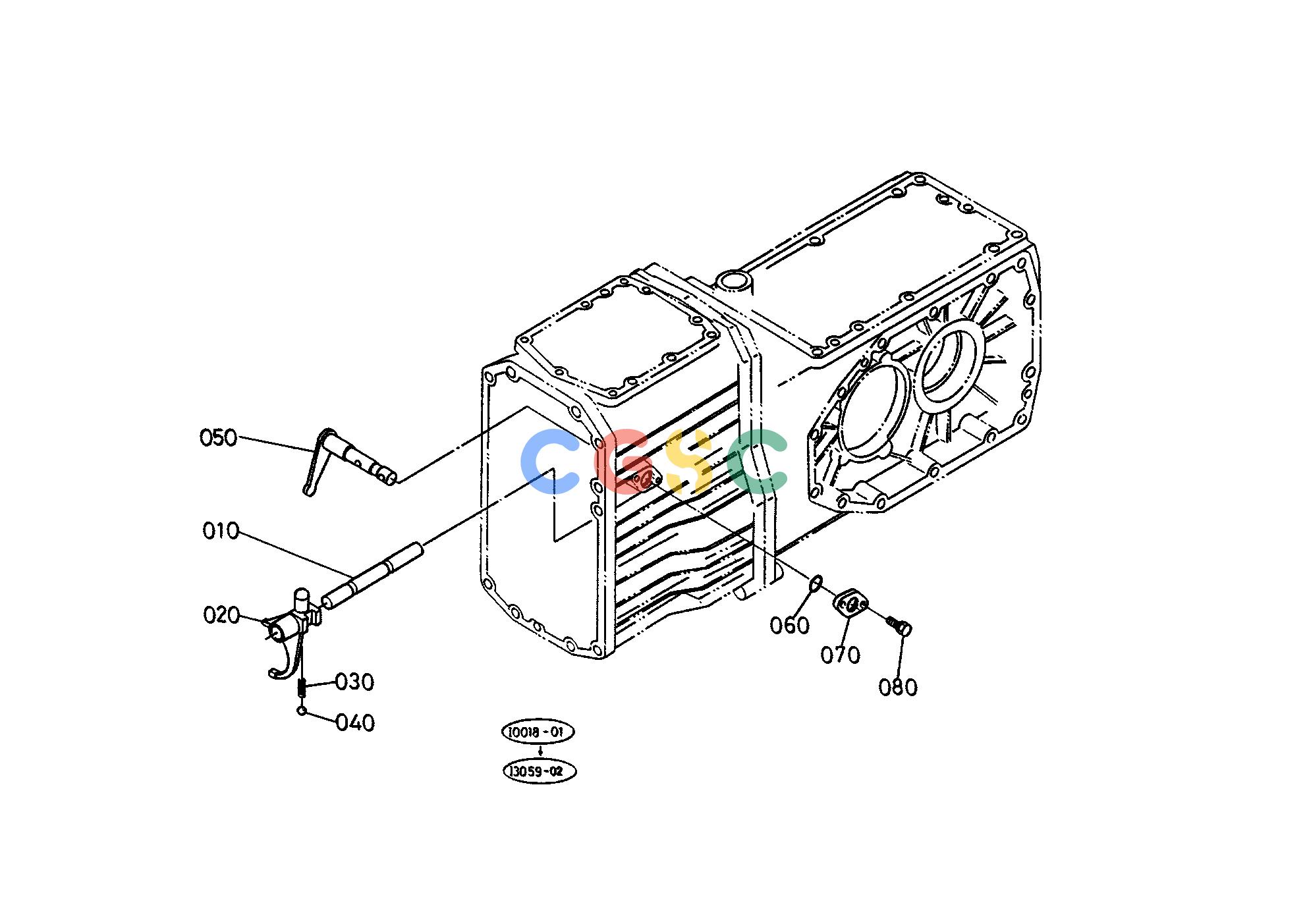

久保田零件查询T06500 PTO FORK SHAFT SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
418 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270118610
|
[1] |
SHAFT PTO FORK
|
0.2860(lbs); 0.130
|
| 020. |
6630118620
|
[1] |
FORK PTO SHIFT
|
0.4620(lbs); 0.210
|
| 020. |
H663018620
|
[1] |
FORK PTO SHIFT
|
0.4620(lbs); 0.210
|
| 030. |
6223118530
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 040. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
6781018670
|
[1] |
ARM PTO SP-CHANGE
|
0.3520(lbs); 0.160
|
| 060. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 070. |
6780018180
|
[1] |
RETAINER FORK ROD
|
0.0990(lbs); 0.045
|
| 080. |
0120250616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
