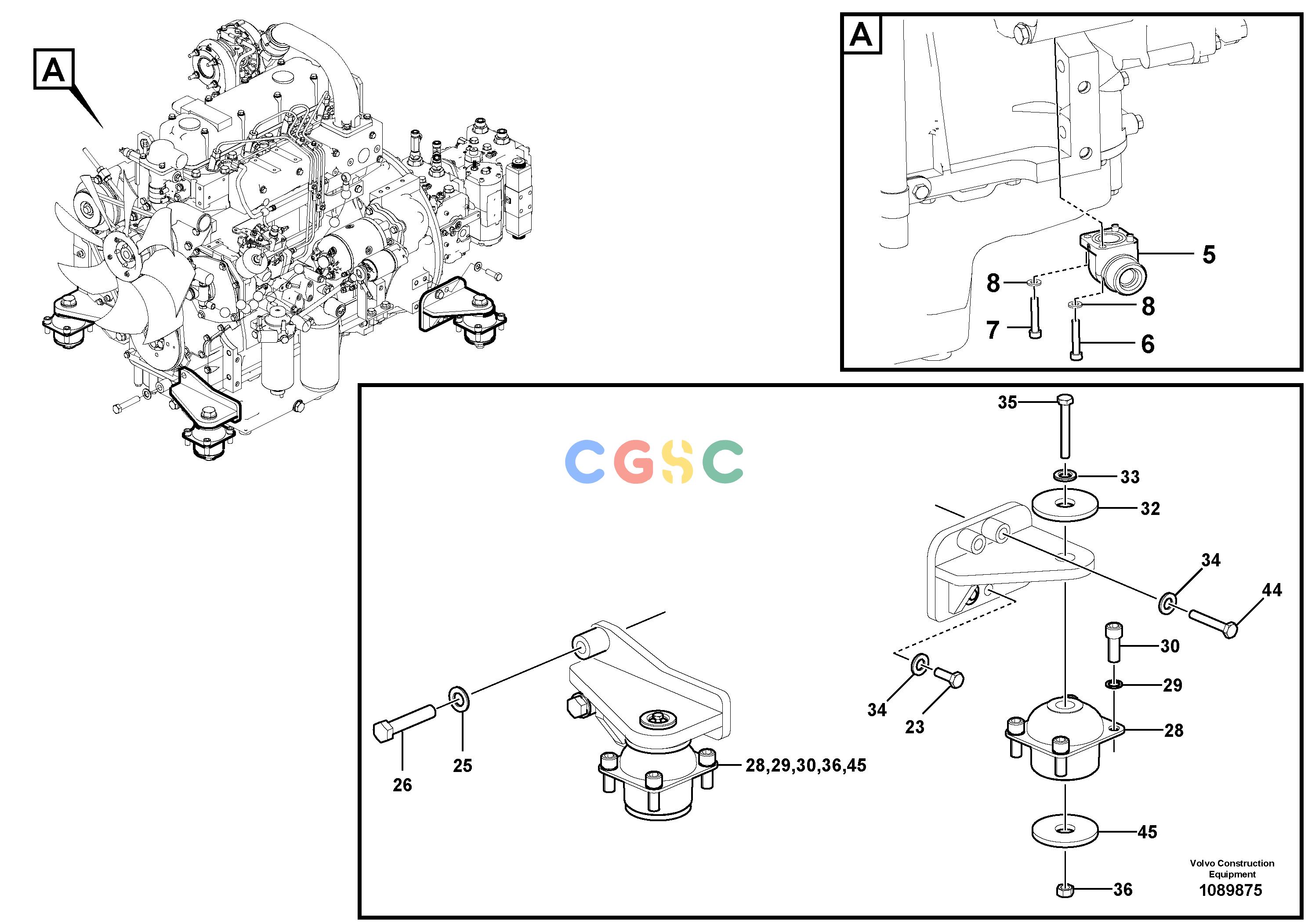

沃尔沃零件查询DD90B Engine mountingS/N 50001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
350 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE12797703
|
[1] |
Flange
|
|
| 6. |
RM96725593
|
[2] |
Hex. socket screw
|
|
| 7. |
RM96705082
|
[2] |
Hex. socket screw
|
|
| 8. |
RM96719729
|
[4] |
Plain washer
|
|
| 23. |
RM96702329
|
[4] |
Hexagon screw
|
|
| 25. |
VOE955899
|
[4] |
Plain washer
|
|
| 26. |
VOE991641
|
[4] |
Hexagon screw
|
|
| 28. |
RM70932538
|
[4] |
Engine anchorage
|
|
| 29. |
RM14272462
|
[16] |
Lock washer
|
|
| 30. |
RM96725007
|
[16] |
Hex. socket screw
|
|
| 32. |
RM96746433
|
[4] |
Plain washer
|
|
| 33. |
RM96701560
|
[4] |
Plain washer
|
|
| 34. |
RM96738596
|
[8] |
Plain washer
|
|
| 35. |
RM96705678
|
[4] |
Hexagon screw
|
|
| 44. |
RM96726559
|
[4] |
Hexagon screw
|
|
| 45. |
VOE12833661
|
[4] |
Washer
|
|
