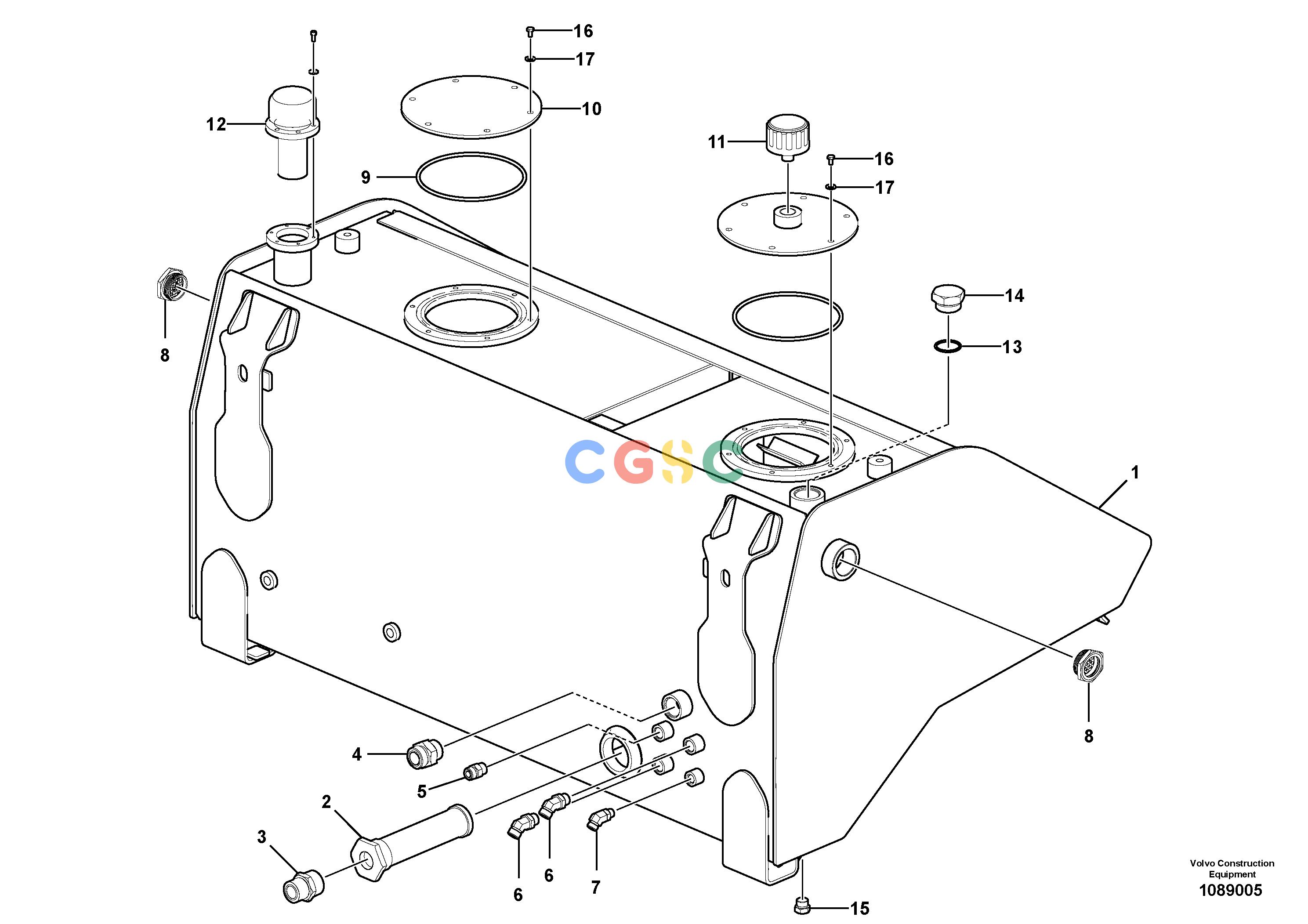

沃尔沃零件查询DD90B Fuel tankS/N 50001 - NoneNone12817726Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
406 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE12824582
|
[1] |
Fluid reservoir
|
|
| 1. |
12823989
|
[1] |
Fuel tank
|
|
| 2. |
RM70606165
|
[1] |
Strainer
|
|
| 3. |
RM59923276
|
[1] |
Adapter
|
|
| 4. |
VOE935229
|
[1] |
Nipple
|
|
| 5. |
VOE13933923
|
[1] |
Nipple
|
|
| 6. |
VOE935772
|
[2] |
Elbow nipple
|
|
| 7. |
VOE935640
|
[1] |
Elbow nipple
|
|
| 8. |
RM70537345
|
[3] |
Gauge
|
|
| 9. |
VOE960250
|
[2] |
O-ring
|
|
| 10. |
VOE12823987
|
[1] |
Cover plate
|
|
| 11. |
VOE12804071
|
[1] |
Venting
|
|
| 12. |
VOE12830012
|
[1] |
Breather cap
|
|
| 13. |
RM59990127
|
[1] |
O-ring
|
|
| 14. |
RM95748562
|
[1] |
Plug
|
|
| 15. |
RM95323465
|
[2] |
Plug
|
|
| 16. |
RM96702816
|
[12] |
Hexagon screw
|
|
| 17. |
VOE60110236
|
[12] |
Plain washer
|
|
