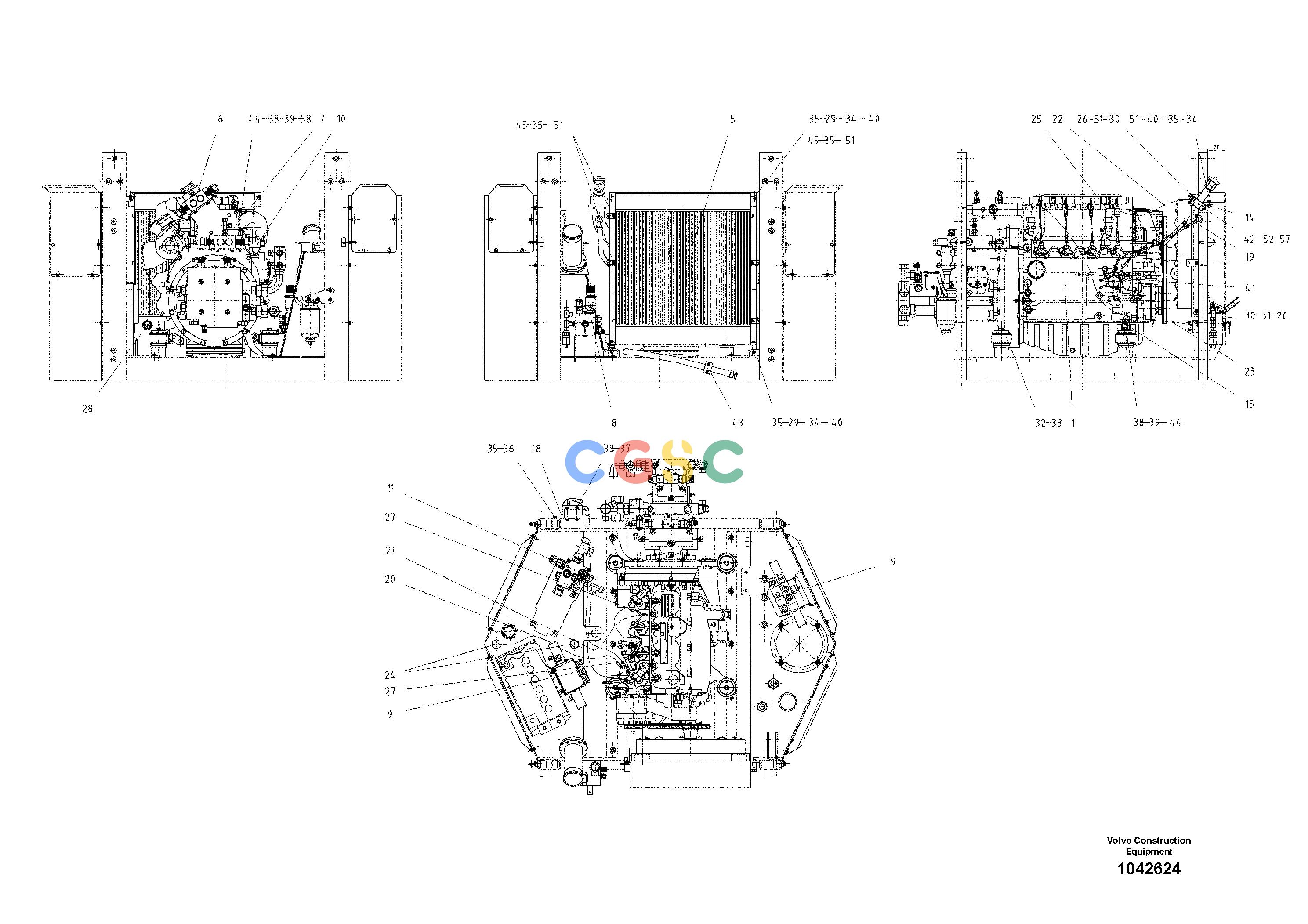

沃尔沃零件查询DD95 Drive AssemblyS/N 20624 - NoneNone80747207Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
830 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM80747199
|
[1] |
Engine
|
|
| 14. |
RM80745557
|
[1] |
Retainer
|
|
| 15. |
RM80627771
|
[1] |
Angle plate
|
|
| 18. |
RM88070131
|
[1] |
Support
|
|
| 19. |
RM80747330
|
[1] |
Hose
|
|
| 20. |
RM80471279
|
[1] |
Hose
|
|
| 21. |
RM80704976
|
[1] |
Hose
|
|
| 22. |
RM80664097
|
[1] |
Hose
|
|
| 23. |
RM80664121
|
[1] |
Hose
|
|
| 24. |
RM14107775
|
[2] |
Fitting
|
|
| 25. |
RM14129795
|
[1] |
Elbow
|
|
| 5. |
RM80702285
|
[1] |
Combi-cooler
|
|
| 26. |
RM56289044
|
[4] |
Flange half
|
|
| 27. |
RM13936992
|
[2] |
Hose clamp
|
|
| 28. |
RM87985305
|
[1] |
Temperature sensor
|
NI1000
|
| 29. |
RM14068290
|
[3] |
Buffer
|
|
| 30. |
RM58833013
|
[2] |
O-ring
|
|
| 31. |
RM96713326
|
[8] |
Hexagon screw
|
|
| 32. |
RM96727540
|
[4] |
Hexagon screw
|
|
| 33. |
RM14261002
|
[4] |
Lock washer
|
|
| 34. |
RM96712799
|
[7] |
Hexagon nut
|
|
| 35. |
RM58854316
|
[13] |
Lock washer
|
|
| 6. |
RM80660830
|
[1] |
Control valve
|
VMA50, REAR
|
| 36. |
RM96713177
|
[2] |
Hexagon screw
|
|
| 37. |
RM96712252
|
[2] |
Hexagon screw
|
|
| 38. |
RM14083455
|
[4] |
Jam nut
|
S/N 17946-
|
| 39. |
RM96718820
|
[2] |
Hexagon screw
|
S/N 17946-
|
| 40. |
RM58867052
|
[4] |
Plain washer
|
|
| 41. |
RM14100457
|
[1] |
Sealing ring
|
|
| 42. |
RM10644227
|
[1] |
Clamp
|
|
| 43. |
RM14153100
|
[1] |
Clamp
|
|
| 44. |
RM13908777
|
[2] |
Hose clamp
|
S/N 17946-
|
| 45. |
RM14149256
|
[4] |
Hose clamp
|
|
| 7. |
RM80660806
|
[1] |
Control valve
|
VMA50, FRONT
|
| 51. |
RM96713185
|
[5] |
Hexagon screw
|
|
| 52. |
RM96714290
|
[2] |
Hexagon screw
|
|
| 57. |
RM14083448
|
[2] |
Jam nut
|
|
| 58. |
RM96712898
|
[2] |
Plain washer
|
S/N 17946-
|
| 8. |
RM80660848
|
[1] |
Brake valve
|
|
| 9. |
RM80663271
|
[2] |
Valve
|
|
| 10. |
RM80663222
|
[1] |
Valve
|
|
| 11. |
RM80660780
|
[1] |
Valve
|
|
| 13. |
RM80683048
|
[1] |
Wiring harness
|
|
