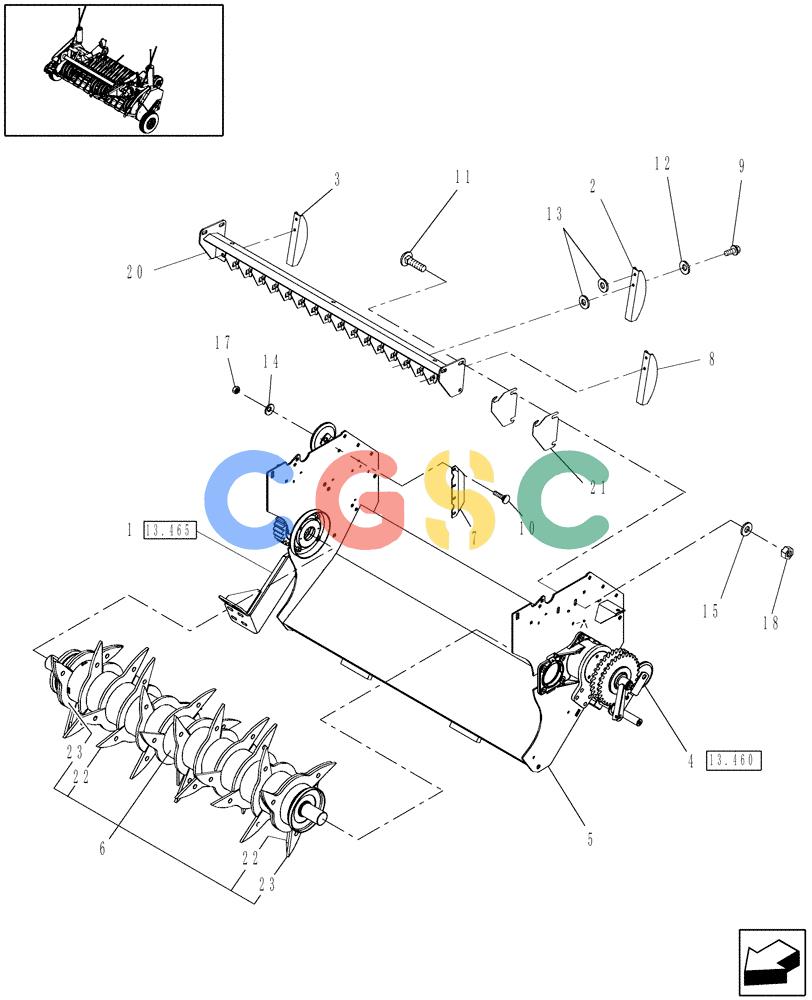

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Drive, Rotor, RH
|
| 2. |
87648312
|
[11] |
CHANNEL
|
NH
|
| 3. |
87723314
|
[1] |
SUPPORT
|
NH
RH
|
| 5. |
87046796
|
[1] |
FRAME ASSY
|
PA
Rotor Feeder, Red, Serial Range: -Y9N043084 Superseded by part number: 87046797
|
| 5. |
87047358
|
[1] |
FRAME ASSY
|
PA
Rotor Feeder, Dk. Gray, Serial Range: -724808017
|
| 5. |
84188443
|
[1] |
FRAME
|
PLO
Rotor Feeder, Dk. Gray, Start Serial: Y9N043085
|
| 6. |
87036974
|
[1] |
ROTOR
|
PA
Feeder, Fingers 5/16" Tk. - 1 Pc.
|
| 6. |
84188471
|
[1] |
ROTOR
|
PLO
Feeder, Fingers 5/16" Tk. - 1 Pc., Start Serial: 724808018
|
| 7. |
87648570
|
[2] |
DEFLECTOR
|
NH
|
| 8. |
87723299
|
[1] |
SUPPORT
|
NH
LH
|
| 9. |
9804261
|
[26] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 10. |
9706703
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 11. |
86633356
|
[6] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 12. |
412655
|
[26] |
BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.6mm Thk
|
ZED
Superseded by part number: 11198574
|
| 13. |
140017
|
[6/AR] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 14. |
322357
|
[8] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 15. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 17. |
9804276
|
[8] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 18. |
9804278
|
[6] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 20. |
87648574
|
[1] |
GRILLE
|
NH
|
| 21. |
87648668
|
[6/AR] |
SHIM,125mm OD x 1mm Thk
|
NH
|
| 22. |
87032628
|
[12] |
FINGER
|
PA
Large, 422 mm OD
|
| 22. |
87048145
|
[12] |
FINGER
|
PLO
X-Large, 455 mm OD, Start Serial: 724808018
|
| 23. |
87032629
|
[2] |
FINGER
|
PA
Small, 399 mm OD
|
