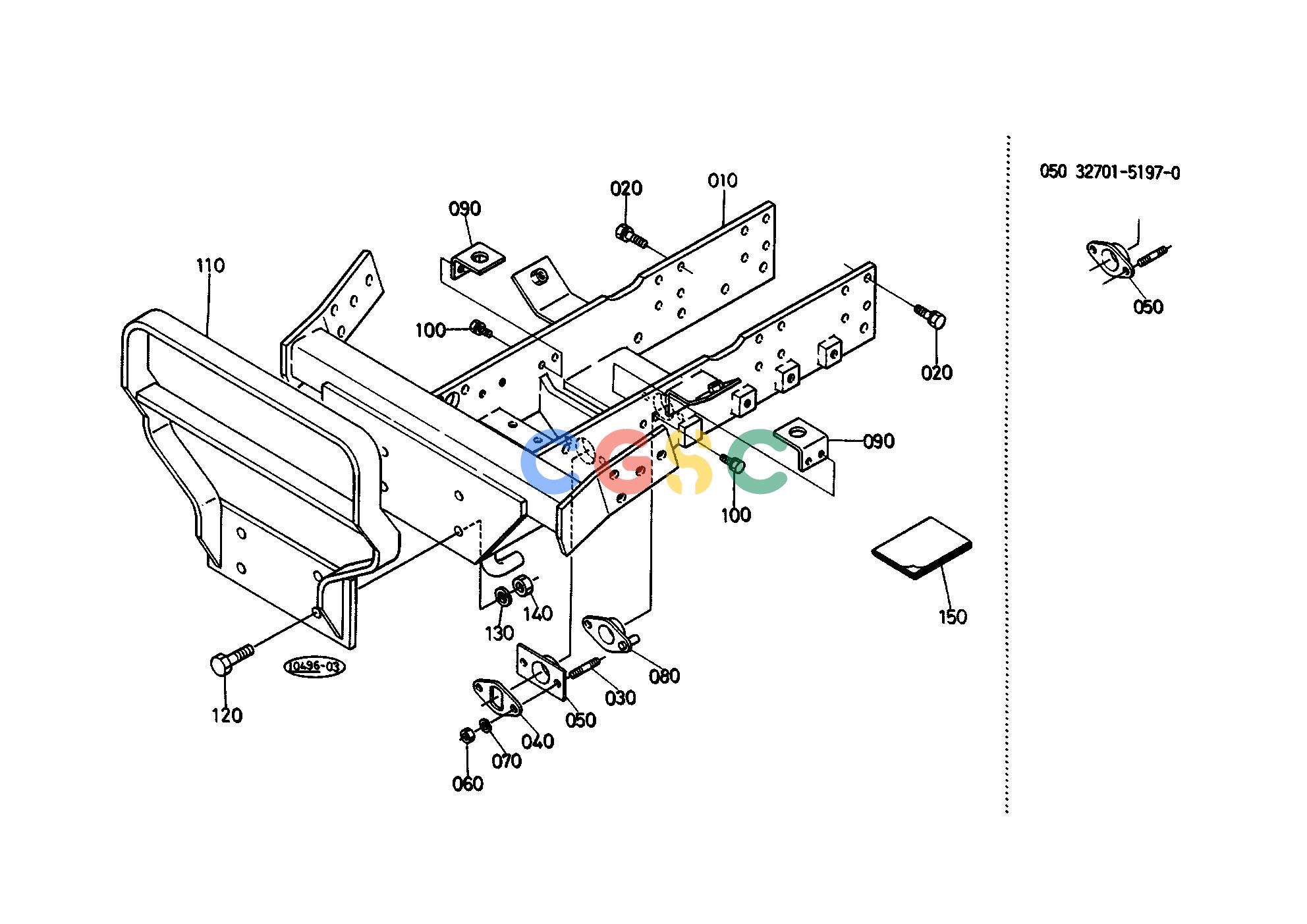

久保田零件查询T08200 FRONT AXLE FRAME FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270151900
|
[1] |
COMP.FRAME F.AXLE
|
66.0000(lbs); 30.000
|
| 020. |
0113351025
|
[16] |
BOLT
|
0.0506(lbs); 0.023
|
| 030. |
0151751022
|
[2] |
STUD
|
0.0440(lbs); 0.020
|
| 040. |
3270151960
|
[1] |
WASHER LOCK
|
0.1980(lbs); 0.090
|
| 050. |
3270151970
|
[1] |
BUSH
|
0.2640(lbs); 0.120
|
| 050. |
6780051972
|
[1] |
BUSH
|
0.3300(lbs); 0.150
|
| 060. |
0211450100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 080. |
6780051980
|
[1] |
BUSH
|
0.2750(lbs); 0.125
|
| 090. |
6780051994
|
[2] |
SUPPORT RADIATOR
|
0.2794(lbs); 0.127
|
| 100. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 110. |
3270196610
|
[1] |
GUARD FRONT
|
0.0000(lbs); 0.000
|
| 120. |
7559904530
|
[4] |
HEX.BOLT(1/2-20UNF)
|
0.1100(lbs); 0.050
|
| 130. |
7559933016
|
[4] |
WASHER SPRING LOCK
|
0.1760(lbs); 0.080
|
| 140. |
7559931025
|
[4] |
HEX.NUT(1/2-20UNF)
|
0.0330(lbs); 0.015
|
| 150. |
3270196630
|
[1] |
MANUAL STRUCTURE
|
0.0000(lbs); 0.000
|
