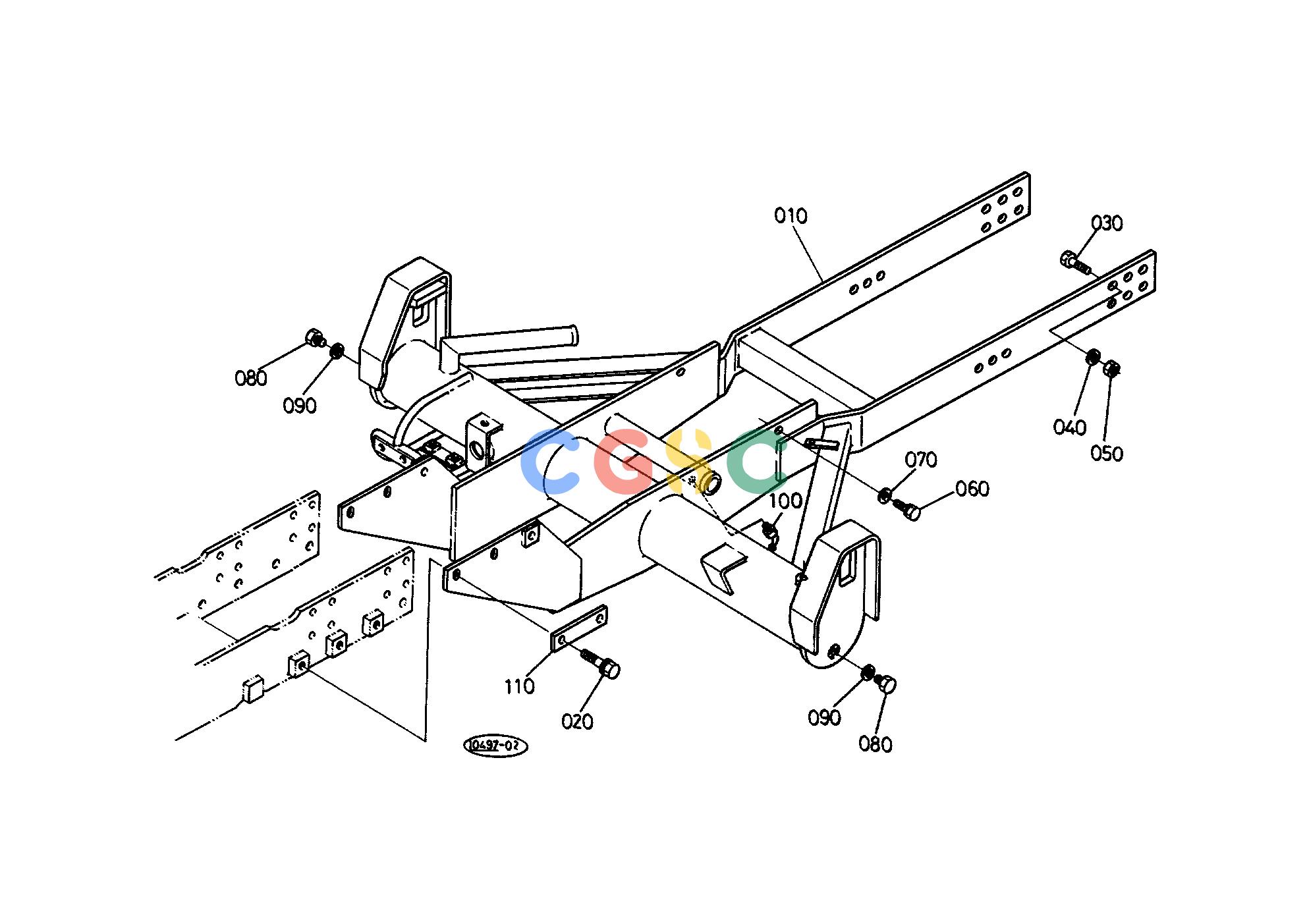

久保田零件查询T08300 MAIN FRAME FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
391 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270152914
|
[1] |
COMP.FRAME MAIN
|
187.0000(lbs); 85.00
|
| 020. |
3270152930
|
[6] |
BOLT UBS
|
0.1100(lbs); 0.050
|
| 030. |
0177951245
|
[12] |
BOLT UBS
|
0.1320(lbs); 0.060
|
| 040. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 050. |
0207650120
|
[12] |
NUT
|
0.0330(lbs); 0.015
|
| 060. |
0113351030
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 070. |
0401350100
|
[4] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 080. |
0633135012
|
[2] |
PLUG
|
0.0528(lbs); 0.024
|
| 090. |
0471400120
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 100. |
6711144250
|
[1] |
NIPPLE GREASE
|
0.0110(lbs); 0.005
|
| 100. |
H666099100
|
[1] |
NIPPLE,GREASE
|
0.0110(lbs); 0.005
|
| 110. |
3270152920
|
[2] |
SPACER
|
0.3520(lbs); 0.160
|
