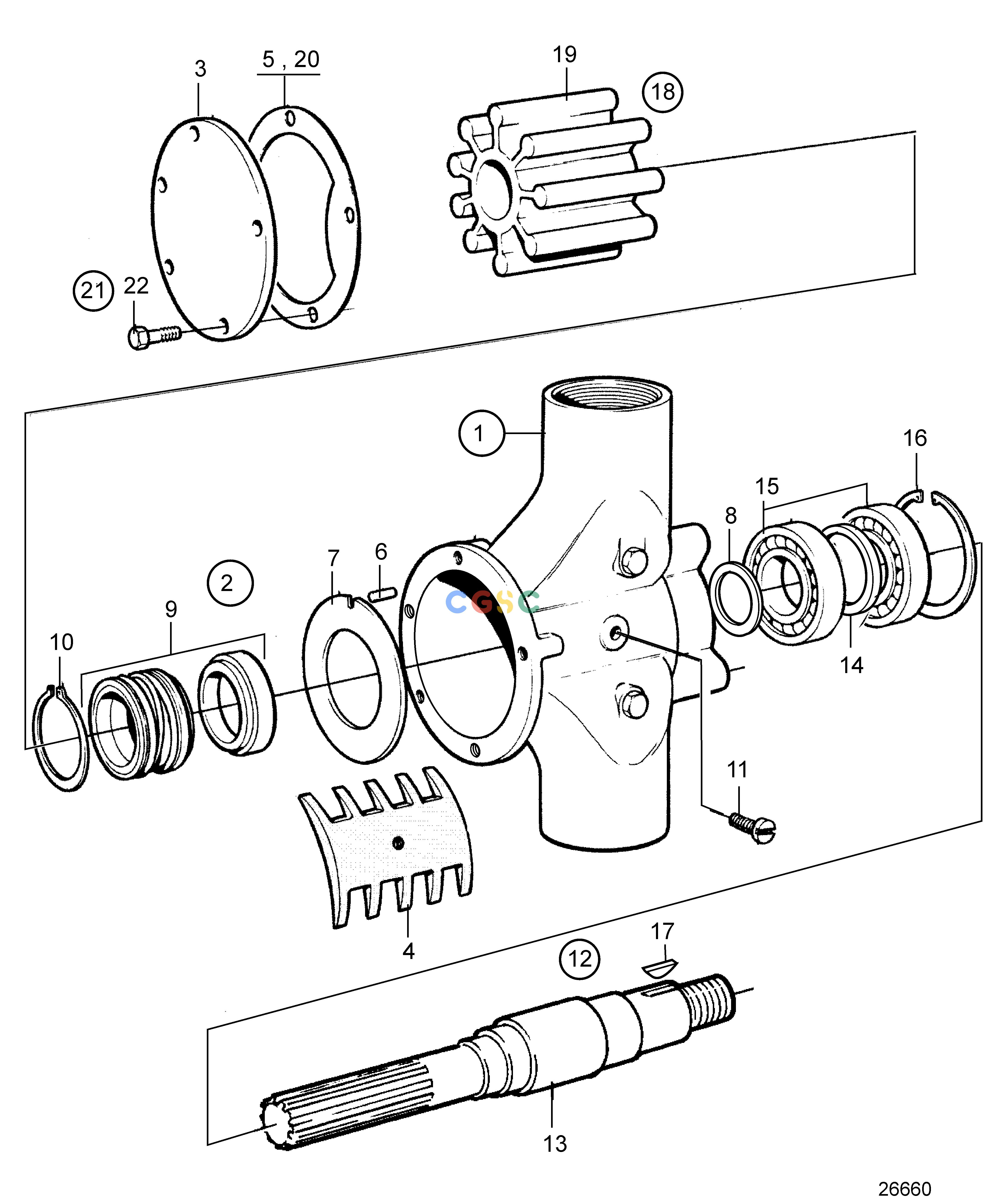

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EMiscellaneous EquipmentFlushing Pump 11/4'' Bilge Pump 2'': BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
647 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846105
|
[1] |
Bilge pump
|
2''
|
| 2. |
21951412
|
[1] |
Wear kit
|
|
| 3. |
863497
|
[1] |
Cap
|
|
| 4. |
849322
|
[1] |
Cam
|
|
| 5. |
3829314
|
[1] |
Gasket
|
|
| 6. |
826229
|
[1] |
Locking pin
|
|
| 7. |
826230
|
[1] |
Wear washer
|
|
| 8. |
|
|
|
|
| 9. |
822767
|
[1] |
Sealing
|
|
| 10. |
943468
|
[2] |
Snap ring
|
|
| 11. |
825730
|
[1] |
Screw
|
|
| 12. |
21951469
|
[1] |
Shaft kit
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
21422639
|
[2] |
Ball bearing
|
|
| 16. |
21422641
|
[1] |
Retaining ring
|
|
| 17. |
|
|
|
|
| 18. |
21951364
|
[1] |
Impeller kit
|
|
| 19. |
|
|
|
|
| 20. |
3829314
|
[1] |
Gasket
|
|
| 21. |
21951340
|
[1] |
Screw kit
|
|
| 22. |
825730
|
[5] |
Screw
|
|
