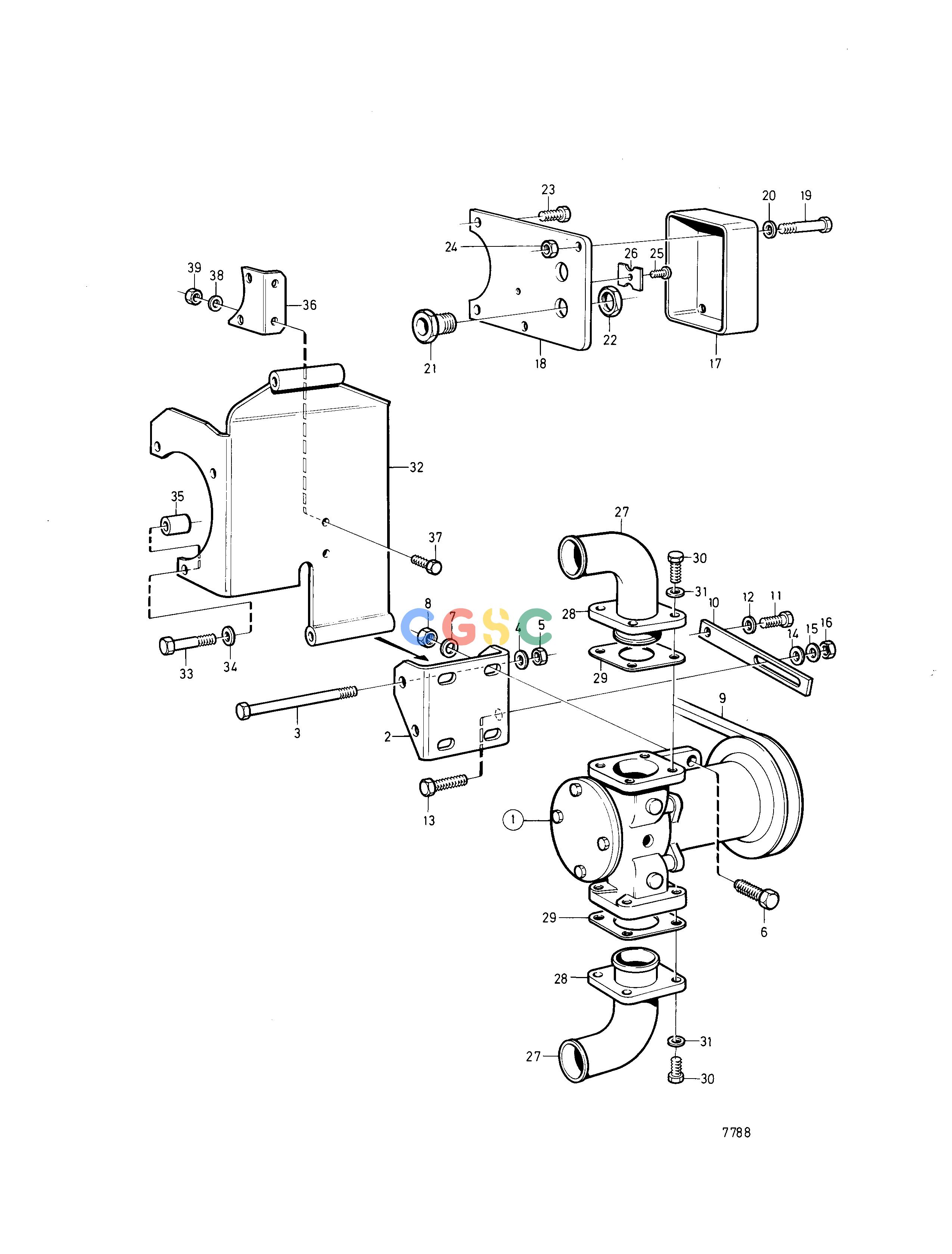

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EMiscellaneous EquipmentFlushing Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
567 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846104
|
[1] |
Sea water pump
|
1 1/4''
|
| 2. |
847275
|
[1] |
Bracket
|
|
| 3. |
941857
|
[1] |
Hexagon screw
|
|
| 4. |
940280
|
[1] |
Spring washer
|
|
| 5. |
950356
|
[1] |
Lock nut
|
|
| 6. |
940115
|
[4] |
Hexagon screw
|
|
| 7. |
942336
|
[4] |
Spring washer
|
|
| 8. |
955827
|
[4] |
Hexagon nut
|
|
| 9. |
847475
|
[1] |
V-belt
|
|
| 10. |
420427
|
[1] |
Tensioner
|
|
| 11. |
955535
|
[1] |
Hexagon screw
|
|
| 12. |
942336
|
[1] |
Spring washer
|
|
| 13. |
955525
|
[1] |
Hexagon screw
|
|
| 14. |
960141
|
[1] |
Washer
|
|
| 15. |
941907
|
[1] |
Spring washer
|
|
| 16. |
950353
|
[1] |
Lock nut
|
|
| 17. |
837392
|
[1] |
Cap
|
|
| 18. |
846233
|
[1] |
Bracket
|
|
| 19. |
956301
|
[2] |
Cross recessed screw
|
|
| 20. |
941905
|
[2] |
Spring washer
|
|
| 21. |
881192
|
[1] |
Grommet
|
|
| 21. |
822327
|
[1] |
Grommet
|
|
| 22. |
880243
|
[2] |
Nut
|
|
| 23. |
955525
|
[2] |
Hexagon screw
|
|
| 24. |
955780
|
[2] |
Hexagon nut
|
|
| 25. |
956049
|
[1] |
Cross recessed screw
|
|
| 26. |
182010
|
[1] |
Coupling piece
|
|
| 27. |
842028
|
[2] |
Hose attachment
|
|
| 28. |
842029
|
[2] |
Flange
|
|
| 29. |
862592
|
[2] |
Gasket
|
|
| 30. |
940114
|
[8] |
Hexagon screw
|
|
| 31. |
942336
|
[8] |
Spring washer
|
|
| 32. |
847274
|
[1] |
Bracket
|
|
| 33. |
955578
|
[3] |
Hexagon screw
|
|
| 34. |
941911
|
[3] |
Spring washer
|
|
| 35. |
910399
|
[1] |
Spacer ring
|
|
| 36. |
847276
|
[1] |
Bracket
|
|
| 37. |
940135
|
[2] |
Hexagon screw
|
|
| 38. |
941907
|
[2] |
Spring washer
|
|
| 39. |
955826
|
[2] |
Hexagon nut
|
|
