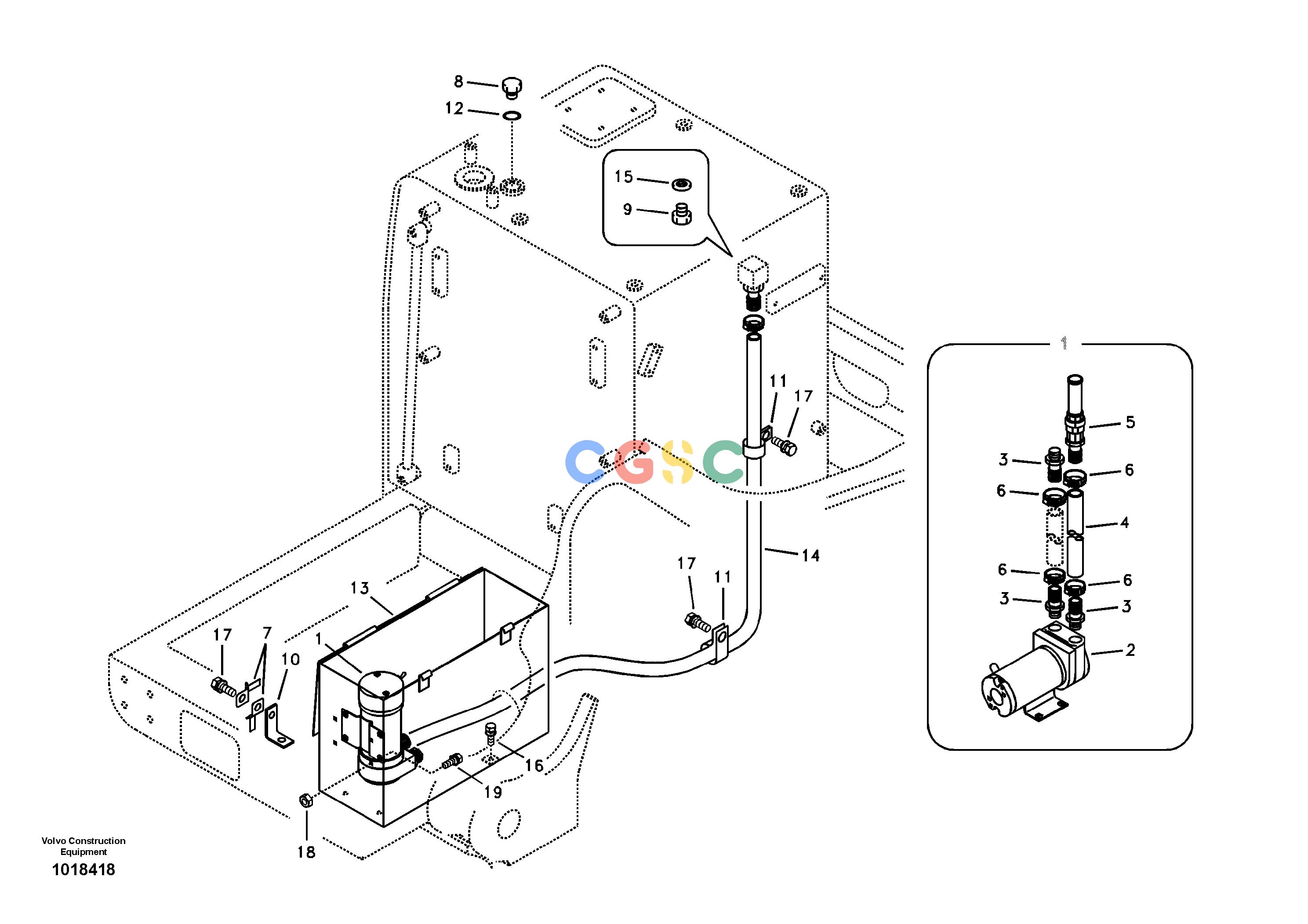

沃尔沃零件查询EC135B Fuel filling pump with assembling detailsSER NO 20001-200798277916-8278567NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
310 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14517572
|
[1] |
Refuelling pump
|
|
| |
VOE14544828
|
[1] |
Fuel Fill Pump
|
|
| 2. |
VOE14517745
|
[1] |
Refuelling pump
|
|
| |
VOE14524222
|
[1] |
Switch
|
|
| 3. |
VOE14517747
|
[2] |
Adapter
|
|
| 4. |
VOE14517750
|
[1] |
Hose
|
|
| 5. |
VOE14517753
|
[1] |
Valve
|
|
| 6. |
VOE14517754
|
[4] |
Clip
|
|
| 7. |
VOE14529136
|
|
Clip
|
|
| 8. |
VOE14529323
|
[1] |
Plug
|
|
| 9. |
VOE14515173
|
|
Plug
|
|
| 10. |
VOE14505501
|
|
Bracket
|
|
| 11. |
VOE14500297
|
[2] |
Clip
|
|
| 12. |
VOE990581
|
[1] |
O-ring
|
|
| 13. |
VOE14513737
|
[1] |
Bracket
|
|
| 14. |
VOE14881116
|
[1] |
Fuel hose
|
|
| 15. |
VOE13947629
|
|
Plane gasket
|
|
| 16. |
VOE946441
|
[4] |
Flange screw
|
|
| 17. |
VOE946471
|
[2] |
Flange screw
|
|
| 18. |
VOE993868
|
[4] |
Hexagon nut
|
|
| 19. |
VOE946934
|
[4] |
Flange screw
|
|
