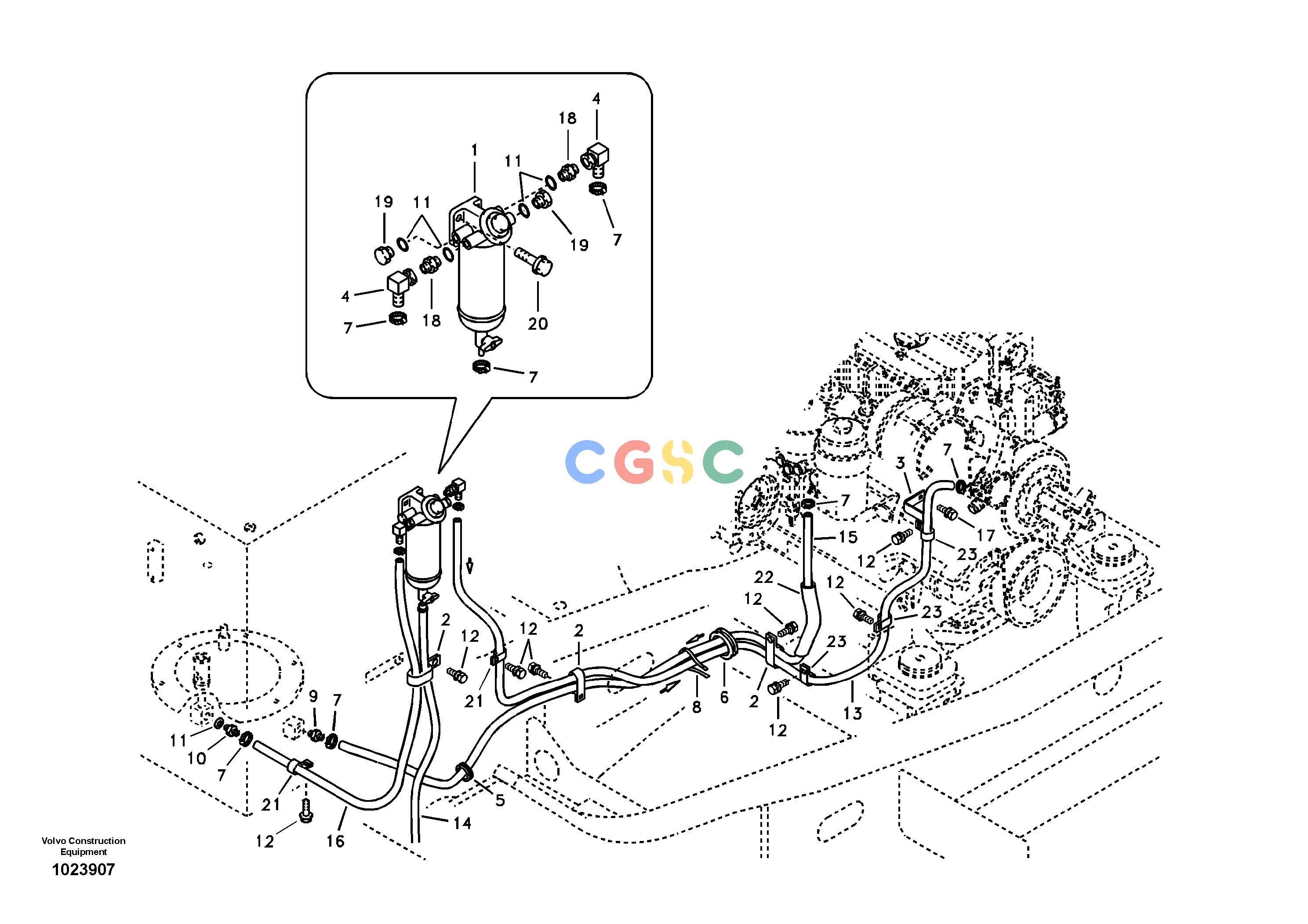

沃尔沃零件查询EC135B Fuel pipe - Fuel tankSER NO 20001-200798277787-8280167NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11110670
|
|
Water separator
|
|
| |
VOE11110673
|
|
Water separator
|
|
| |
VOE11110668
|
|
Filter
|
|
| |
VOE11713138
|
|
Filter housing
|
|
| |
VOE3943382
|
|
Bowl
|
|
| |
VOE11110736
|
|
Bowl
|
|
| 2. |
VOE14507450
|
[3] |
Clip
|
|
| 3. |
VOE14518364
|
[1] |
Bracket
|
SER NO 20001-20034
|
| |
VOE14518856
|
[1] |
Bracket
|
SER NO 20035-
|
| 4. |
VOE14516446
|
[2] |
Elbow
|
|
| 5. |
VOE14529351
|
[1] |
Grommet
|
|
| 6. |
SA9751-15016
|
[1] |
Grommet
|
|
| 7. |
VOE943470
|
[7] |
Hose clamp
|
|
| 8. |
SA9314-02100
|
[1] |
Cable tie
|
|
| 9. |
SA9411-08080
|
[1] |
Connector
|
|
| 10. |
VOE14880382
|
[1] |
Hose nipple
|
|
| 11. |
VOE13947622
|
[5] |
Plane gasket
|
|
| 12. |
VOE946471
|
[8] |
Flange screw
|
|
| 13. |
VOE14548262
|
[1] |
Fuel hose
|
SER NO 20001-20039
|
| |
VOE14548262
|
[1] |
Fuel hose
|
SER NO 20040-
|
| 14. |
VOE14881124
|
[1] |
Hose
|
|
| 15. |
VOE14548268
|
[1] |
Fuel hose
|
SER NO 20001-20034
|
| |
VOE14548261
|
[1] |
Fuel hose
|
SER NO 20035-20039
|
| |
VOE14548261
|
[1] |
Fuel hose
|
SER NO 20040-
|
| 16. |
VOE14881100
|
[1] |
Fuel hose
|
|
| 17. |
VOE946544
|
[1] |
Flange screw
|
SER NO 20001-20034
|
| |
VOE946544
|
[2] |
Flange screw
|
SER NO 20035-
|
| 18. |
SA9412-22050
|
[2] |
Connector
|
|
| 19. |
SA9415-22051
|
[2] |
Plug
|
|
| 20. |
VOE946329
|
[2] |
Flange screw
|
|
| 21. |
VOE942810
|
[2] |
Clamp
|
|
| 22. |
SA9443-30305
|
[1] |
Hose protection
|
SER NO 20001-20039
|
| 23. |
VOE942810
|
[3] |
Clamp
|
SER NO 20001-20039
|
| |
SA9315-02201
|
[3] |
Clip
|
SER NO 20040-
|
