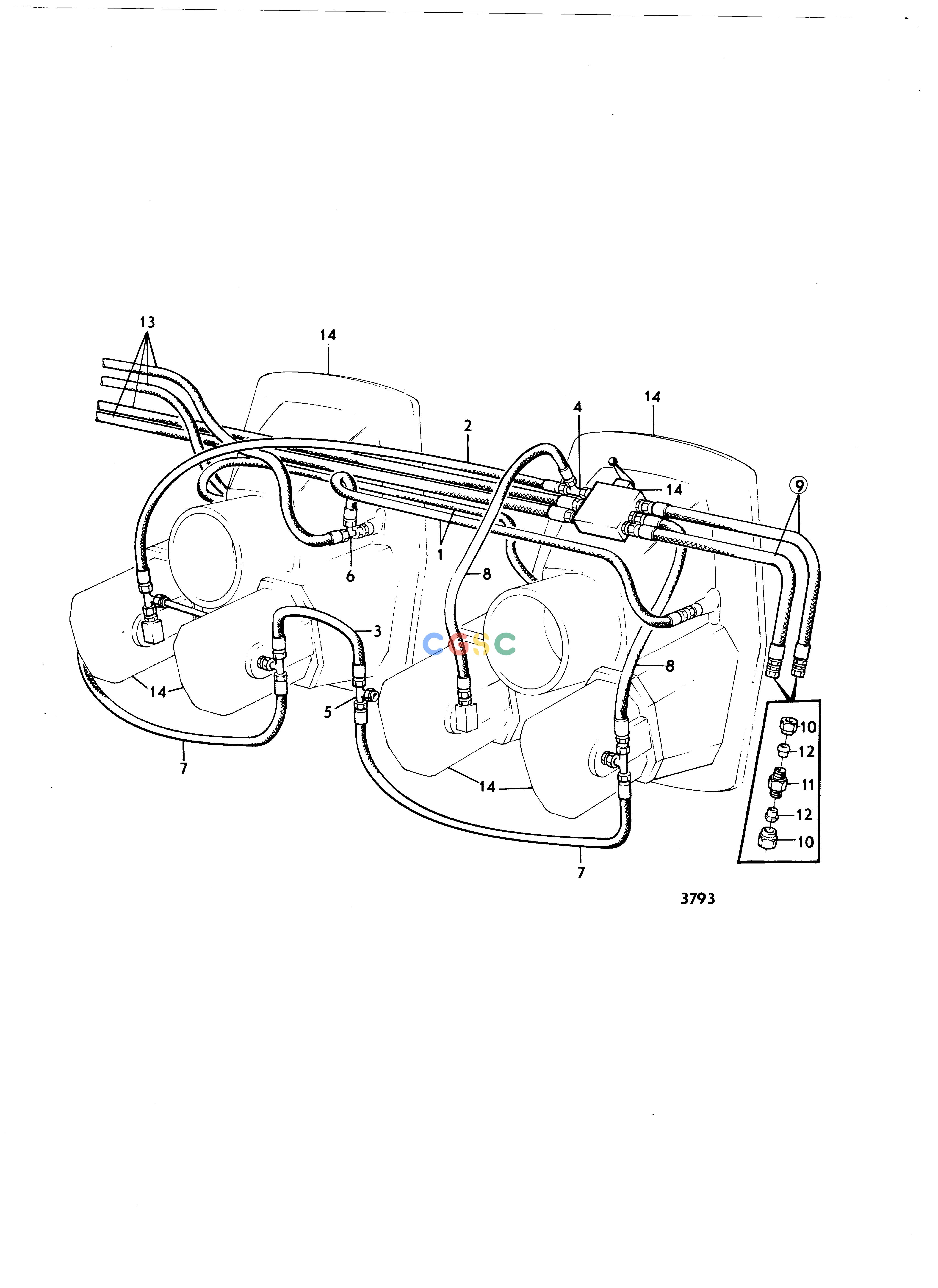

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ESteering SystemConnecting Components for Twin InstallationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
839230
|
[2] |
Connecting hose
|
|
| 2. |
832438
|
[1] |
Hydraulic hose
|
|
| 3. |
832395
|
[1] |
Hose
|
|
| 4. |
944262
|
[1] |
Clutch
|
|
| 5. |
944525
|
[1] |
T-nipple
|
|
| 6. |
944260
|
[2] |
T-nipple
|
|
| 7. |
832381
|
[2] |
Hydraulic hose
|
See group 4A
|
| 8. |
832380
|
[2] |
Hydraulic hose
|
See group 4A
|
| 9. |
832394
|
[2] |
Hose
|
See group 4A
|
| 10. |
956985
|
[2] |
Fitting nut
|
|
| 11. |
957057
|
[2] |
Nipple
|
For early production of 832394
|
| 12. |
956971
|
[2] |
Ferrule
|
|
| 13. |
839089
|
[4] |
Hose
|
See group 4A
|
| 14. |
|
|
|
See group 4A
|
