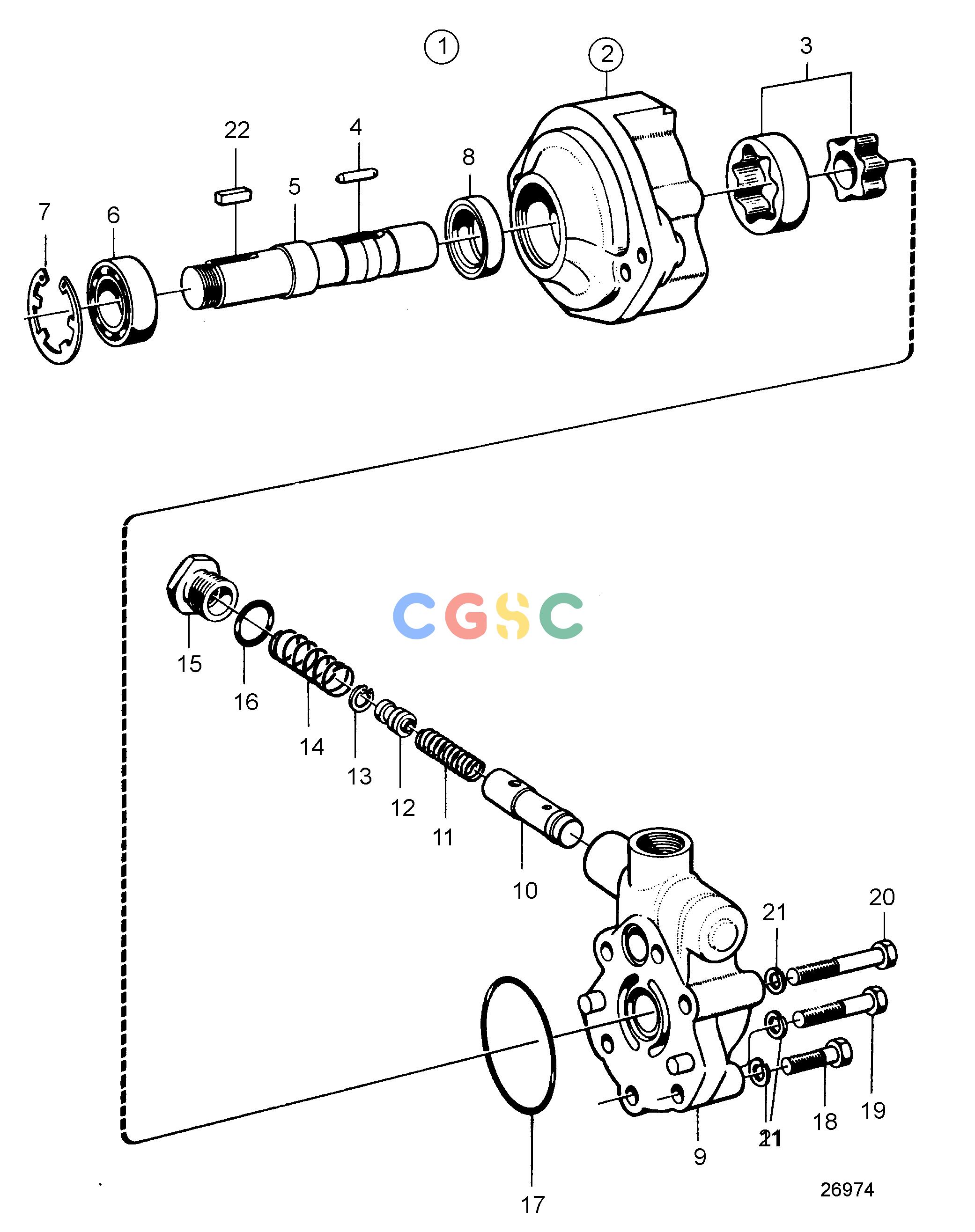

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ESteering SystemHydraulic PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
356506
|
[1] |
Hydraulic pump
|
|
| 2. |
6631726
|
[1] |
Oil pump housing
|
|
| 3. |
|
|
|
|
| 4. |
338433
|
[1] |
Lock pin
|
|
| 5. |
6631728
|
[1] |
Shaft
|
|
| 6. |
181786
|
[1] |
Ball bearing
|
|
| 7. |
323472
|
[1] |
Lock ring
|
|
| 8. |
6631727
|
[1] |
Sealing ring
|
|
| 9. |
346461
|
[1] |
Cover
|
|
| 10. |
338430
|
[1] |
Sleeve
|
|
| 11. |
347140
|
[1] |
Spring
|
|
| 12. |
323482
|
[1] |
Piston
|
|
| 13. |
323484
|
[1] |
Lock ring
|
|
| 14. |
323485
|
[1] |
Spring
|
|
| 15. |
323486
|
[1] |
Fitting
|
|
| 16. |
323487
|
[1] |
O-ring
|
|
| 17. |
925256
|
[1] |
O-ring
|
|
| 18. |
955318
|
[1] |
Hexagon screw
|
L=30mm
|
| 19. |
955321
|
[2] |
Hexagon screw
|
L=45mm
|
| 20. |
955323
|
[3] |
Hexagon screw
|
L=55mm
|
| 21. |
941908
|
[6] |
Spring washer
|
|
| 22. |
6631944
|
[1] |
Key
|
|
