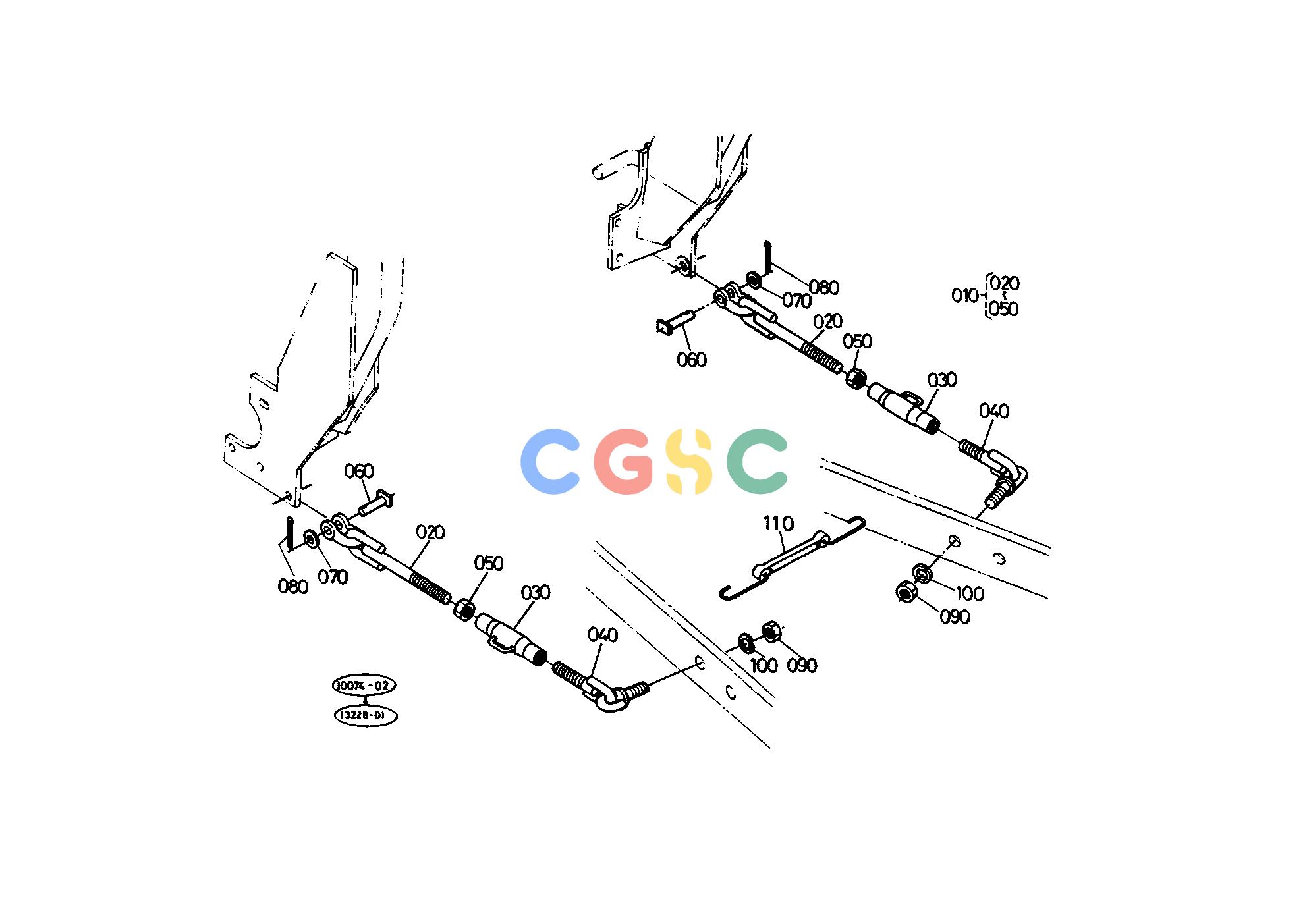

久保田零件查询T10500 CHECK CHAIN HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6783071500
|
[2] |
ASSY CHAIN CHECK
|
1.6060(lbs); 0.730
|
| 020. |
6783071510
|
[2] |
JOINT CHAIN
|
0.4840(lbs); 0.220
|
| 030. |
9951122840
|
[2] |
TURNBUCKLE
|
0.4180(lbs); 0.190
|
| 040. |
6783071820
|
[2] |
JOINT CHAIN
|
0.6050(lbs); 0.275
|
| 050. |
0205450140
|
[2] |
NUT
|
0.0506(lbs); 0.023
|
| 060. |
9957122820
|
[2] |
PIN
|
0.0660(lbs); 0.030
|
| 070. |
0401150100
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 080. |
0551150318
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
0207450160
|
[2] |
NUT
|
0.0638(lbs); 0.029
|
| 100. |
0451250160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 110. |
3818771750
|
[1] |
COMP.RUBBER
|
0.0000(lbs); 0.000
|
