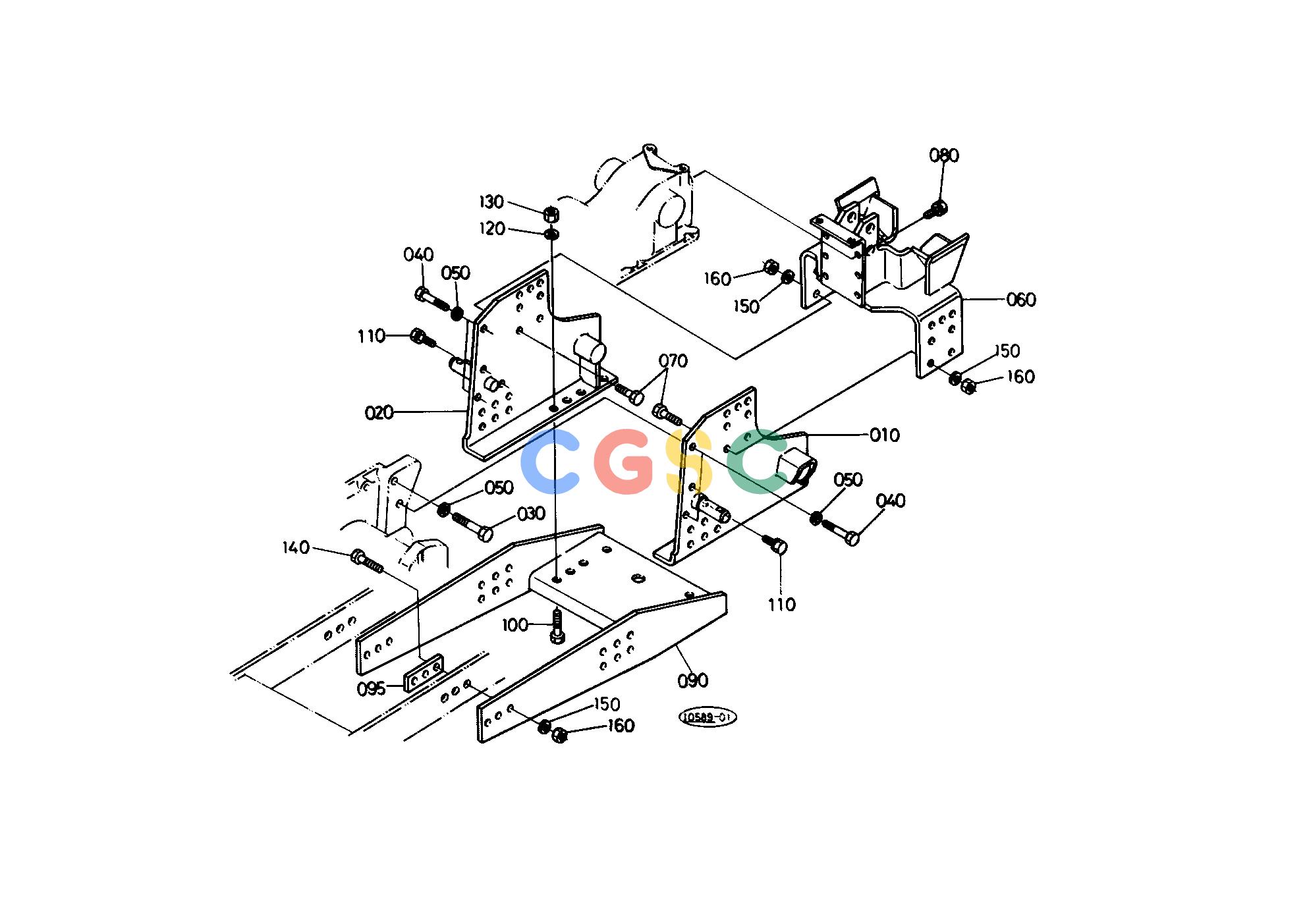

久保田零件查询T10600 TOP LINK BRACKET HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
737 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270125412
|
[1] |
PLATE SIDE LH
|
16.5000(lbs); 7.500
|
| 020. |
3270125422
|
[1] |
PLATE SIDE RH
|
16.6100(lbs); 7.550
|
| 030. |
0115351265
|
[2] |
BOLT
|
0.1430(lbs); 0.065
|
| 040. |
0115351275
|
[6] |
BOLT
|
0.1650(lbs); 0.075
|
| 050. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 060. |
3270125450
|
[1] |
BRACKET TOP LINK
|
20.1520(lbs); 9.160
|
| 070. |
3270127460
|
[14] |
BOLT
|
0.0990(lbs); 0.045
|
| 080. |
0112351025
|
[6] |
BOLT
|
0.0440(lbs); 0.020
|
| 090. |
3270129313
|
[1] |
PLATE LOWER
|
26.9940(lbs); 12.270
|
| 095. |
3270129320
|
[2] |
SPACER
|
0.2640(lbs); 0.120
|
| 100. |
0177951435
|
[8] |
BOLT UBS
|
0.1540(lbs); 0.070
|
| 110. |
0112351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 120. |
0451250140
|
[8] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 130. |
0207650140
|
[8] |
NUT
|
0.0484(lbs); 0.022
|
| 140. |
0177951240
|
[6] |
BOLT UBS
|
0.1188(lbs); 0.054
|
| 150. |
0451250120
|
[20] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 160. |
0207650120
|
[20] |
NUT
|
0.0330(lbs); 0.015
|
