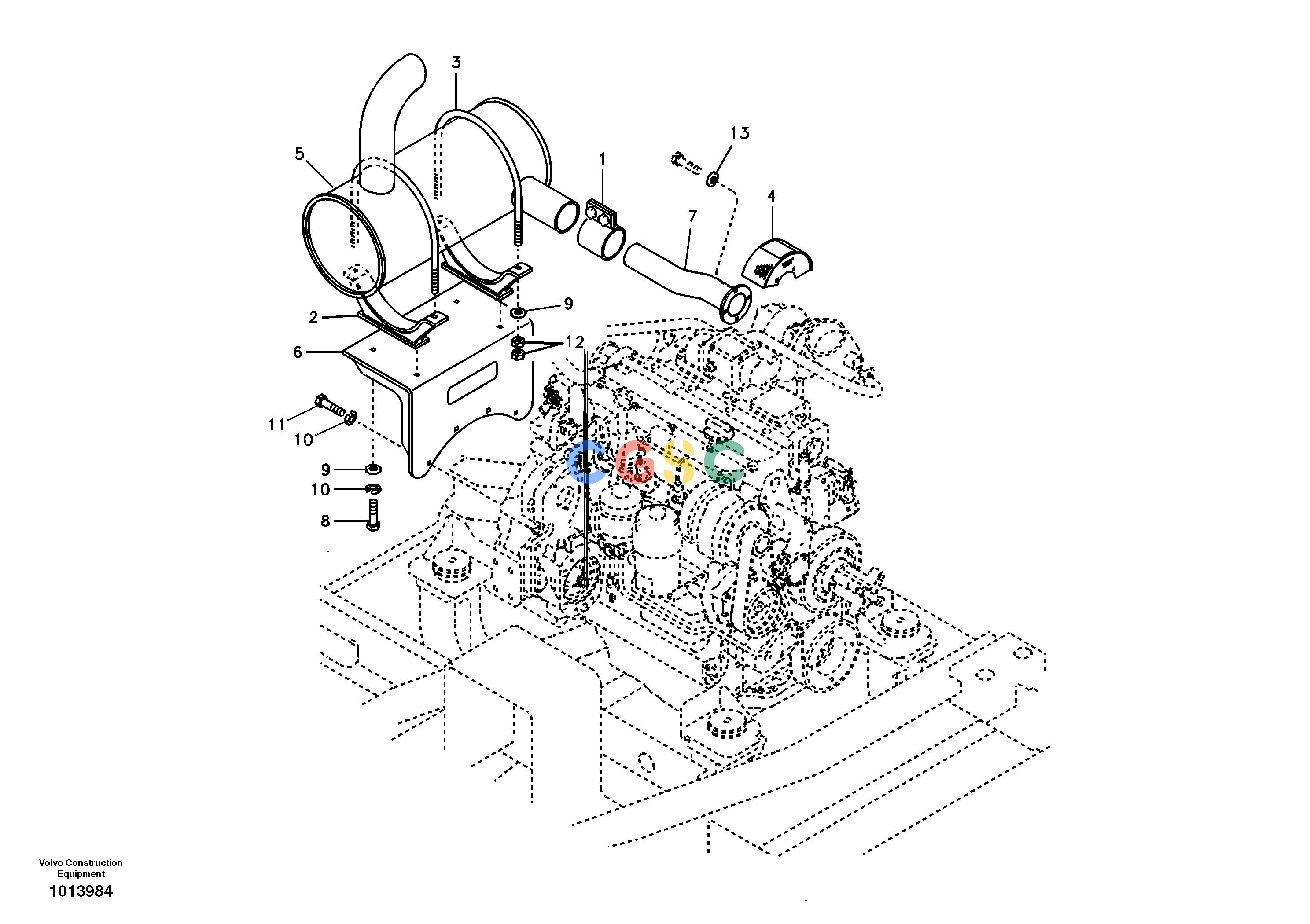

沃尔沃零件查询EC135B Exhaust systemSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
139 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14528382
|
[1] |
Clamp
|
|
| 2. |
VOE14519158
|
[2] |
Bracket
|
|
| 3. |
VOE14528384
|
[2] |
U-bolt
|
|
| 4. |
VOE14524315
|
[1] |
Heat Shield
|
|
| 5. |
VOE14504919
|
[1] |
Silencer
|
|
| 6. |
VOE14505996
|
[1] |
Bracket
|
|
| 7. |
VOE14505994
|
[1] |
Tube
|
|
| 8. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 9. |
VOE992040
|
[8] |
Plain washer
|
|
| 10. |
VOE955922
|
[8] |
Spring washer
|
|
| 11. |
VOE997437
|
[4] |
Hexagon screw
|
|
| 12. |
VOE983304
|
[8] |
Hexagon nut
|
|
| 13. |
VOE13955894
|
[2] |
Washer
|
|
