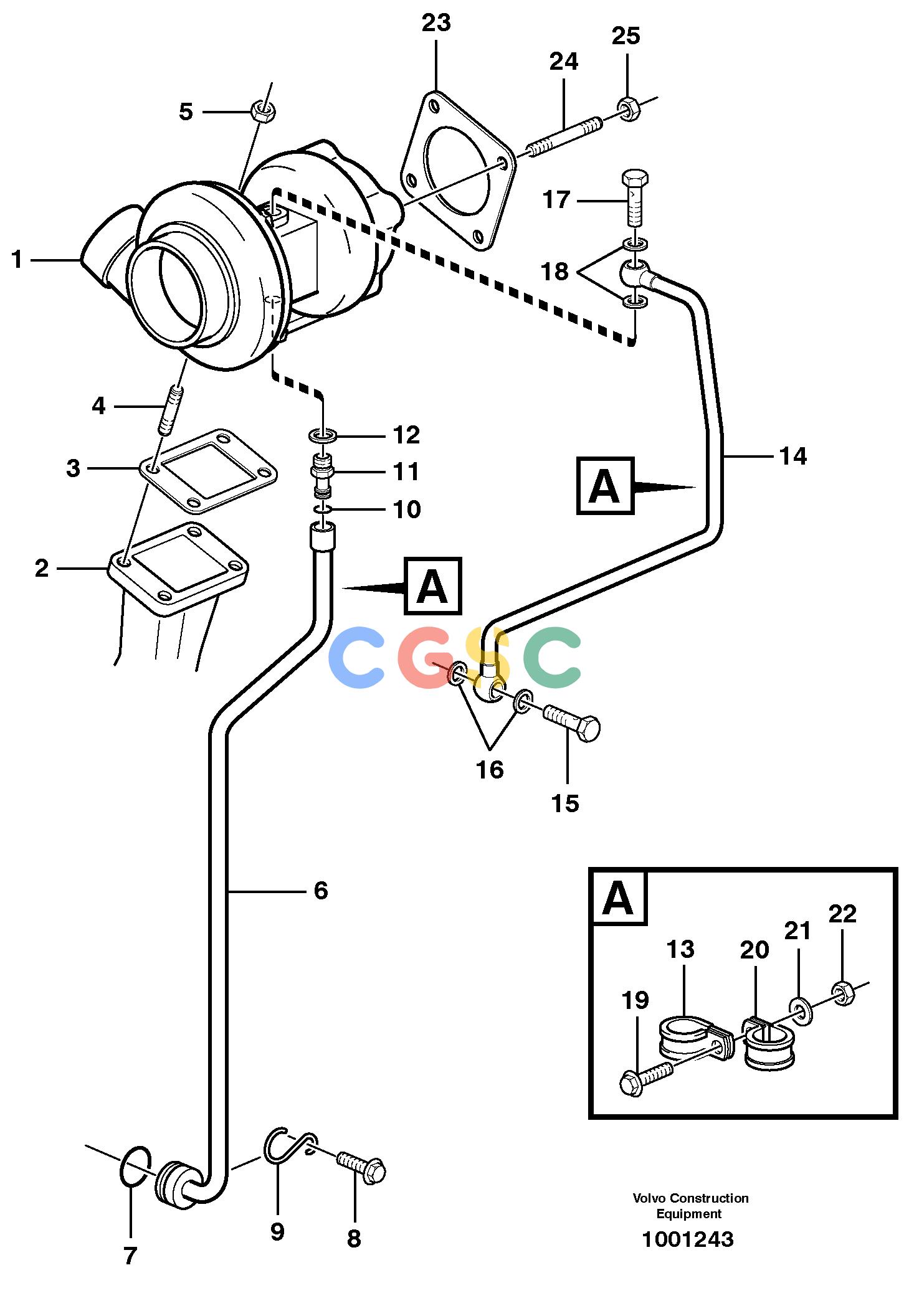

沃尔沃零件查询EC135B Turbocharger with fitting partsSER NO 20001-200798278919-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20460945
|
[1] |
Turbocharger
|
|
| |
|
[1] |
Repair Kit
|
|
| 2. |
|
[1] |
Exhaust Pipe
|
|
| 3. |
VOE20405590
|
[1] |
Gasket
|
|
| 4. |
VOE20412318
|
[4] |
Stud
|
|
| 5. |
VOE20517048
|
[4] |
Hexagon nut
|
|
| 6. |
VOE20459180
|
[1] |
Return line
|
|
| 7. |
VOE20405822
|
[1] |
Sealing ring
|
|
| 8. |
VOE20405792
|
[2] |
Screw
|
|
| 9. |
VOE21524802
|
[1] |
Hook
|
|
| 10. |
VOE20459172
|
[1] |
Sealing ring
|
|
| 11. |
VOE20459171
|
[1] |
Nipple
|
|
| 12. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 13. |
VOE20459181
|
[1] |
Clamp
|
|
| 14. |
VOE20459184
|
[1] |
Feed line
|
|
| 15. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 16. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 17. |
VOE20460936
|
[1] |
Hollow screw
|
|
| 18. |
VOE20460061
|
[2] |
Sealing ring
|
|
| 19. |
VOE20450728
|
[1] |
Bolt
|
|
| 20. |
VOE20450987
|
[1] |
Clamp
|
|
| 21. |
VOE973494
|
[1] |
Washer
|
|
| 22. |
VOE20460939
|
[1] |
Hexagon nut
|
|
| 23. |
VOE20459236
|
[1] |
Gasket
|
|
| 24. |
VOE20459235
|
[4] |
Stud
|
|
| 25. |
VOE20517048
|
[4] |
Hexagon nut
|
|
