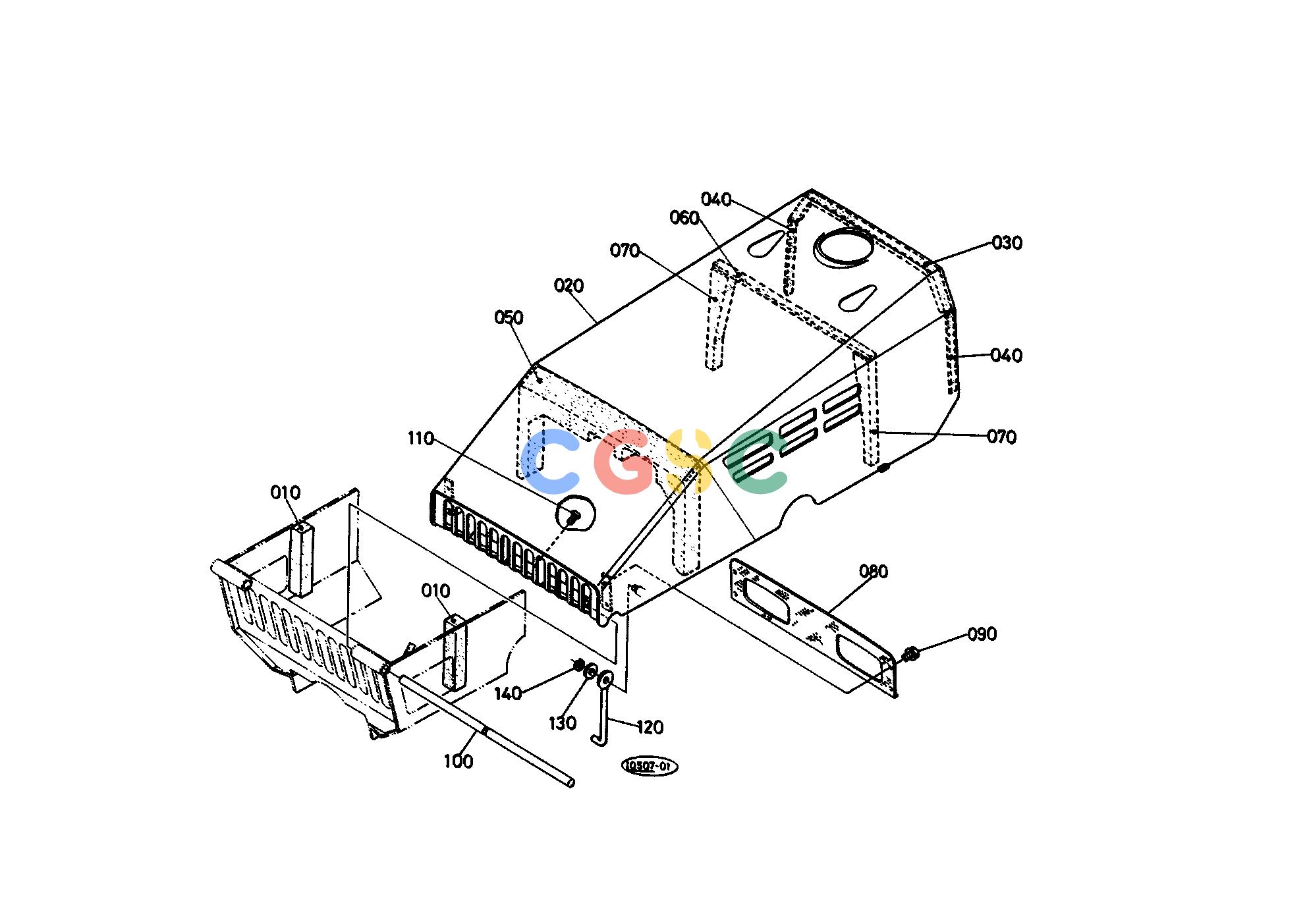

久保田零件查询T10700 HOOD (BONNET) HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270154520
|
[2] |
BLOCK DUSTPROOF
|
0.0154(lbs); 0.007
|
| 020. |
3270154100
|
[1] |
COMP.BONNET
|
39.6000(lbs); 18.000
|
| 030. |
6602154150
|
[1] |
CUSHION UPPER
|
0.1760(lbs); 0.080
|
| 040. |
3270155520
|
[2] |
TAPE SOFT SIDE
|
0.0660(lbs); 0.030
|
| 050. |
3270154140
|
[1] |
BLOCK DUSTPROOF
|
0.0990(lbs); 0.045
|
| 060. |
3270154850
|
[1] |
TAPE
|
0.0220(lbs); 0.010
|
| 070. |
3270154530
|
[2] |
BLOCK DUSTHEAT
|
0.0176(lbs); 0.008
|
| 080. |
3270154210
|
[1] |
NET FRONT GRILLE
|
0.2200(lbs); 0.100
|
| 090. |
0175450610
|
[4] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
3270154260
|
[1] |
SHAFT HINGE
|
1.4300(lbs); 0.650
|
| 110. |
0301750610
|
[1] |
SCREW PAN HEAD
|
0.0088(lbs); 0.004
|
| 120. |
3270154270
|
[1] |
LINK
|
0.1980(lbs); 0.090
|
| 130. |
0401150120
|
[1] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 140. |
0461300100
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
