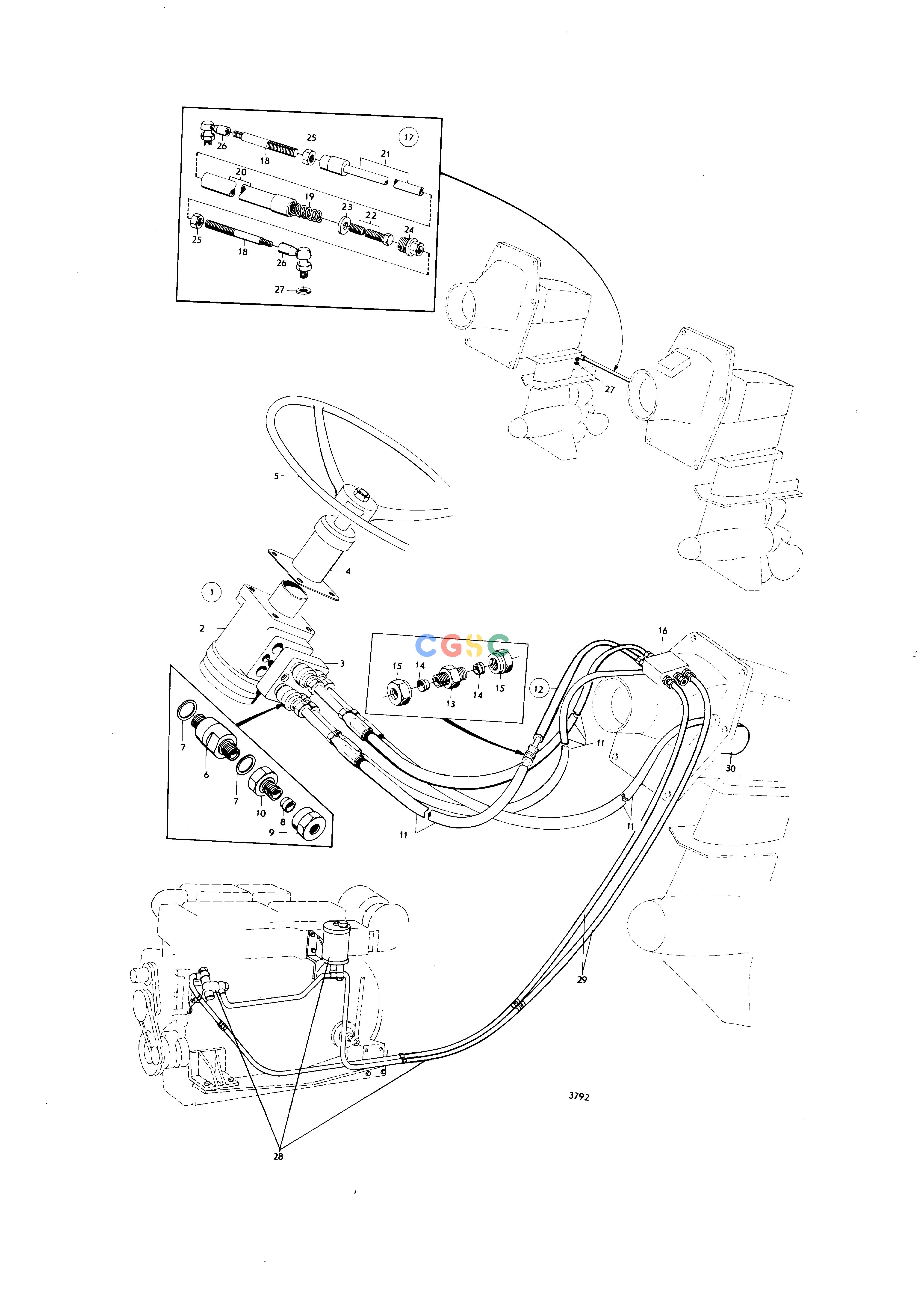

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ESteering SystemHydraulic Steering Mechanism with Connecting ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
492 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Single engine installation.
|
| 1. |
850138
|
[1] |
Control unit
|
Twin engine installation
|
| 1. |
850137
|
[1] |
Control unit
|
Single engine installation
|
| 2. |
839226
|
[1] |
Steering head
|
Single engine installation., Included in 839088., OSP80/150-001
|
| 2. |
850134
|
[1] |
Steering head
|
Single engine installation., Included in 850137., OSPB80/150-0026
|
| 2. |
839225
|
[1] |
Steering head
|
Twin engine installation., Included in 839229., OSPA160/150-0003
|
| 2. |
850135
|
[1] |
Steering head
|
Twin engine installation., Included in 850138., OSPB160/150-0043
|
| 3. |
839227
|
[1] |
Valve body
|
OVP10/152-0030
|
| 4. |
839228
|
[1] |
Steering column
|
Included in 839088., Included in 839229., OTP75/150-4102
|
| 4. |
850136
|
[1] |
Steering column, wheel tube other components
|
Included in 850137., Included in 850138., OTPB75/150-5040
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
832385
|
[4] |
Oil filter
|
|
| 7. |
943908
|
[8] |
Gasket
|
|
| 8. |
956971
|
[4] |
Ferrule
|
|
| 9. |
956985
|
[4] |
Fitting nut
|
|
| 10. |
945359
|
[4] |
Nipple
|
|
| 11. |
839089
|
[4] |
Hose
|
|
| 12. |
839094
|
[1] |
Connecting hose
|
L=1000mm
|
| 13. |
957057
|
[1] |
Nipple
|
For early production of 839094
|
| 14. |
956971
|
[1] |
Ferrule
|
|
| 15. |
956985
|
[1] |
Fitting nut
|
|
| 16. |
832296
|
[1] |
Overflow valve
|
See group 4A
|
| 17. |
832416
|
[1] |
Track rod
|
Twin engine installation., Alt
|
| 18. |
832417
|
[2] |
Push rod
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
832423
|
[1] |
Fitting
|
|
| 25. |
945855
|
[2] |
Nut
|
|
| 26. |
832436
|
[2] |
Ball joint
|
Alt
|
| 27. |
945094
|
[2] |
Washer
|
Alt
|
| 28. |
7743260_105
|
|
hydraulic pump and oil reservoir and installation comps
|
|
| 28. |
|
|
|
|
| 29. |
7743260_105
|
|
extension hose
|
|
| 30. |
|
|
|
See group 4C
|
