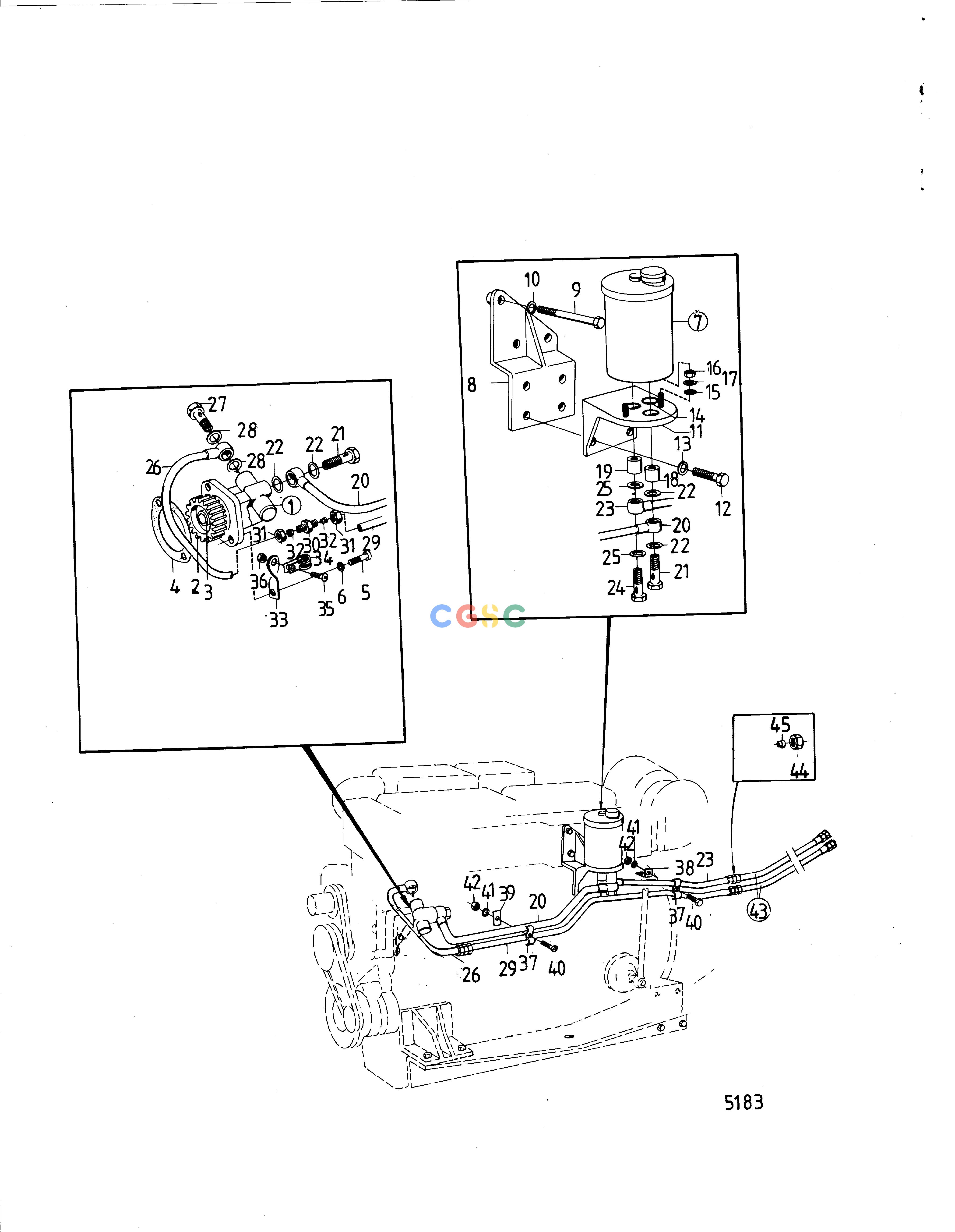

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ESteering SystemHydraulic Pump and Oil Reservoir and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
356506
|
[1] |
Hydraulic pump
|
|
| 2. |
421087
|
[1] |
Gear
|
|
| 3. |
346918
|
[1] |
Castle nut
|
|
| 4. |
421187
|
[1] |
Gasket
|
|
| 5. |
956586
|
[2] |
Hex. socket screw
|
|
| 6. |
942336
|
[2] |
Spring washer
|
|
| 7. |
327194
|
[1] |
Reservoir
|
|
| 8. |
836478
|
[1] |
Bracket
|
|
| 9. |
941251
|
[3] |
Hexagon screw
|
|
| 10. |
942336
|
[3] |
Spring washer
|
|
| 11. |
328378
|
[1] |
Bracket
|
|
| 12. |
940115
|
[4] |
Hexagon screw
|
|
| 13. |
942336
|
[4] |
Spring washer
|
|
| 14. |
328382
|
[2] |
O-ring
|
|
| 15. |
328381
|
[2] |
O-ring
|
|
| 16. |
955782
|
[2] |
Hexagon nut
|
|
| 17. |
941907
|
[2] |
Spring washer
|
|
| 18. |
328379
|
[1] |
Connecting sleeve
|
|
| 19. |
328380
|
[1] |
Connecting sleeve
|
|
| 20. |
836683
|
[1] |
Tube
|
|
| 21. |
191620
|
[2] |
Hollow screw
|
|
| 22. |
907132
|
[4] |
Gasket
|
|
| 23. |
837349
|
[1] |
Tube
|
|
| 24. |
26013
|
[1] |
Hollow screw
|
|
| 25. |
957181
|
[2] |
Gasket
|
|
| 26. |
837347
|
[1] |
Tube
|
|
| 27. |
190713
|
[1] |
Hollow screw
|
|
| 28. |
11996
|
[2] |
Gasket
|
|
| 29. |
843983
|
[1] |
Tube
|
|
| 30. |
957056
|
[1] |
Nipple
|
|
| 31. |
956984
|
[2] |
Fitting nut
|
|
| 32. |
956970
|
[2] |
Ferrule
|
|
| 33. |
825629
|
[1] |
Anchorage
|
|
| 34. |
952627
|
[1] |
Clamp
|
|
| 35. |
950046
|
[1] |
Cross recessed screw
|
|
| 36. |
950352
|
[1] |
Lock nut
|
|
| 37. |
836671
|
[2] |
Clamp
|
|
| 38. |
843233
|
[1] |
Anchorage
|
|
| 39. |
824570
|
[1] |
Washer
|
|
| 40. |
950046
|
[2] |
Cross recessed screw
|
|
| 41. |
941906
|
[2] |
Spring washer
|
|
| 42. |
950352
|
[2] |
Lock nut
|
|
| 43. |
832394
|
[2] |
Hose
|
See group 4A
|
| 44. |
956985
|
[2] |
Fitting nut
|
|
| 45. |
956970
|
[2] |
Ferrule
|
|
