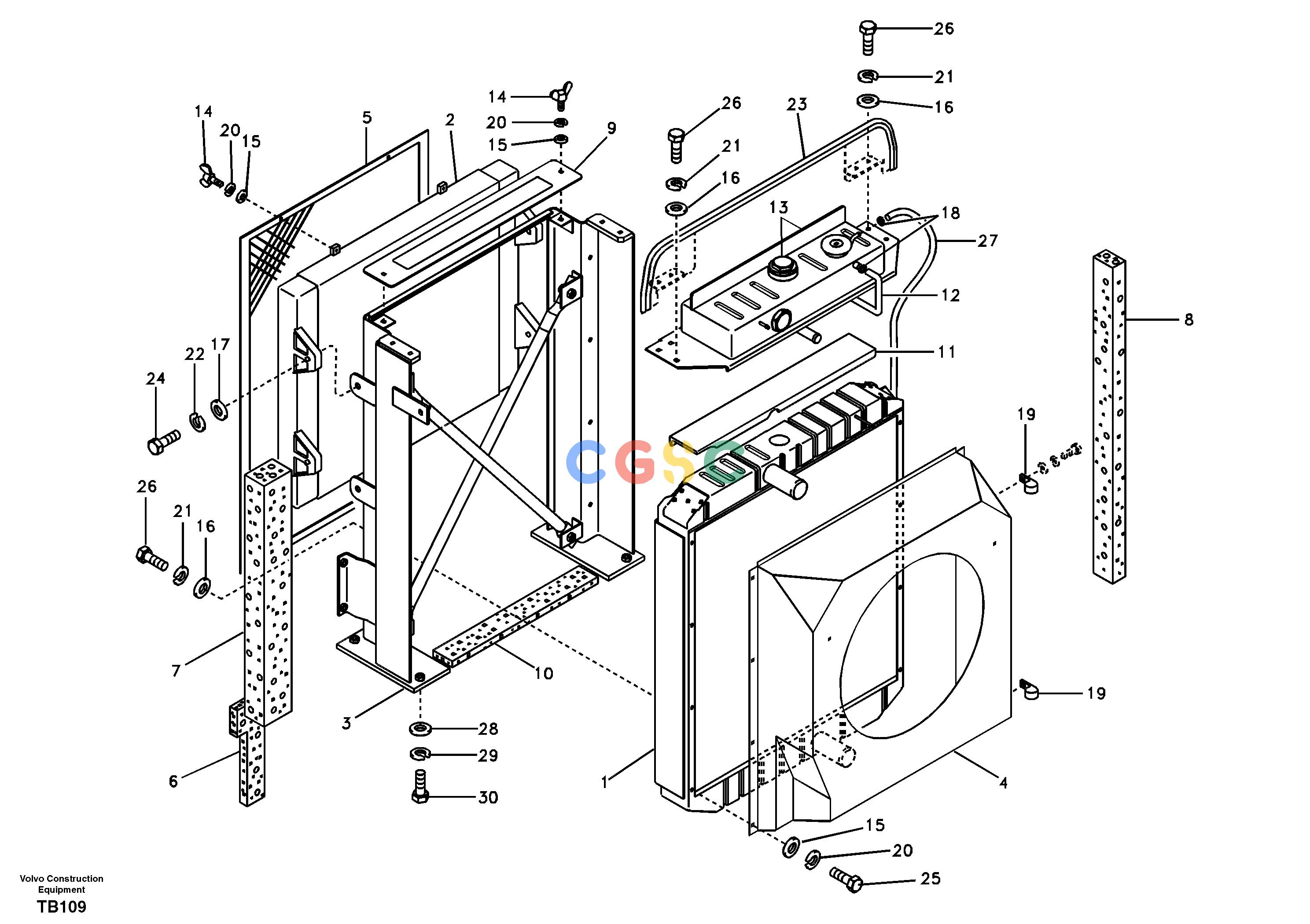

沃尔沃零件查询EC135B RadiatorSER NO 20001-200798277914-8277915NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
178 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14554884
|
[1] |
Radiator
|
|
| |
VOE14554883
|
|
Radiator
|
|
| 1. |
VOE14536041
|
[1] |
Radiator
|
|
| 2. |
VOE14507937
|
[1] |
Oil cooler
|
|
| 3. |
VOE14507939
|
[1] |
Guard
|
|
| 4. |
VOE14553117
|
[1] |
Fan shroud
|
SER NO 20001-20063
|
| |
VOE14553117
|
[1] |
Fan shroud
|
SER NO 20064-
|
| |
VOE14553118
|
|
Fan shroud
|
SER NO 20001-20063
|
| |
VOE14553118
|
|
Fan shroud
|
SER NO 20064-
|
| 5. |
VOE14507942
|
[1] |
Net
|
|
| 6. |
VOE14507944
|
[1] |
Sponge
|
|
| 7. |
VOE14507946
|
[1] |
Plate
|
|
| 8. |
VOE14507947
|
[1] |
Plate
|
|
| 9. |
VOE14507948
|
[1] |
Cover
|
|
| 10. |
VOE14507949
|
[1] |
Sponge
|
|
| 11. |
VOE14507955
|
[1] |
Pad
|
|
| 12. |
VOE14507956
|
[1] |
Hose
|
|
| 13. |
VOE14507957
|
[1] |
Tank
|
|
| |
VOE14502207
|
[1] |
Cap
|
|
| 14. |
SA9035-10804
|
[4] |
Wing screw
|
|
| 15. |
VOE993835
|
[12] |
Plain washer
|
|
| 16. |
VOE992040
|
[14] |
Plain washer
|
|
| 17. |
VOE992042
|
[4] |
Plain washer
|
|
| 18. |
VOE943470
|
[3] |
Hose clamp
|
|
| 19. |
SA9315-01601
|
[2] |
Insulating clip
|
|
| 20. |
VOE955921
|
[12] |
Spring washer
|
|
| 21. |
VOE955922
|
[14] |
Spring washer
|
|
| 22. |
VOE955923
|
[4] |
Spring washer
|
|
| 23. |
VOE14880924
|
[1] |
Weatherstrip
|
|
| 24. |
VOE978933
|
[4] |
Hexagon screw
|
|
| 25. |
VOE983242
|
[8] |
Hexagon screw
|
|
| 26. |
VOE983251
|
[14] |
Hexagon screw
|
|
| 27. |
VOE14881152
|
[1] |
Cooling hose
|
|
| 28. |
VOE992042
|
[4] |
Plain washer
|
|
| 29. |
VOE955923
|
[4] |
Spring washer
|
|
| 30. |
VOE978933
|
[4] |
Hexagon screw
|
|
