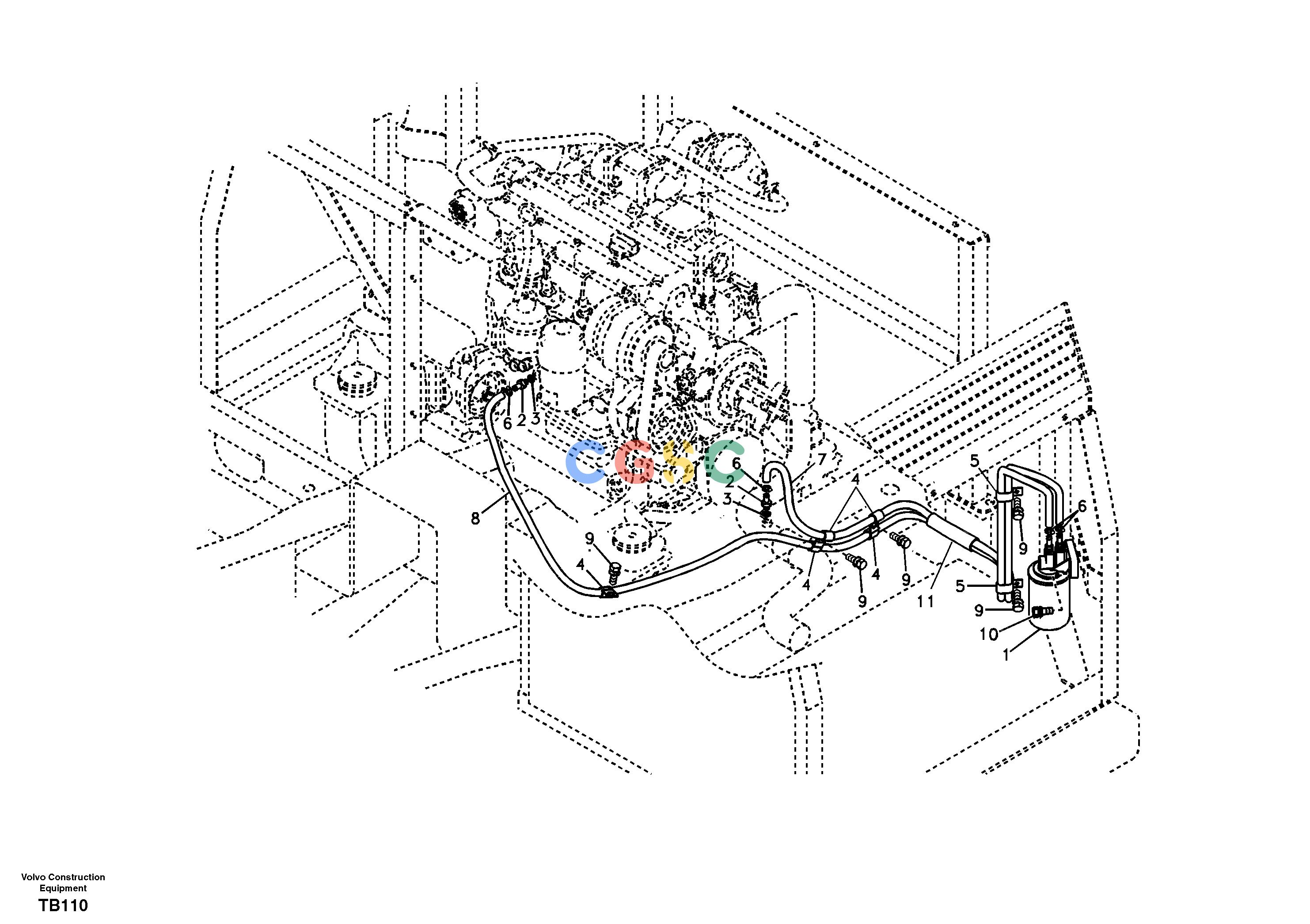

沃尔沃零件查询EC135B Coolant filterSER NO 20001-200798277918 S/N -20041-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11110567
|
[1] |
Filter
|
|
| 2. |
VOE1661683
|
[1] |
Bracket
|
|
| 3. |
VOE1661686
|
[1] |
Spindle
|
|
| 4. |
VOE1676554
|
[1] |
Nipple
|
|
| 5. |
VOE968725
|
[1] |
O-ring
|
|
| 6. |
VOE951968
|
[1] |
Spring pin
|
|
| 7. |
VOE961236
|
[1] |
Hex. socket screw
|
|
| 8. |
VOE11063242
|
[2] |
Nipple
|
|
| 9. |
VOE957178
|
[2] |
Gasket
|
|
| 10. |
VOE20532237
|
[1] |
Coolant filter
|
SER NO 20042-
|
| 11. |
VOE14880065
|
[2] |
Connector
|
|
| 12. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 13. |
SA9315-01602
|
[5] |
Insulating clip
|
|
| 14. |
SA9316-02201
|
[2] |
Clip
|
|
| 15. |
VOE943470
|
[4] |
Hose clamp
|
|
| 16. |
VOE14881175
|
[1] |
Cooling hose
|
|
| 17. |
VOE14881180
|
[1] |
Cooling hose
|
|
| 18. |
VOE946471
|
[5] |
Flange screw
|
|
| 19. |
VOE60113082
|
[4] |
Flange screw
|
|
| 20. |
SA9443-30605
|
[1] |
Hose protection
|
|
