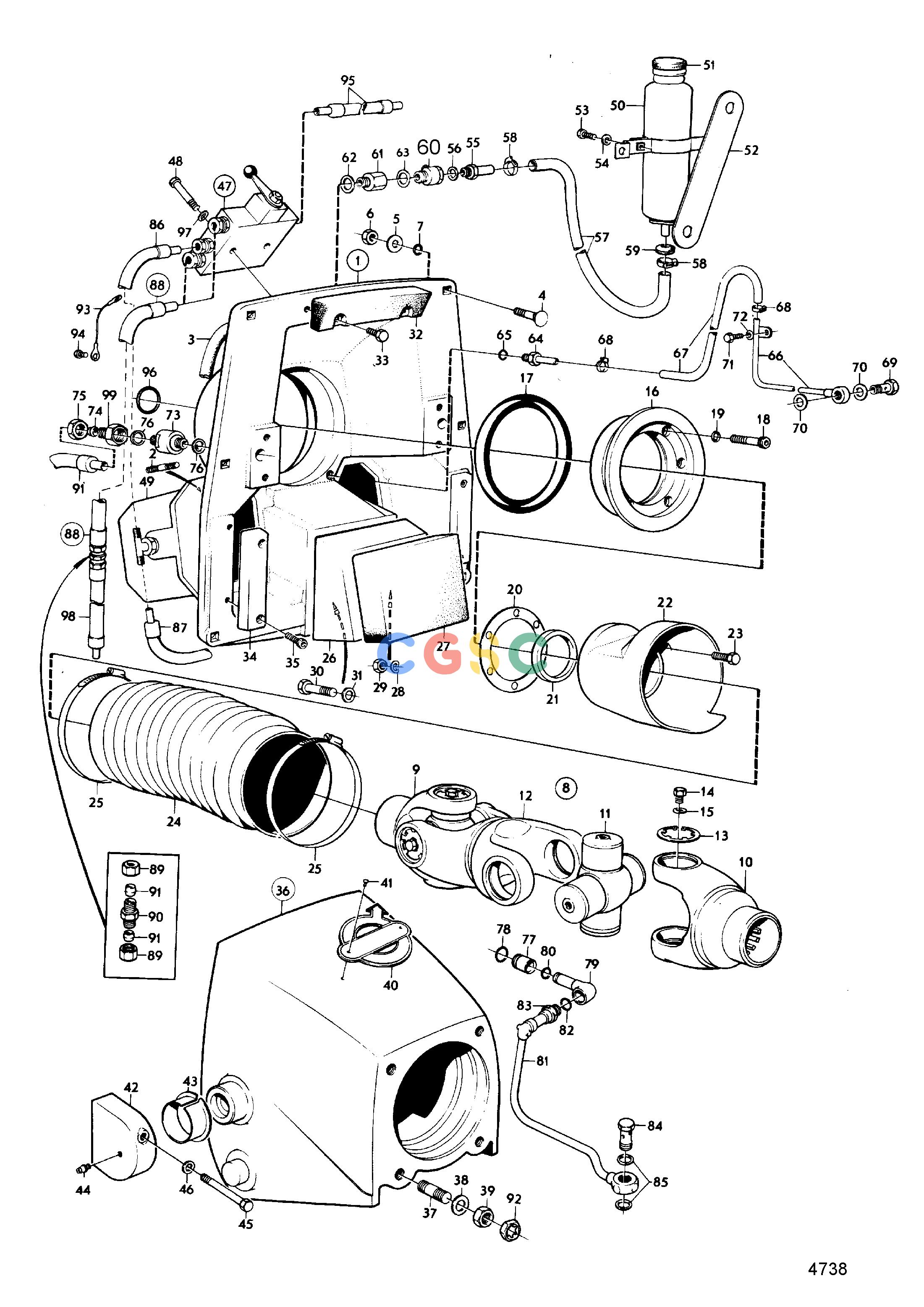

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ETransmissionsConnecting Components Engine Ao Drive UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
832365
|
[1] |
Shield
|
|
| 2. |
953488
|
[4] |
Stud
|
|
| 3. |
832265
|
[1] |
Sealing strip
|
|
| 4. |
945097
|
[7] |
Screw
|
|
| 5. |
832328
|
[7] |
Support washer
|
|
| 6. |
955829
|
[7] |
Hexagon nut
|
|
| 7. |
945424
|
[7] |
O-ring
|
|
| 8. |
850190
|
[1] |
Double joint
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
852520
|
[2] |
Cross piece
|
|
| 11. |
832444
|
[2] |
Cross piece
|
D=131mm alt
|
| 12. |
|
|
|
|
| 13. |
832450
|
[8] |
Lock ring
|
|
| 14. |
832451
|
[8] |
Plug
|
|
| 15. |
832452
|
[8] |
Gasket
|
|
| 16. |
832256
|
[1] |
Clamping ring
|
|
| 17. |
832326
|
[2] |
Damping ring
|
|
| 18. |
959499
|
[6] |
Hex. socket screw
|
|
| 19. |
943194
|
[6] |
Washer
|
|
| 20. |
832323
|
[1] |
Gasket
|
|
| 21. |
944971
|
[1] |
Sealing ring
|
|
| 22. |
832472
|
[1] |
Bellows attachment
|
|
| 23. |
956569
|
[5] |
Hex. socket screw
|
|
| 24. |
875581
|
[1] |
Bellows kit
|
|
| 25. |
961907
|
[2] |
Hose clamp
|
|
| 26. |
832311
|
[1] |
Cleat
|
|
| 27. |
832335
|
[1] |
Support element
|
|
| 28. |
942336
|
[2] |
Spring washer
|
|
| 29. |
943152
|
[2] |
Nut
|
|
| 30. |
960019
|
[2] |
Screw
|
|
| 31. |
940280
|
[2] |
Spring washer
|
|
| 32. |
832324
|
[1] |
Rubber cushion
|
|
| 33. |
940203
|
[2] |
Screw
|
|
| 34. |
832344
|
[2] |
Zinc electrode
|
|
| 35. |
959439
|
[4] |
Hex. socket screw
|
|
| 36. |
832398
|
[1] |
Pivot cover
|
|
| 37. |
839687
|
[4] |
Stud
|
|
| 38. |
945095
|
[4] |
Washer
|
|
| 39. |
832499
|
[4] |
Nut
|
|
| 40. |
832342
|
[1] |
Emblem
|
|
| 41. |
804269
|
[2] |
Drive screw
|
|
| 42. |
832459
|
[2] |
Bearing housing
|
|
| 43. |
832260
|
[2] |
Bushing
|
|
| 44. |
951739
|
[2] |
Lubricating nipple
|
Early type 1/4''-28UNF
|
| 44. |
940194
|
[2] |
Lubricating nipple
|
|
| 45. |
832415
|
[4] |
Screw
|
|
| 46. |
945442
|
[4] |
Washer
|
|
| 47. |
832296
|
[1] |
Overflow valve
|
|
| 48. |
955537
|
[2] |
Hexagon screw
|
|
| 49. |
7743260_095
|
|
lifting cylinder with
|
|
| 49. |
|
|
|
|
| 50. |
686833
|
[1] |
Expansion tank
|
|
| 51. |
832478
|
[1] |
Filler cap
|
|
| 52. |
832391
|
[1] |
Anchorage
|
|
| 53. |
959931
|
[1] |
Hexagon screw
|
|
| 54. |
940191
|
[1] |
Washer
|
|
| 55. |
946153
|
[1] |
Nipple
|
|
| 56. |
943907
|
[1] |
Gasket
|
|
| 57. |
832383
|
[1] |
Oil hose
|
|
| 58. |
961663
|
[2] |
Hose clamp
|
|
| 59. |
832410
|
[1] |
Protecting bushing
|
|
| 60. |
803808
|
[1] |
Plug cock
|
|
| 61. |
832402
|
[1] |
Nipple
|
|
| 62. |
943907
|
[1] |
Gasket
|
|
| 63. |
944496
|
[1] |
Gasket
|
|
| 64. |
946152
|
[1] |
Nipple
|
|
| 65. |
958226
|
[1] |
O-ring
|
|
| 66. |
832366
|
[1] |
Oil pipe
|
|
| 67. |
943706
|
[1] |
Hose
|
L=280mm
|
| 68. |
961663
|
[2] |
Hose clamp
|
|
| 69. |
832368
|
[1] |
Hollow screw
|
|
| 70. |
946154
|
[2] |
Gasket
|
|
| 71. |
959931
|
[1] |
Hexagon screw
|
|
| 72. |
940191
|
[1] |
Washer
|
|
| 73. |
832385
|
[2] |
Oil filter
|
|
| 74. |
956971
|
[2] |
Ferrule
|
|
| 75. |
956985
|
[2] |
Fitting nut
|
|
| 76. |
943908
|
[4] |
Gasket
|
|
| 77. |
832322
|
[2] |
Sleeve
|
|
| 78. |
955993
|
[2] |
O-ring
|
|
| 79. |
832334
|
[2] |
Elbow nipple
|
|
| 80. |
955989
|
[2] |
O-ring
|
|
| 81. |
832329
|
[1] |
Grommet
|
S.B
|
| 81. |
832330
|
[1] |
Grommet
|
P
|
| 82. |
960166
|
[2] |
O-ring
|
|
| 83. |
906633
|
[2] |
Round nut
|
|
| 84. |
832483
|
[2] |
Hollow screw
|
|
| 85. |
400830
|
[4] |
Gasket
|
|
| 86. |
832380
|
[1] |
Hydraulic hose, hose
|
For AQD70B spec 867167, AQD70C spec 867224, AQD70CL spec 867266., Obsolete part, L=600mm
|
| 86. |
|
|
|
L=600mm
|
| 87. |
832381
|
[2] |
Hydraulic hose, hose
|
For AQD70B spec 867167, AQD70C spec 867224, AQD70CL spec 867266., L=750mm
|
| 87. |
|
|
|
L=750mm
|
| 88. |
832394
|
[2] |
Hose
|
See group 6
|
| 89. |
956985
|
[2] |
Fitting nut
|
|
| 90. |
957057
|
[1] |
Nipple
|
For early production of 832394
|
| 91. |
956971
|
[2] |
Ferrule
|
|
| 92. |
946827
|
[2] |
Lock nut
|
|
| 93. |
|
|
|
See group 3
|
| 94. |
955522
|
[2] |
Screw
|
|
| 95. |
839089
|
[4] |
Hose
|
See group 6
|
| 96. |
944587
|
[1] |
O-ring
|
|
| 97. |
940097
|
[2] |
Washer
|
|
| 98. |
|
|
|
See group 6
|
| 99. |
945359
|
[2] |
Nipple
|
|
