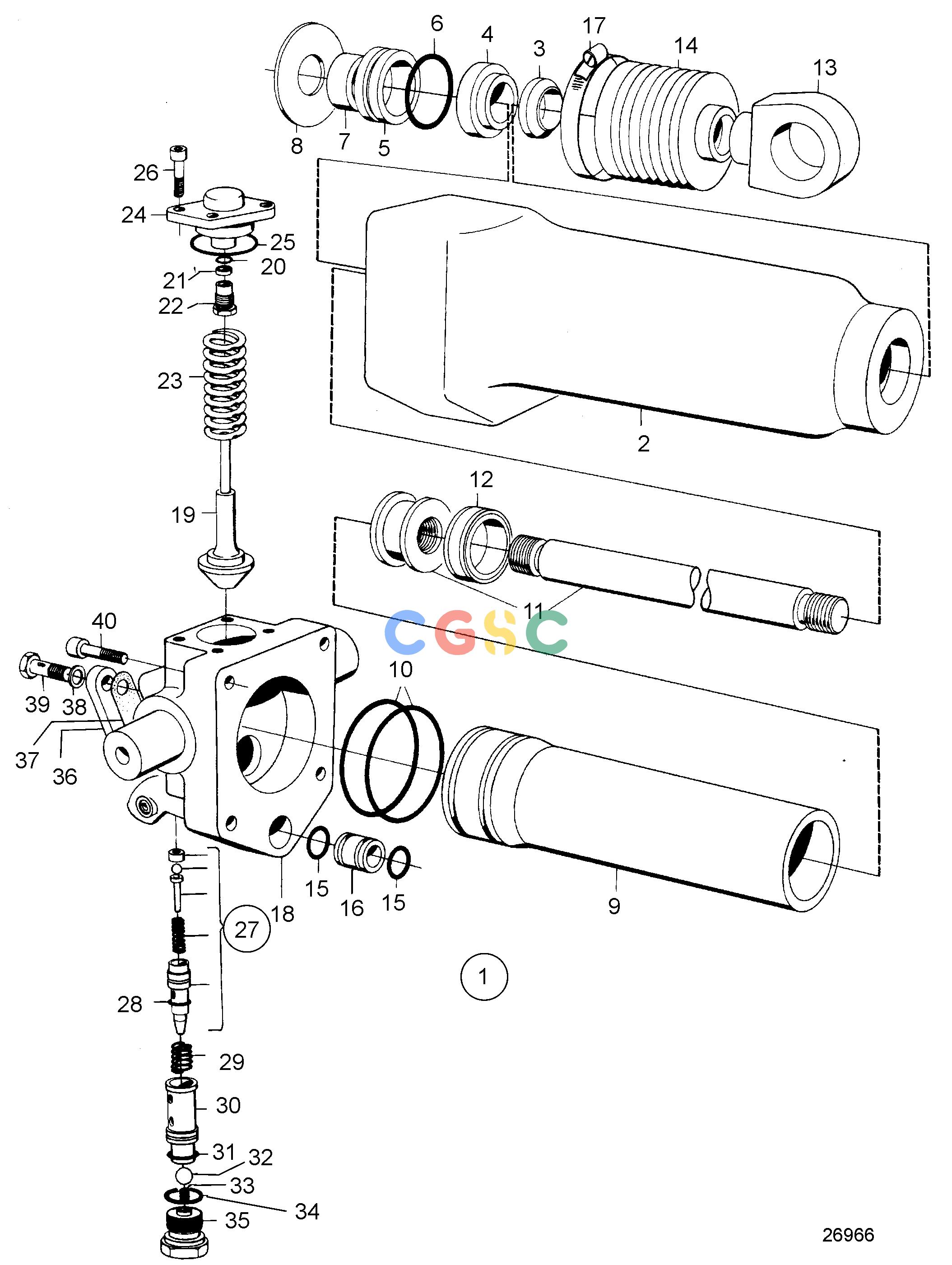

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ETransmissionsLifting Cylinder: 832245EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
832245
|
[1] |
Lifting cylinder
|
S.B
|
| 2. |
832267
|
[1] |
Lifting cylinder
|
|
| 3. |
944169
|
[1] |
Seal
|
|
| 4. |
832271
|
[1] |
Bushing
|
|
| 5. |
832272
|
[1] |
Spacer ring
|
|
| 6. |
956000
|
[1] |
O-ring
|
|
| 7. |
944172
|
[1] |
Sealing ring
|
|
| 8. |
832273
|
[1] |
Washer
|
|
| 9. |
832268
|
[1] |
Cylinder liner
|
|
| 10. |
944687
|
[2] |
O-ring
|
|
| 11. |
832437
|
[1] |
Piston
|
|
| 12. |
832289
|
[1] |
Sealing ring
|
|
| 13. |
832276
|
[1] |
Attaching lug
|
|
| 14. |
832349
|
[1] |
Bellows
|
|
| 15. |
960163
|
[2] |
O-ring
|
|
| 16. |
832277
|
[1] |
Junction pipe
|
|
| 17. |
961672
|
[1] |
Hose clamp
|
|
| 18. |
832371
|
[1] |
Valve housing
|
S.B
|
| 19. |
832278
|
[1] |
Valve
|
|
| 20. |
960157
|
[1] |
O-ring
|
|
| 21. |
962531
|
[1] |
Back-up ring
|
|
| 22. |
832407
|
[1] |
Plug
|
|
| 23. |
832280
|
[1] |
Spring
|
|
| 24. |
832281
|
[1] |
Cover
|
|
| 25. |
190358
|
[1] |
O-ring
|
|
| 26. |
959438
|
[4] |
Hex. socket screw
|
|
| 27. |
832411
|
[1] |
Valve
|
|
| 28. |
942978
|
[1] |
O-ring
|
|
| 29. |
832441
|
[1] |
Spring
|
|
| 30. |
832286
|
[1] |
Valve liner
|
|
| 31. |
944167
|
[1] |
O-ring
|
|
| 32. |
61177
|
[1] |
Ball
|
|
| 33. |
832290
|
[1] |
Spring
|
|
| 34. |
958226
|
[1] |
O-ring
|
|
| 35. |
832287
|
[1] |
Plug
|
|
| 36. |
832346
|
[1] |
Cover
|
|
| 37. |
832347
|
[1] |
Gasket
|
|
| 38. |
946114
|
[2] |
Gasket
|
|
| 39. |
954391
|
[2] |
Hollow screw
|
|
| 40. |
832414
|
[4] |
Screw
|
|
