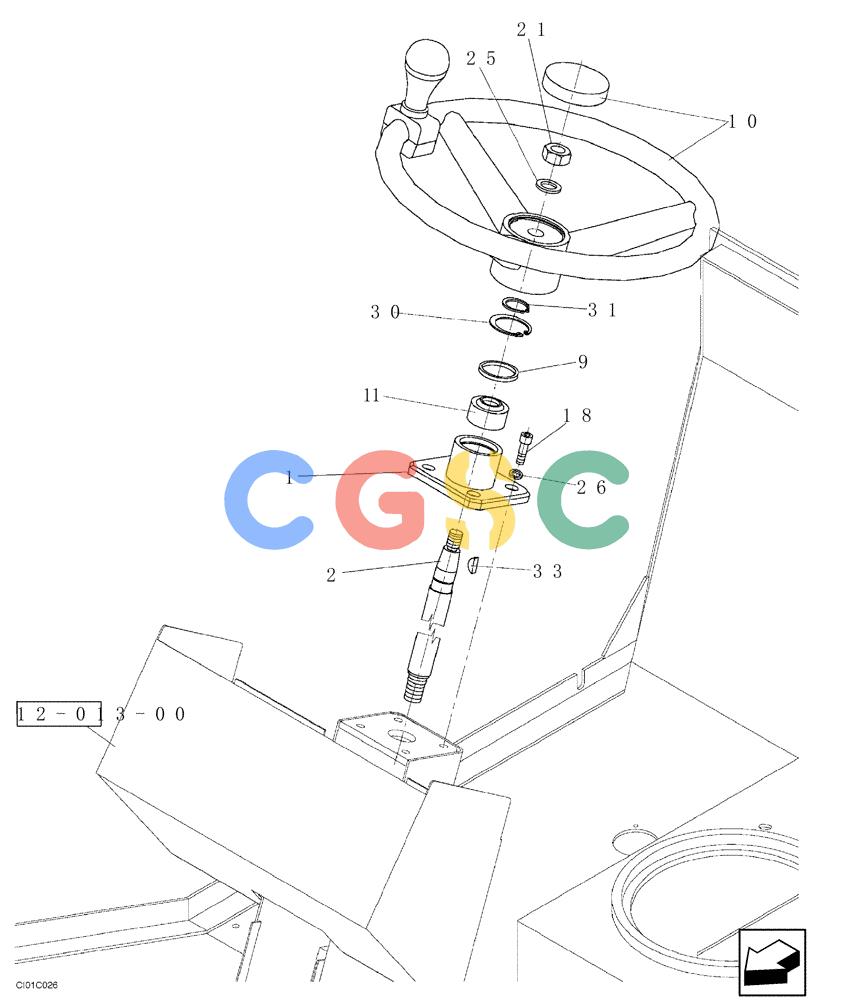

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (06-001-00[01]) - STEERING WHEEL AND FIXED STEERING COLUMN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND053430 | [1] | FLANGE | STA |
| 2. | ND031620 | [1] | SHAFT | STA |
| 9. | ND052452 | [1] | RING | STA |
| 10. | ND090031 | [1] | STEERING WHEEL | STA |
| 11. | ND068765 | [1] | ROLLER BEARING | STA |
| 18. | ND024256 | [4] | BOLT | STAM10 x 16 |
| 21. | ND026472 | [1] | NUT | STAM16 x 1,5 |
| 25. | ND029253 | [1] | WASHER | STAID 17 |
| 26. | ND029311 | [4] | WASHER | STAID 10,2 |
| 30. | ND069879 | [1] | SNAP RING | STA |
| 31. | ND069826 | [1] | SNAP RING | STA |
| 33. | ND026283 | [1] | KEY | STA |
