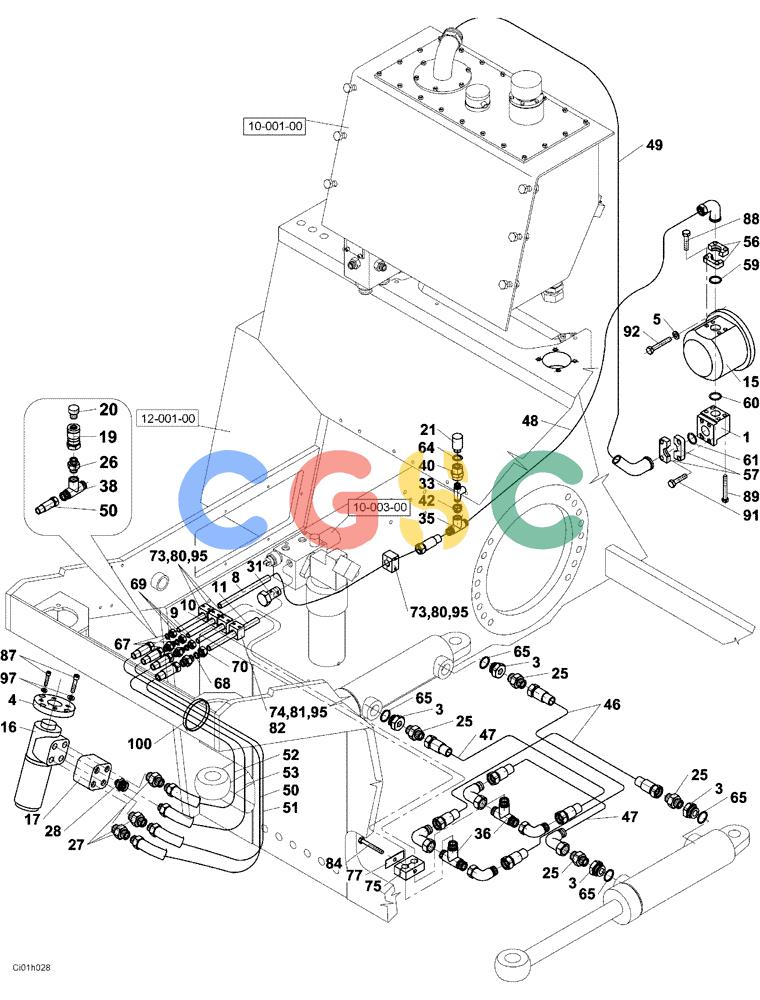

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (06-002-00[01]) - HYDRAULIC CIRCUIT, STEERING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104742 | [1] | JUNCTION BOX | STA |
| 3. | ND049777 | [4] | FITTING | STA |
| 4. | ND025192 | [1] | PLATE | STA |
| 5. | ND042815 | [2] | WASHER | STA Superseded by part number: ND029267 |
| 8. | ND075221 | [1] | HYD. TUBE | STA |
| 9. | ND104796 | [1] | PIPE | STA |
| 10. | ND104797 | [1] | HYD. TUBE | STA |
| 11. | ND104798 | [1] | HYD. TUBE | STA |
| 15. | ND092617 | [1] | PUMP | STA |
| 16. | ND090764 | [1] | CONTROL VALVE | STA |
| 17. | ND090820 | [1] | BLOCK | STA |
| 19. | ND062319 | [1] | FITTING | STA Superseded by part number: ND112942 |
| 20. | ND062318 | [1] | PLUG | STA |
| 21. | ND101582 | [1] | PRESSURE SWITCH | STA |
| 25. | ND062140 | [4] | HYD CONNECTOR | STA |
| 26. | ND062235 | [1] | FITTING | STA |
| 27. | ND062144 | [3] | FITTING | STA |
| 28. | ND062151 | [1] | HYD CONNECTOR | STA |
| 31. | ND062479 | [1] | BANJO BOLT | STA |
| 33. | ND062305 | [1] | HYD CONNECTOR | STA |
| 35. | ND062335 | [1] | HYD CONNECTOR | STA |
| 36. | ND062334 | [2] | GUARD | STA |
| 38. | ND062336 | [1] | FITTING | STA |
| 40. | ND062306 | [1] | HYD CONNECTOR | STA |
| 42. | ND062437 | [1] | FITTING | STA |
| 46. | ND061927 | [2] | HOSE | STA |
| 47. | ND061922 | [2] | HOSE | STA |
| 48. | ND061924 | [1] | HOSE | STA |
| 49. | ND061923 | [1] | HOSE | STA |
| 50. | ND061914 | [1] | HOSE | STA |
| 51. | ND061204 | [1] | HOSE | STA |
| 52. | ND061203 | [1] | HOSE | STA |
| 53. | ND061315 | [1] | HOSE | STA |
| 56. | ND062013 | [2] | HALF-COLLAR | STA |
| 57. | ND062018 | [2] | CLAMP BRACKET | STA |
| 59. | ND079933 | [1] | O-RING | STA |
| 60. | ND079934 | [1] | O-RING | STA |
| 61. | ND079935 | [1] | O-RING | STA |
| 64. | ND073356 | [1] | PACKING RING | STA |
| 65. | ND073369 | [4] | SEAL | STA |
| 67. | ND062035 | [6] | SEALING RING | STA |
| 68. | ND062036 | [2] | SEAL | STA |
| 69. | ND062049 | [6] | FITTING | STA |
| 70. | ND062051 | [2] | NUT | STA |
| 73. | ND061999 | [4] | CLAMP | STA |
| 74. | ND064813 | [1] | CLAMP | STA |
| 75. | ND064849 | [1] | SLEEVE | STA |
| 77. | ND064807 | [1] | CLAMP | STA |
| 80. | ND024233 | [8] | BOLT | STA |
| 81. | ND064838 | [2] | SCREW | STA |
| 82. | ND064840 | [2] | PLATE | STA Superseded by part number: ND112939 |
| 84. | ND021184 | [1] | BOLT | STA |
| 87. | ND024257 | [7] | BOLT | STA |
| 88. | ND024260 | [4] | BOLT | STA |
| 89. | ND024266 | [4] | BOLT | STA |
| 91. | ND024271 | [4] | BOLT | STA |
| 92. | ND021215 | [2] | BOLT | STA |
| 95. | ND029248 | [10] | WASHER | STA |
| 97. | ND035941 | [7] | WASHER | STA |
| 100. | ND106910 | [5] | STRAP | STA |
