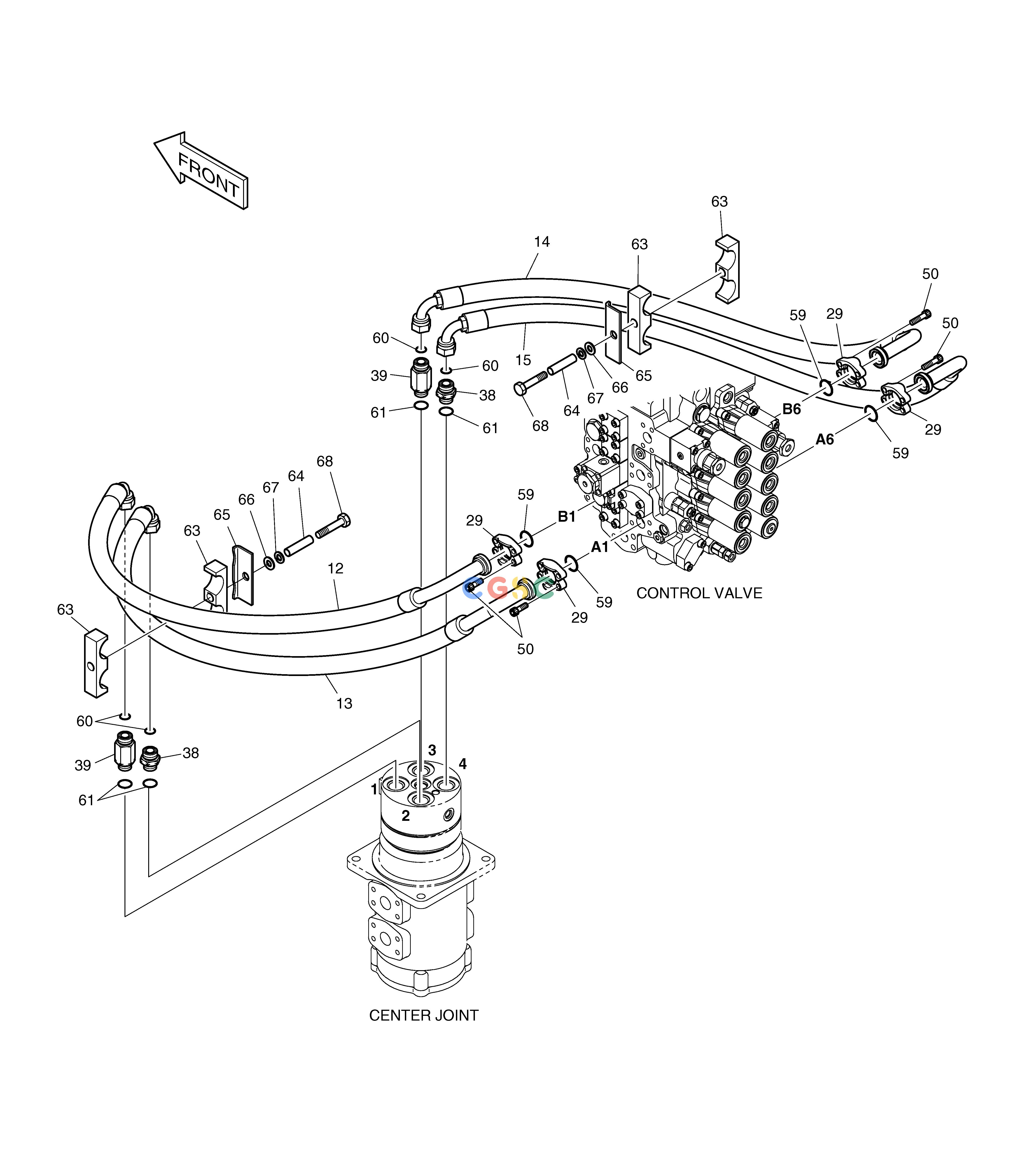

斗山零件查询MAIN PIPING(5) - CENTER JOINT DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044586B
|
[-] |
MAIN PIPING(1)
|
|
| -. |
420212-00576
|
[-] |
|
|
| 12. |
DS2026146
|
[1] |
HOSE
|
|
| 13. |
DS2026129
|
[1] |
HOSE
|
|
| 14. |
DS2026145
|
[1] |
HOSE
|
|
| 15. |
DS2026127
|
[1] |
HOSE
|
|
| 29. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 38. |
2181-2627D1
|
[2] |
ADAPTER
|
|
| 39. |
2181-2627D3
|
[2] |
ADAPTER
|
|
| 50. |
S2212266
|
[16] |
BOLT
|
|
| 59. |
2180-1026D19
|
[4] |
O-RING
|
|
| 60. |
S8030121
|
[4] |
O-RING
|
|
| 61. |
S8000231
|
[4] |
O-RING
|
|
| 63. |
124-00192
|
[4] |
CLAMP;HOSE
|
|
| 64. |
2114-1737
|
[2] |
SPACER
|
|
| 65. |
621-02850B
|
[2] |
PLATE
|
|
| 66. |
S5010913
|
[2] |
WASHER
|
|
| 67. |
S5102903
|
[2] |
WASHER
|
|
| 68. |
S0566066
|
[2] |
BOLT
|
|
