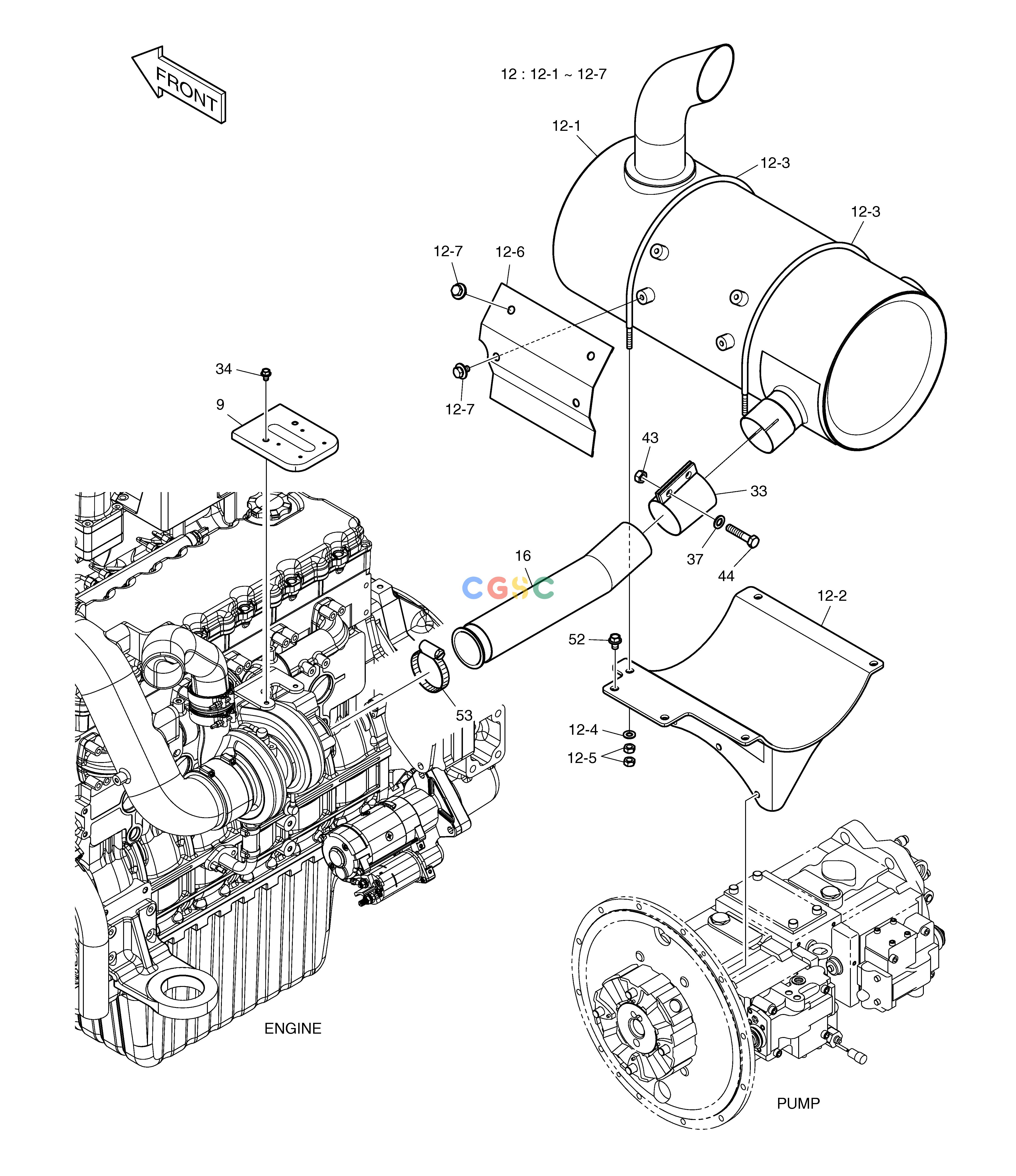

斗山零件查询MUFFLER DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
799 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1039446B
|
[-] |
ENGINE ASS'Y
|
|
| -. |
150109-00132
|
[-] |
|
|
| 12. |
K1039295A
|
[1] |
MUFFLER SUB ASS'Y
|
240103-00584
|
| 12. |
240103-00584
|
[1] |
|
240103-00584A
|
| 12. |
240103-00584A
|
[1] |
|
|
| 12-1. |
K1039296A
|
[1] |
MUFFLER
|
|
| 12-1. |
240103-00585
|
[1] |
|
|
| 12-2. |
K1030291A
|
[1] |
BRACKET
|
|
| 12-3. |
K1039117A
|
[2] |
U-BOLT
|
|
| 12-4. |
S5010613
|
[4] |
WASHER
|
|
| 12-5. |
S4012633
|
[8] |
NUT
|
|
| 12-6. |
K1015415A
|
[1] |
INSULATOR
|
|
| 12-6. |
111202-00017
|
[1] |
|
111202-00017A
|
| 12-6. |
111202-00017A
|
[1] |
|
|
| 12-7. |
DS0025013
|
[4] |
BOLT
|
|
| 16. |
K1030239
|
[1] |
PIPE;EXHAUST
|
|
| 33. |
124-00310A
|
[1] |
CLAMP
|
|
| 34. |
K1001029
|
[2] |
BOLT
|
|
| 37. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 43. |
S4012733
|
[2] |
NUT
|
|
| 44. |
S0515866
|
[2] |
BOLT
|
|
| 52. |
DS0025017
|
[2] |
BOLT
|
|
| 53. |
K1024182
|
[1] |
CLAMP
|
|
| 9. |
K1037930
|
[1] |
COVER
|
|
