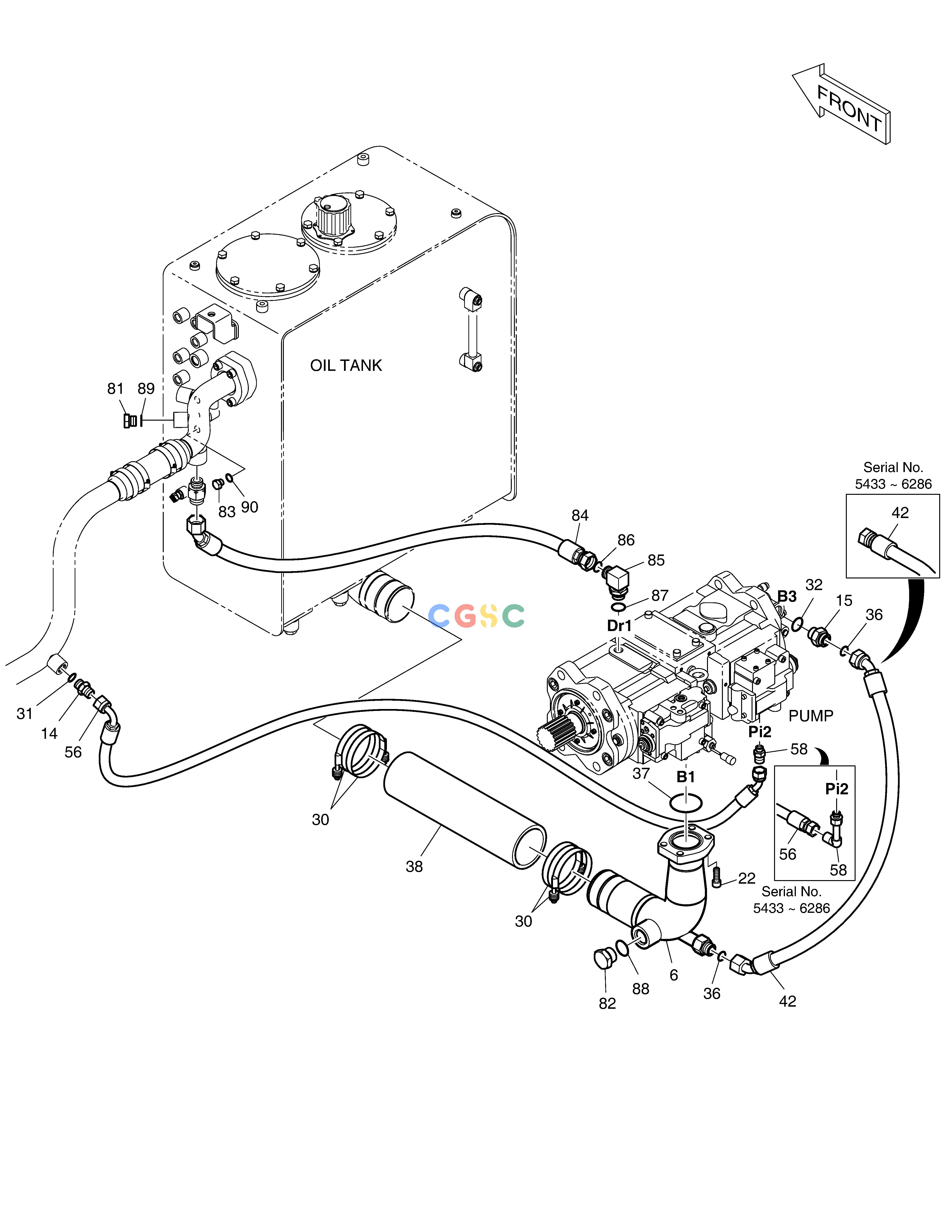

斗山零件查询OIL COOLER PIPING(1) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1039406A
|
[-] |
OIL COOLER PIPING
|
|
| -. |
420212-00225
|
[-] |
|
|
| 14. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 15. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 22. |
S2215366
|
[4] |
BOLT
|
|
| 30. |
S8500118
|
[4] |
COLLIER
|
|
| 31. |
S8000181
|
[1] |
O-RING
|
|
| 32. |
S8000241
|
[1] |
O-RING
|
|
| 36. |
S8030121
|
[2] |
O-RING
|
|
| 37. |
2180-1026D31
|
[1] |
O-RING
|
|
| 38. |
2185-1737D8
|
[1] |
HOSE
|
|
| 42. |
DS2012136
|
[1] |
HOSE
|
|
| 42. |
DS2020108
|
[1] |
|
DS2020128
|
| 42. |
DS2020128
|
[1] |
|
|
| 56. |
DS2055950
|
[1] |
HOSE
|
|
| 56. |
DS2058331
|
[1] |
|
|
| 58. |
2181-1702D36
|
[1] |
ELBOW
|
|
| 58. |
2181-1126D115
|
[1] |
ADAPTER
|
|
| 6. |
140-01603A
|
[1] |
PIPE;SUCTION
|
420218-00104A
|
| 6. |
420218-00104A
|
[1] |
|
420218-00299
|
| 6. |
420218-00299
|
[1] |
|
420218-00299A
|
| 6. |
420218-00299A
|
[1] |
|
|
| 81. |
2181-1950D3
|
[1] |
PLUG
|
DS2901007
|
| 81. |
DS2901007
|
[1] |
|
|
| 82. |
2181-1950D9
|
[1] |
PLUG
|
DS2901005
|
| 82. |
DS2901005
|
[1] |
|
|
| 83. |
2181-1950D1
|
[1] |
PLUG
|
DS2901009
|
| 83. |
DS2901009
|
[1] |
PLUG
|
|
| 84. |
DS2012070
|
[1] |
HOSE
|
|
| 85. |
2181-2294D2
|
[1] |
ELBOW
|
DS2304155
|
| 85. |
DS2304155
|
[1] |
|
|
| 86. |
S8030121
|
[1] |
O-RING
|
|
| 87. |
S8000241
|
[1] |
O-RING
|
|
| 88. |
S8000291
|
[1] |
O-RING
|
|
| 89. |
S8000181
|
[1] |
O-RING
|
|
| 90. |
S8000111
|
[1] |
O-RING
|
|
