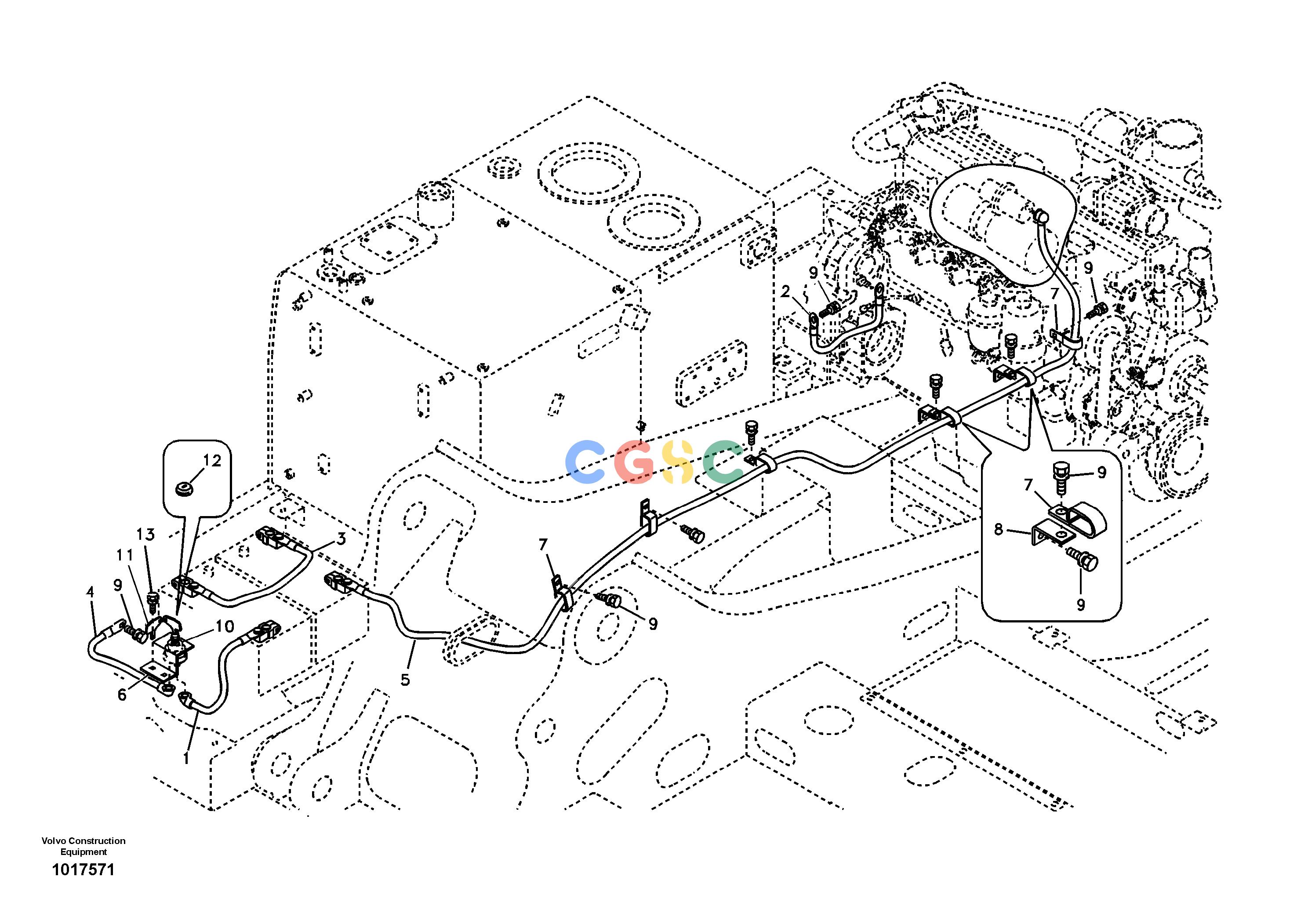

沃尔沃零件查询EC135B Cables, batterySER NO 20001-200798277787-NoneVOE8277787NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
168 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14529072
|
[1] |
Battery cable
|
|
| 2. |
VOE14529073
|
[1] |
Battery cable
|
|
| 3. |
VOE14500158
|
[1] |
Battery cable
|
|
| 4. |
VOE14517230
|
[1] |
Battery Cable
|
|
| 5. |
VOE14507893
|
[1] |
Battery Cable
|
|
| 6. |
VOE14513738
|
[1] |
Bracket
|
|
| 7. |
VOE14507451
|
[6] |
Clip
|
|
| 8. |
VOE14529393
|
[2] |
Bracket
|
|
| 9. |
VOE946471
|
[10] |
Flange screw
|
|
| 10. |
VOE14714851
|
[1] |
Switch
|
|
| 11. |
VOE14612980
|
[1] |
Switch
|
SWITCH 14588962, 14714851
|
| 11. |
SA8240-00500
|
[2] |
Key
|
SWITCH 1121-00381,
14529076
|
| 12. |
VOE14529928
|
[2] |
Cover
|
|
| 13. |
VOE946441
|
[2] |
Flange screw
|
|
