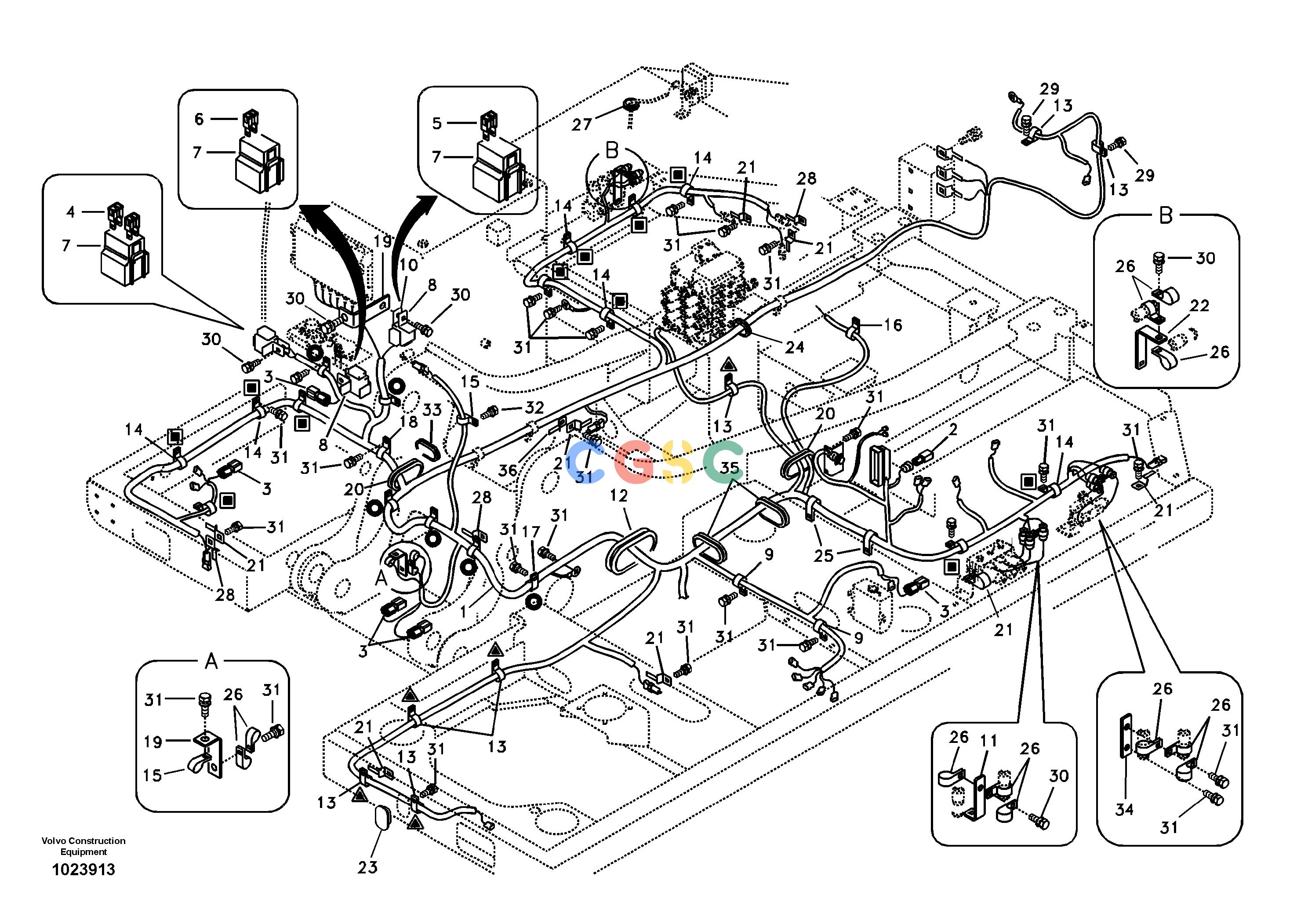

沃尔沃零件查询EC135B Cable and wire harness, mainSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14537184
|
[1] |
Wire harness
|
SER NO 20001-20041
|
| |
VOE14593558
|
[1] |
Wiring harness
|
SER NO 20042-
|
| |
VOE14569825
|
[1] |
Wiring harness
|
|
| 2. |
VOE14514158
|
[1] |
Resistor
|
|
| 3. |
VOE14529132
|
[5] |
Diode
|
|
| 4. |
SA9879-10400
|
[2] |
Fuse
|
40A,GREEN
|
| 5. |
SA9879-10800
|
[1] |
Fuse
|
80A,BLACK
|
| 6. |
VOE14880317
|
[1] |
Fuse
|
140A
|
| 7. |
SA1122-00940
|
[3] |
Fuse holder
|
|
| 8. |
VOE14529099
|
[3] |
Bracket
|
|
| 9. |
VOE14500297
|
[2] |
Clip
|
|
| 10. |
VOE14529100
|
[3] |
Bracket
|
|
| 11. |
VOE14517731
|
[1] |
Bracket
|
|
| 12. |
VOE14529325
|
[1] |
Grommet
|
|
| 13. |
VOE14500291
|
[7] |
Clip
|
|
| 14. |
VOE14500292
|
[11] |
Clip
|
|
| 15. |
VOE14500293
|
[2] |
Clip
|
|
| 16. |
VOE14500295
|
[1] |
Clip
|
|
| 17. |
VOE14500298
|
[6] |
Clip
|
|
| 18. |
VOE14515523
|
[1] |
Clip
|
|
| 19. |
VOE14505501
|
[2] |
Bracket
|
|
| 20. |
VOE14509621
|
[2] |
Grommet
|
|
| 21. |
VOE14510011
|
[7] |
Clip
|
|
| 22. |
VOE14511073
|
[1] |
Bracket
|
|
| 23. |
VOE14511453
|
[1] |
Grommet
|
|
| 24. |
VOE14529331
|
[1] |
Grommet
|
|
| 25. |
VOE14507451
|
[2] |
Clip
|
|
| 26. |
VOE14529345
|
[11] |
Clip
|
|
| 27. |
VOE14529396
|
[1] |
Grommet
|
|
| 28. |
VOE14881250
|
[3] |
Clip
|
|
| 29. |
VOE946440
|
[2] |
Flange screw
|
|
| 30. |
VOE946441
|
[6] |
Flange screw
|
|
| 31. |
VOE946471
|
[41] |
Flange screw
|
|
| 32. |
VOE947107
|
[1] |
Flange screw
|
|
| 33. |
SA9751-15016
|
[1] |
Grommet
|
|
| 34. |
VOE14529334
|
[1] |
Bracket
|
|
| 35. |
VOE14529064
|
[2] |
Grommet
|
|
| 36. |
VOE14522575
|
[1] |
Clip
|
SER NO 20035-
|
