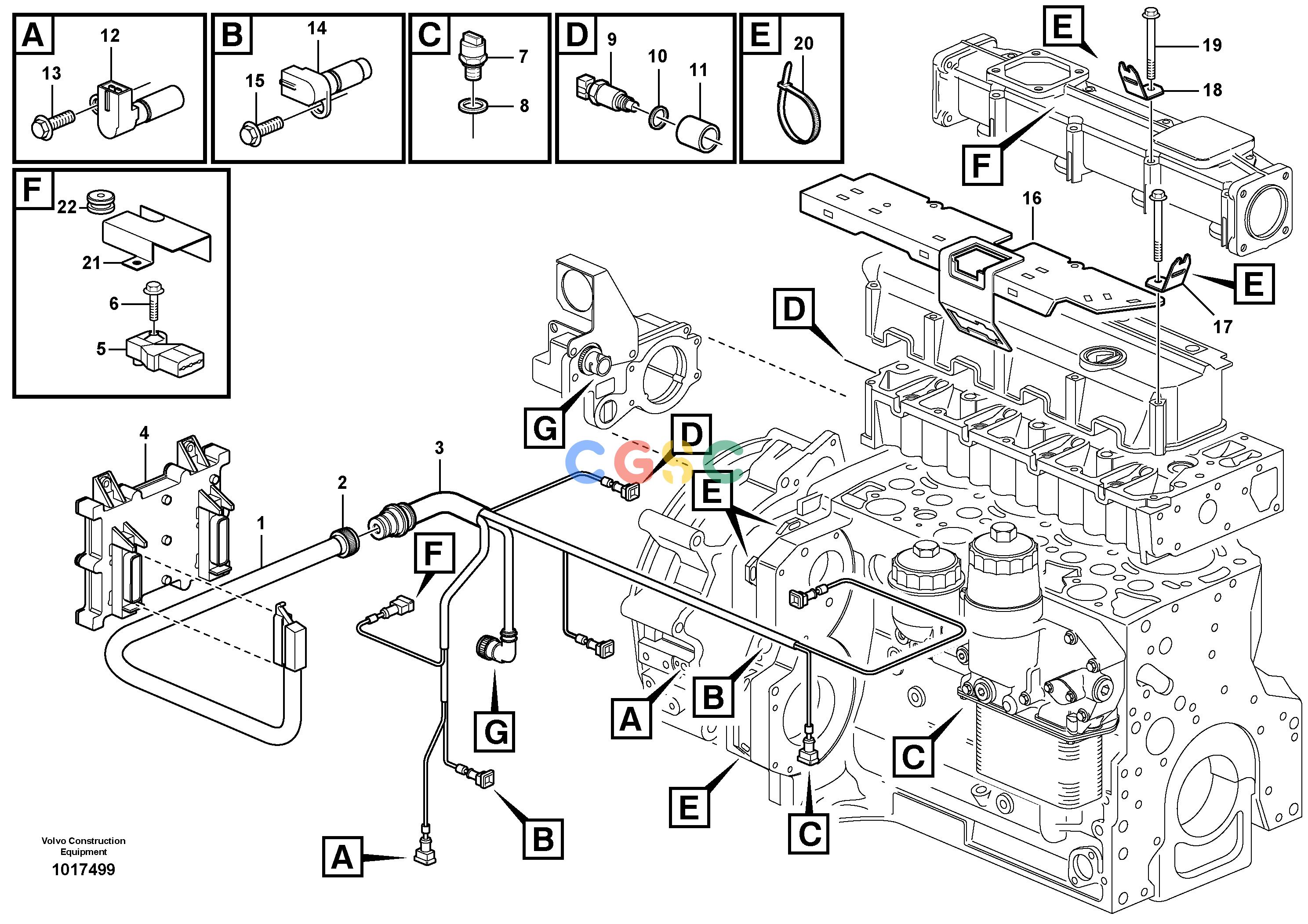

沃尔沃零件查询EC135B Cable harness, engineSER NO 20001-200798278919-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
176 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20585159
|
[1] |
Cable
|
|
| 2. |
VOE20450704
|
[1] |
Connector
|
|
| 3. |
VOE21547101
|
[1] |
Wiring harness
|
|
| 4. |
VOE20723663
|
[1] |
Control unit
|
|
| 5. |
VOE20524936
|
[1] |
Pressure sensor
|
Booster Pressure
|
| 6. |
VOE20450728
|
[1] |
Bolt
|
|
| 7. |
VOE21291011
|
[1] |
Pressure sensor
|
Eng Oil Pressure
|
| 8. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 9. |
VOE21531072
|
[1] |
Temperature sensor
|
Coolant Temperature
|
| 10. |
VOE20460061
|
[1] |
Sealing ring
|
|
| 11. |
VOE20405788
|
[1] |
Sleeve
|
|
| 12. |
VOE20964264
|
[1] |
Sensor
|
Crankshaft Speed
|
| 13. |
VOE20405729
|
[1] |
Screw
|
|
| 14. |
VOE20459880
|
[1] |
Sensor
|
Camshaft Speed
|
| 15. |
VOE20460055
|
[1] |
Screw
|
|
| 16. |
VOE20728568
|
[1] |
Cover Plate
|
|
| 17. |
VOE20450700
|
[1] |
Bracket
|
|
| 18. |
VOE20450997
|
[1] |
Bracket
|
|
| 19. |
VOE20405898
|
[1] |
Screw
|
|
| 20. |
VOE4881440
|
[REQ] |
Cable tie
|
|
| 21. |
VOE21598195
|
[1] |
Guard plate
|
|
| 22. |
VOE20715095
|
[1] |
Closure
|
|
