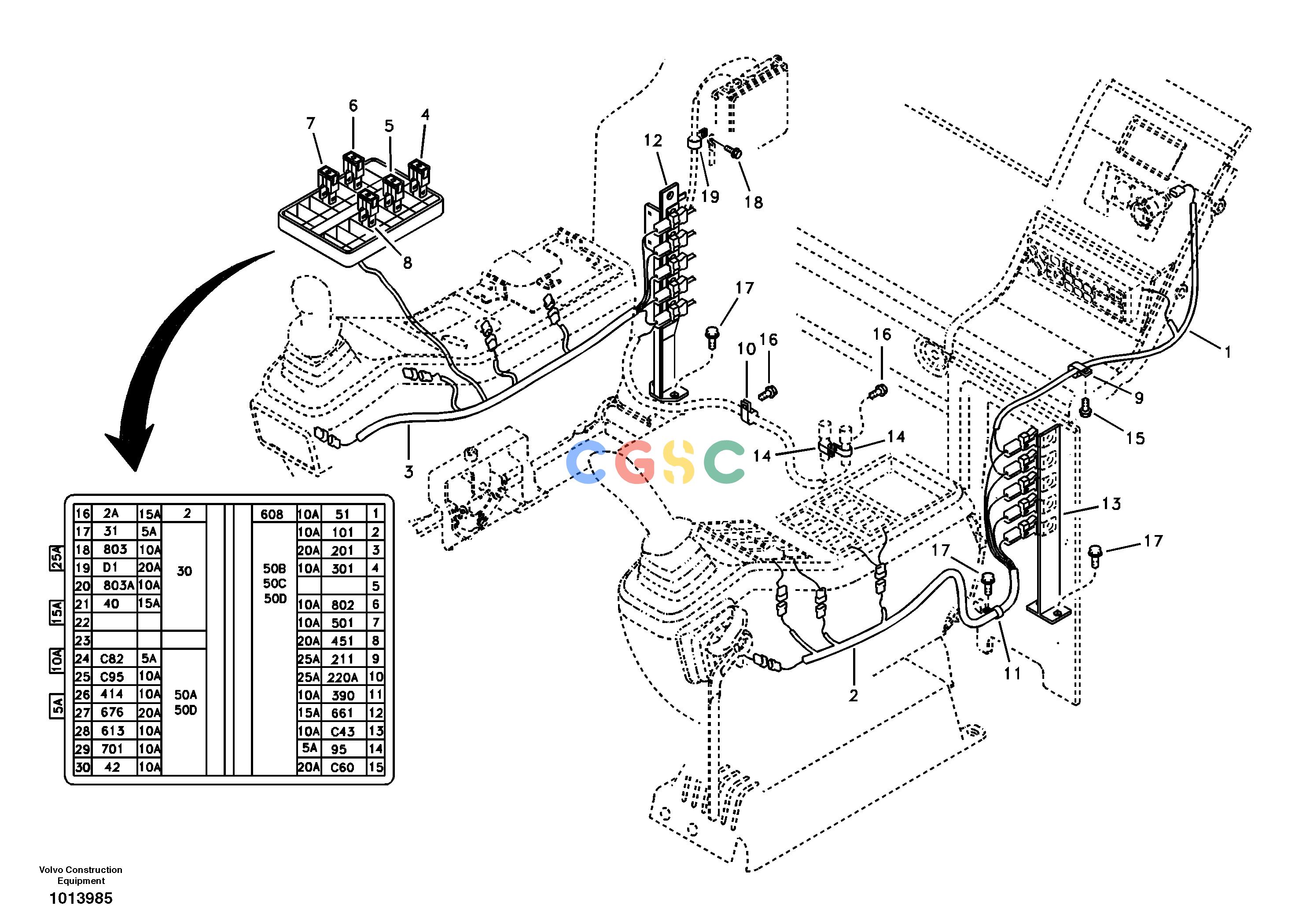

沃尔沃零件查询EC135B Cable and wire harness, instrument panelSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14520105
|
[1] |
Wire harness
|
|
| 2. |
VOE14524422
|
[1] |
Wire harness
|
SER NO 20001-20034
|
| |
VOE14535881
|
[1] |
Wire harness
|
SER NO 20035-
|
| |
VOE14578493
|
[1] |
Wiring harness
|
|
| 3. |
VOE14522131
|
[1] |
Wire harness
|
SER NO 20001-20034
|
| |
VOE14535882
|
[1] |
Wire harness
|
SER NO 20035-
|
| |
VOE14571637
|
[1] |
Wiring harness
|
|
| 4. |
VOE13969160
|
[4] |
Fuse
|
5A,TAN
|
| 5. |
VOE969161
|
[15] |
Fuse
|
10A,RED
|
| 6. |
VOE13969162
|
[4] |
Fuse
|
15A,LIGHT BLUE
|
| 7. |
VOE978999
|
[5] |
Fuse
|
20A,YELLOW
|
| 8. |
VOE969164
|
[3] |
Fuse
|
30A,LIGHT GREEN
|
| 9. |
VOE14500294
|
[1] |
Clip
|
|
| 10. |
VOE14500293
|
[1] |
Clip
|
|
| 11. |
VOE14500297
|
[1] |
Clip
|
|
| 12. |
VOE14527157
|
[1] |
Bracket
|
|
| 13. |
VOE14511553
|
[1] |
Bracket
|
|
| 14. |
VOE14529345
|
[2] |
Clip
|
|
| 15. |
VOE947107
|
[1] |
Flange screw
|
|
| 16. |
VOE946440
|
[2] |
Flange screw
|
|
| 17. |
VOE946441
|
[5] |
Flange screw
|
|
| 18. |
VOE946471
|
[1] |
Flange screw
|
|
| 19. |
VOE14500298
|
[1] |
Clip
|
|
