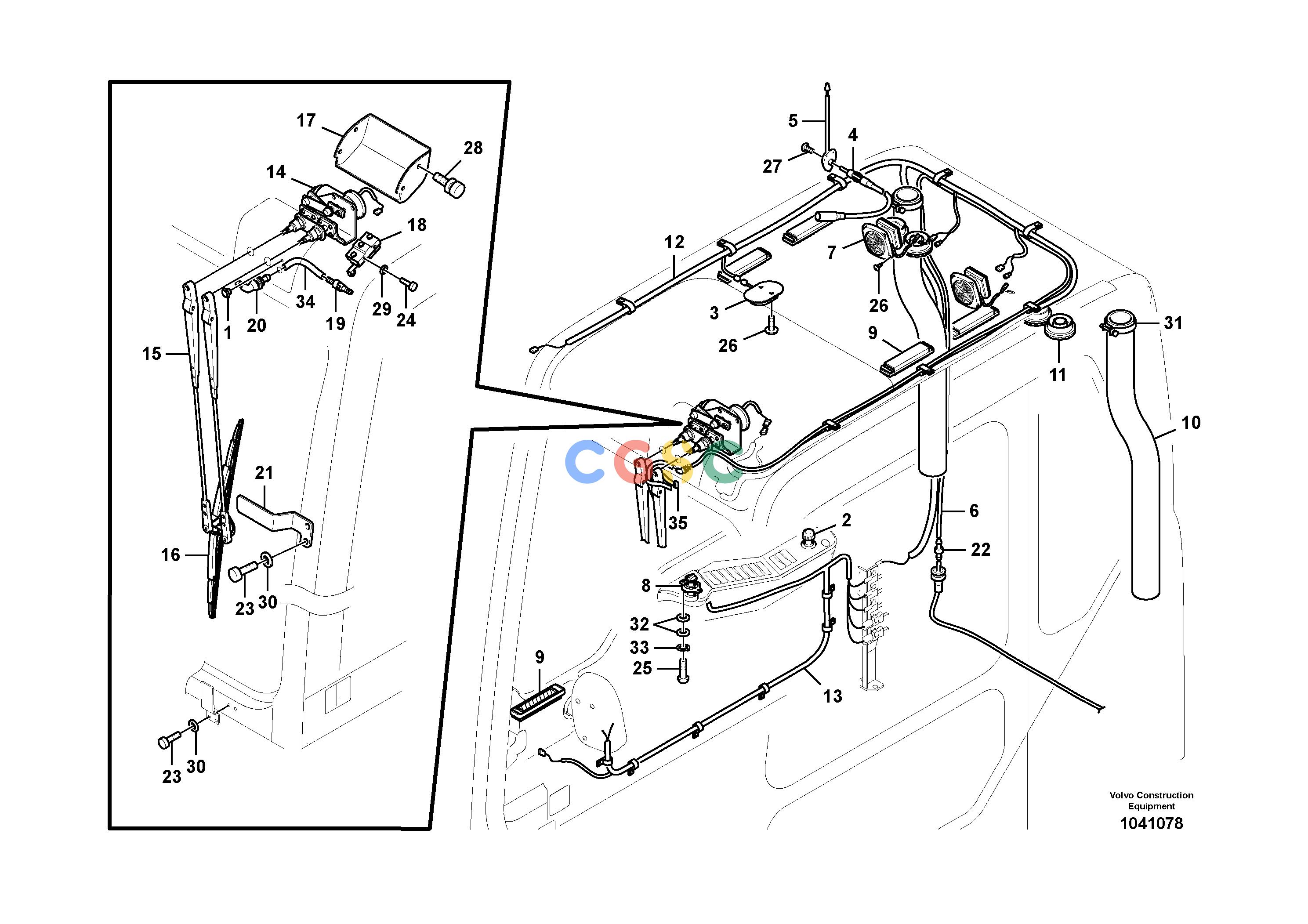

沃尔沃零件查询EC135B Cable harnesses, cabSER NO 20001-200798277142-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
964 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14523000
|
[1] |
Cap
|
|
| 2. |
VOE14529041
|
[1] |
Cigarette lighter
|
|
| 3. |
VOE14529090
|
[1] |
Interior lamp
|
|
| |
SA1122-01690
|
[2] |
Bulb
|
|
| 4. |
VOE14515593
|
[2] |
Cable
|
|
| 5. |
VOE14529181
|
[1] |
Antenna
|
|
| 6. |
VOE14880441
|
[1] |
Cooling hose
|
|
| 7. |
VOE14529230
|
[2] |
Loudspeaker
|
|
| 8. |
VOE14503037
|
[1] |
Selector
|
SER NO 20001-20032
|
| |
VOE14542152
|
[1] |
Selector unit
|
SER NO 20033-
|
| 9. |
VOE14517615
|
[5] |
Grating
|
|
| 10. |
VOE14505524
|
[2] |
Hose
|
|
| 11. |
VOE11104372
|
[4] |
Air outlet
|
|
| 12. |
VOE14587624
|
[1] |
Wiring Harness
|
|
| 13. |
VOE14524426
|
[1] |
Wire harness
|
SER NO 20001-20018
|
| |
VOE14644223
|
[1] |
Wiring harness
|
SER NO 20019-
|
| 14. |
VOE14530079
|
[1] |
Wiper motor
|
|
| 15. |
VOE14522412
|
[1] |
Wiper arm
|
|
| 16. |
VOE14508629
|
[1] |
Wiper blade
|
|
| 17. |
VOE14508633
|
[1] |
Cover
|
|
| 18. |
VOE14508635
|
[1] |
Switch
|
UPPER LIMIT
SE3602
|
| 19. |
VOE14508637
|
[1] |
Non-return valve
|
|
| 20. |
VOE14637451
|
[1] |
Elbow
|
|
| 21. |
VOE14511546
|
[1] |
Bracket
|
|
| 22. |
VOE14529354
|
[1] |
Hose connection
|
|
| 23. |
VOE965175
|
[4] |
Flange screw
|
|
| 24. |
SA9021-10405
|
[2] |
Cross recessed screw
|
|
| 25. |
VOE969404
|
[2] |
Six point socket screw
|
|
| 26. |
VOE969407
|
[11] |
Six point socket screw
|
|
| 27. |
SA9025-04003
|
[3] |
Cross recessed screw
|
|
| 28. |
VOE14880565
|
[4] |
Cross recessed screw
|
|
| 29. |
VOE14880426
|
[2] |
Washer
|
|
| 30. |
VOE955892
|
[4] |
Plain washer
|
|
| 31. |
SA9312-10350
|
[2] |
Hose clamp
|
|
| 32. |
VOE940090
|
[4] |
Plain washer
|
|
| 33. |
VOE955918
|
[2] |
Spring washer
|
|
| 34. |
VOE14881195
|
[1] |
Cooling hose
|
|
| 35. |
VOE14016673
|
[1] |
Strip clamp
|
|
