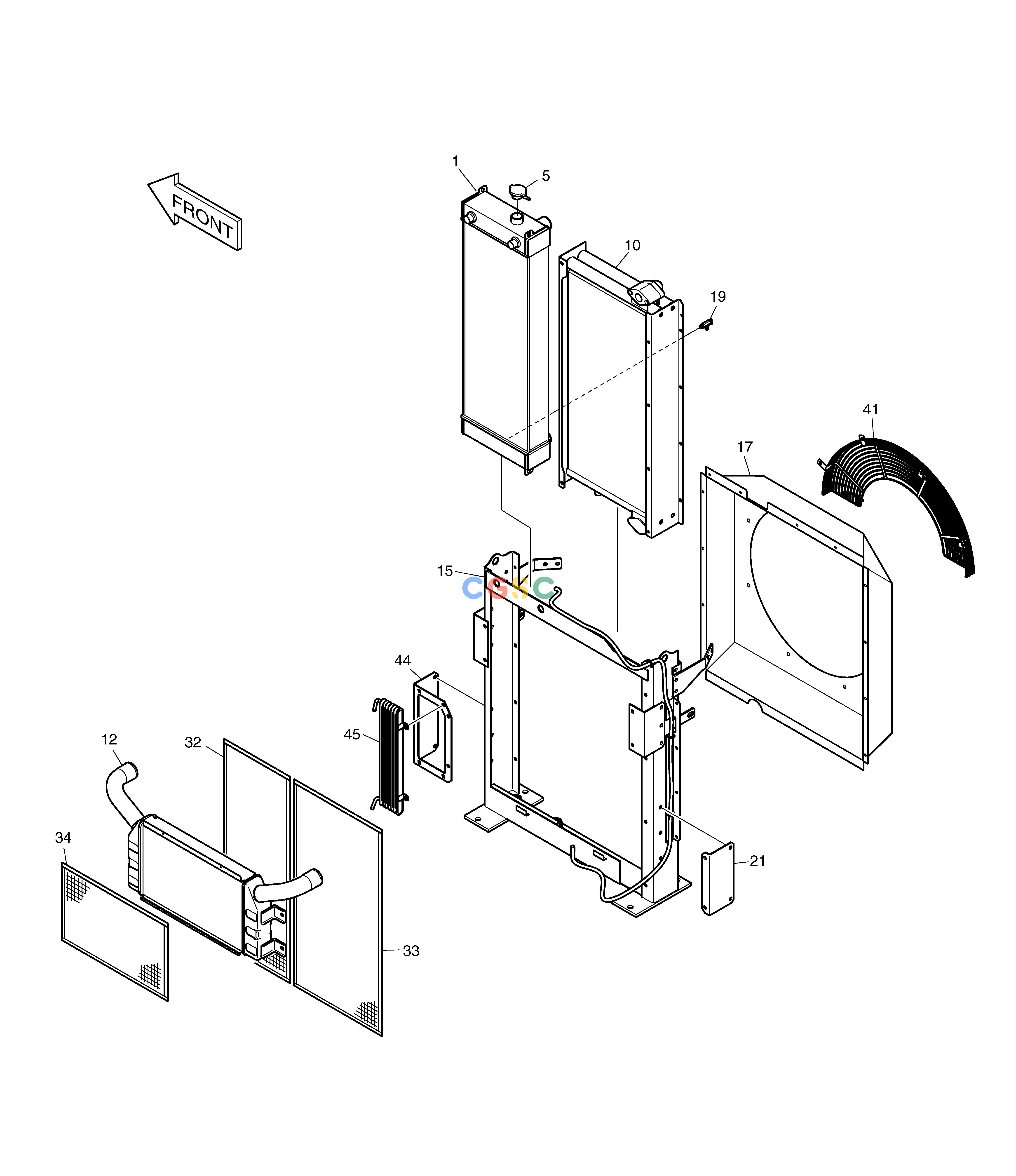

斗山零件查询RADIATOR DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1008289C
|
[1] |
RADIATOR ASS'Y
|
|
| -. |
440211-00587
|
[1] |
|
|
| 1. |
K1008126
|
[1] |
RADIATOR
|
440211-00823
|
| 1. |
440211-00823
|
[1] |
|
|
| 10. |
K1008128
|
[1] |
OIL COOLER
|
|
| 12. |
K1010767A
|
[1] |
CAC ASS'Y
|
|
| 15. |
NA00467
|
[1] |
FRAME
|
|
| 17. |
K1008129
|
[1] |
SHROUD
|
|
| 19. |
K9003878
|
[1] |
. COCK ASSY
|
|
| 21. |
K1015211
|
[1] |
BRACKET
|
|
| 32. |
K1008130
|
[1] |
WIRE NET
|
|
| 33. |
K1008131
|
[1] |
WIRE NET
|
|
| 34. |
K1010768
|
[1] |
WIRE NET(CAC)
|
|
| 41. |
K1008132
|
[1] |
GUARD;FAN(UPPER)
|
|
| 44. |
K1015212
|
[1] |
BRACKET
|
|
| 45. |
K1015210
|
[1] |
COOLER;FUEL
|
|
| 5. |
K1010769
|
[1] |
CAP
|
|
